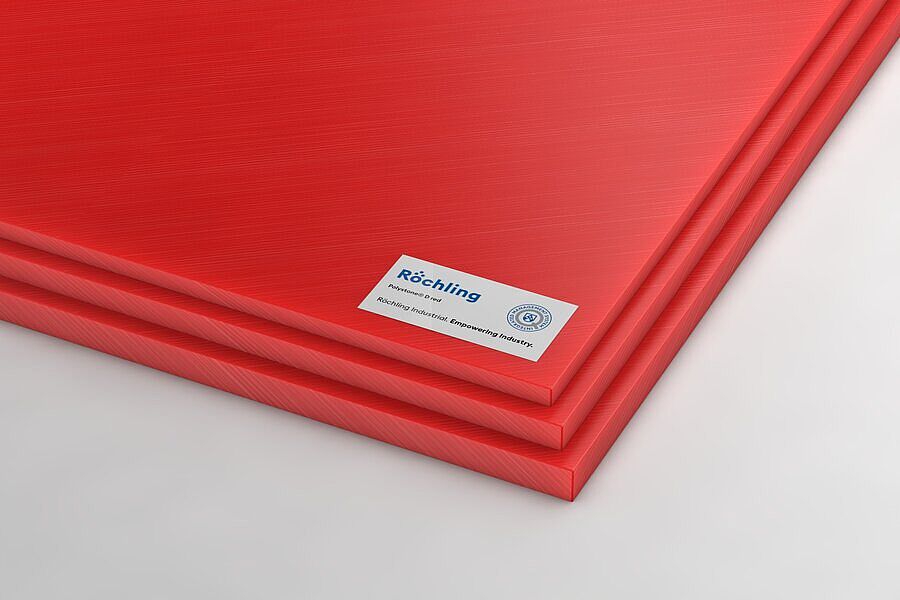

Polystone® D red

PE — PE-HD - PE 500

Polystone® D is a high-molecular polyethylene (PE-HMW/PE 500) which is outstanding for its good mechanical properties such as scratch- and cut resistance and excellent acid resistance. The material is used in various branches of industry such as the foodstuffs and bottling industry or in medical technology.

traffic red, similar RAL 3020signal red, similar RAL 3001
sheet
QR-Code

Characteristics

  • Good mechanical properties
  • Physiologically safe
  • Very wear, cutting and scratch resistant
  • Good sliding properties

Application Examples

Curved pool grating

Curved pool grating made of Polystone® D.

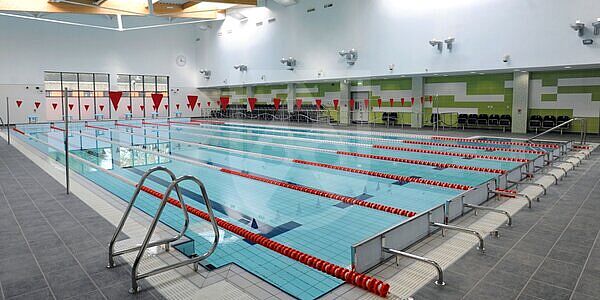

Straight pool grating

Straight pool grating installed in Harbourne Pool, Birmingham, UK.

Swimming pool gratings for overflow channels

Channel gratings made from Polystone® D and machined specifically to suit the shape of your tank. They meet DIN 51097 class C requirements, are available in many colours and boast high resistance to fracture and corrosion, giving them a long life.

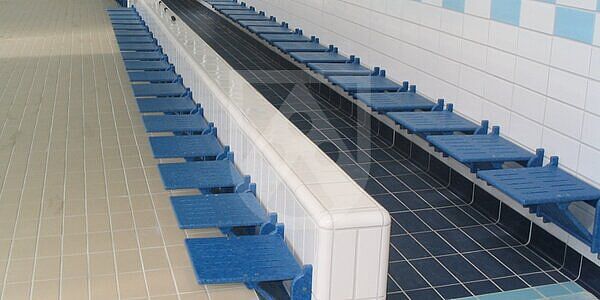

Seats and benches

Seats and benches made of Polystone® D and machined to your particular requirements offer high resistance to chlorine, are scratch-resistant and have a very long life. They are also available in many different colours, lending your swimming baths a look all of its own.

ROV components

Remote Offshore Vehicles (ROVs) are continuous being designed to operate in ever increasing depths. To aid this, we supply numerous corrosion resistant, key components used to assemble an ROV. This includes the naturally buoyant Polystone® P and Polystone® D used for the side frames. While electronics boxes made from Sustarin® C have replaced metallic components, thanks to the materials lower weight and corrosion resistance. With the same corrosion resistance, low weight and excellent impact resistance leading to the use of Sustamid® 6G for thruster nozzles and ROV buckets.

Variants

SKUNameTypeColorMeasurementsLengthWidthThicknessHeight
Not in stock (MOQ)
241012Polystone® D non-twisting red pressed sheet traffic red, similar RAL 30202.500 x 1.000 x 40 mm 2,500 mm 1,000 mm 40 mm
Not in stock (MOQ)
241014Polystone® D non-twisting red pressed sheet traffic red, similar RAL 30202.200 x 1.000 x 40 mm 2,200 mm 1,000 mm 40 mm
Not in stock (MOQ)
241026Polystone® D non-twisting red pressed sheet traffic red, similar RAL 30202.000 x 1.000 x 40 mm 2,000 mm 1,000 mm 40 mm
Not in stock (MOQ)
474977Polystone® D UV-stabilized red pressed sheet signal red, similar RAL 30016.000 x 1.250 (+/-30) x 12 mm 6,000 mm 1,250 mm 12 mm
Not in stock (MOQ)
475152Polystone® D UV-stabilized red pressed sheet signal red, similar RAL 30016.000 x 2.500 x 12 mm 6,000 mm 2,500 mm 12 mm

Technical Specifications Polystone® D red

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm3>0,95
Water absorptionDIN EN ISO 62%<0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa>27
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa>1200
Shore hardnessDIN EN ISO 868scale D65
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C130 ... 135
Thermal conductivityDIN 52612-1W / (m * K)0,40
Thermal capacityDIN 52612kJ / (kg * K)1,90
Coefficient of linear thermal expansionDIN 5375210-6 / K150 ... 230
Service temperature, long termAverage°C-100 … 80
Service temperature, short term (max.)Average°C80
Vicat softening temperatureDIN EN ISO 306, Vicat B°C79
Test MethodUnitGuideline Value
Dielectric constantIEC 602502,3
Dielectric dissipation factor (106 Hz)IEC 602500,0002
Volume resistivityDIN EN 62631-3-1Ohm * cm>1014
Surface resistivityDIN EN 62631-3-2Ohm>1014
Comparative tracking indexIEC 60112600
Dielectric strengthIEC 60243kV / mm>40
