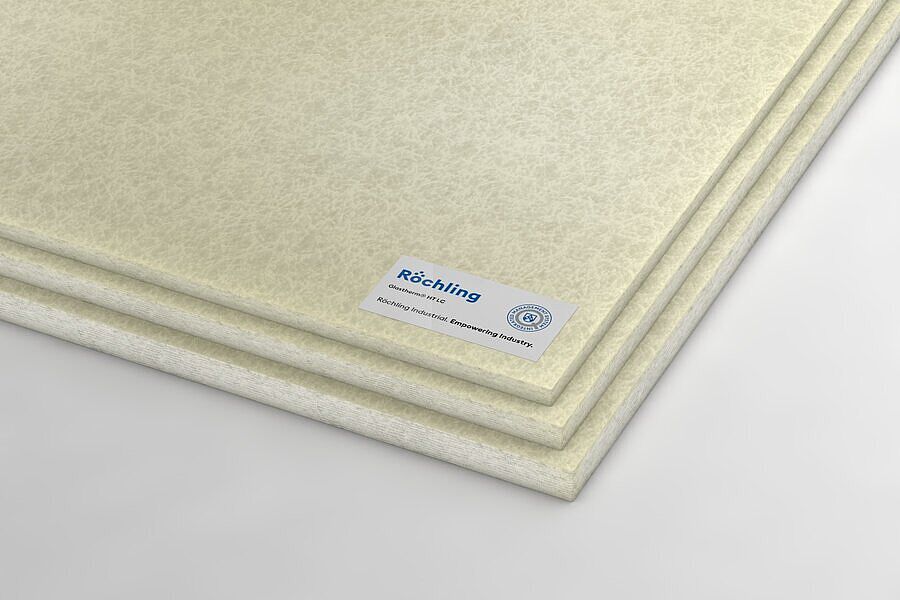

Glastherm® HT LC

GFK-UP

Glastherm® HT LC boasts extremely low thermal conductivity, providing excellent insulation properties even with very thin wall thicknesses. Glastherm® HT LC is free of asbestos and can be easily cut and adapted with standard metal tools.

  •  Maximum continuous operation temperature: 200 °C (392 °F)
  •  High compressive strength: 300 MPa
  •  Excellent thermal insulation
sheet
QR-Code

Characteristics

  • Fibre-reinforced composite material developed for applications in field of thermal insulation (max. continuous operating temperature 200°C)
  • Extremely low thermal conductivity and extremly high heat resistance

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
268372Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 42 (+/-1,55) mm 2 440 mm 1 220 mm 42 mm
No stock item (MOQ)
331556Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 52 (+/-1,75) mm 2 440 mm 1 220 mm 52 mm
No stock item (MOQ)
340636Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 16,5 (+/-1,1) mm 2 440 mm 1 220 mm 16,5 mm
No stock item (MOQ)
341087Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 26,5 (+/-1,45) mm 2 440 mm 1 220 mm 26,5 mm
No stock item (MOQ)
401720Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 64 (+/-1,75) mm 2 440 mm 1 220 mm 64 mm
No stock item (MOQ)
403323Glastherm® HT LC pressed sheet sheet 2.000 x 1.120 x 64 (+/-1,75) mm 2 000 mm 1 120 mm 64 mm
No stock item (MOQ)
420384Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 53 (+/-1,75) mm 2 440 mm 1 220 mm 53 mm
No stock item (MOQ)
420888Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 74 (+/-2,5) mm 2 440 mm 1 220 mm 74 mm
No stock item (MOQ)
420893Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 94 (+/-2,5) mm 2 440 mm 1 220 mm 94 mm
No stock item (MOQ)
456573Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 67 (+/-1,75) mm 2 440 mm 1 220 mm 67 mm
No stock item (MOQ)
458866Glastherm® HT LC pressed sheet sheet 2.440 x 1.220 x 38 (+/-1,55) mm 2 440 mm 1 220 mm 38 mm
No stock item (MOQ)
471016Glastherm® HT LC pressed sheet sheet 3.000 x 1.220 x 53 (+/-2,5) mm 3 000 mm 1 220 mm 53 mm

Technical Specifications Glastherm® HT LC

Test MethodUnitGuideline Value
DensityISO 1183g / cm31,5
Flexural strength ISO 178MPa170
Modulus of elasticity in flexion ISO 178MPa10000
Compressive strength 1)ISO 604MPa300
Compressive strength 1) +200°CISO 604MPa90
Impact strength (Charpy)ISO 179kJ / m280
Test MethodUnitGuideline Value
Thermal conductivity 2)W / (m * K)0,18
Coefficient of linear expansion IITMA (Mettler)10-6 x K-1 20
Max. continuous operating temperature°C200
Test MethodUnitGuideline Value
Water absorption (4mm thickness)ISO 62%0,2
