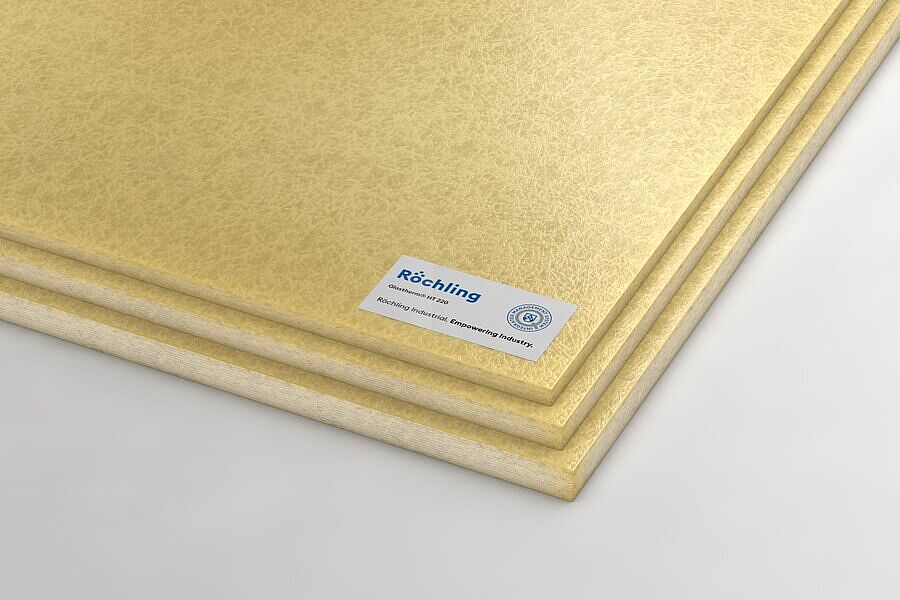

Glastherm® HT 220

GFK-EP

Glastherm® HT 220 is suitable for processes with a continuous operating temperature of up to 220 °C (428 °F) and combines a high level of heat insulation with a very high compressive strength in high temperatures. Glastherm® HT 220 is free of asbestos and can be easily cut and adapted with standard metal tools.

  •  Maximum continuous operation temperature: 220 °C (428 °F)
  •  Very high compressive strength: 360 MPa (at 200 °C)
  •  Good thermal insulation
sheet
QR-Code

Characteristics

  • Fibre-reinforced composite material developed for applications in field of thermal insulation (max. continuous operating temperature 220°C)
  • Low thermal conductivity

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
270973Glastherm® HT 220 pressed sheet sheet 2.440 x 1.220 x 32 (+/-1,5) mm 2 440 mm 1 220 mm 32 mm
No stock item (MOQ)
285590Glastherm® HT 220 pressed sheet sheet 2.440 x 1.220 x 22 (+/-1,4) mm 2 440 mm 1 220 mm 22 mm
No stock item (MOQ)
288785Glastherm® HT 220 pressed sheet sheet 2.440 x 1.220 x 9 (+/-0,7) mm 2 440 mm 1 220 mm 9 mm
No stock item (MOQ)
288786Glastherm® HT 220 pressed sheet sheet 2.440 x 1.220 x 11 (+/-0,9) mm 2 440 mm 1 220 mm 11 mm
No stock item (MOQ)
299833Glastherm® HT 220 pressed sheet sheet 1.900 x 1.000 x 11 (+/-0,9) mm 1 900 mm 1 000 mm 11 mm
No stock item (MOQ)
341384Glastherm® HT 220 pressed sheet sheet 2.440 x 1.220 x 43 (+/-1,65) mm 2 440 mm 1 220 mm 43 mm
No stock item (MOQ)
353042Glastherm® HT 220 pressed sheet sheet 1.900 x 1.000 x 73 (+/-2,2) mm 1 900 mm 1 000 mm 73 mm
Stock item (no MOQ)
415641Glastherm® HT 220 pressed sheet sheet 2.440 x 1.220 x 20 (+/-1,4) mm 2 440 mm 1 220 mm 20 mm
Stock item (no MOQ)
415643Glastherm® HT 220 pressed sheet sheet 2.440 x 1.220 x 25 (+/-1,45) mm 2 440 mm 1 220 mm 25 mm
Stock item (no MOQ)
441358Glastherm® HT 220 pressed sheet sheet 1.900 x 1.000 x 20 (+/-1,3) mm 1 900 mm 1 000 mm 20 mm
Stock item (no MOQ)
449068Glastherm® HT 220 pressed sheet sheet 1.900 x 1.000 x 22 (+/-1,4) mm 1 900 mm 1 000 mm 22 mm

Technical Specifications Glastherm® HT 220

Test MethodUnitGuideline Value
DensityISO 1183g / cm31,85
Flexural strength ISO 178MPa360
Modulus of elasticity in flexion ISO 178MPa18000
Compressive strength 1)ISO 604MPa500
Compressive strength 1) +200°CISO 604MPa360
Tensile strength IIISO 527MPa280
Impact strength (Charpy)ISO 179kJ / m2150
Splitting force IIDIN 53463N4000
Test MethodUnitGuideline Value
Thermal conductivity 2)W / (m * K) 0,25
Coefficient of linear expansion IITMA (Mettler)10-6 x K-1 10 - 15
Max. continuous operating temperature°C220
Test MethodUnitGuideline Value
Water absorption (4mm thickness)ISO 62%0,1
