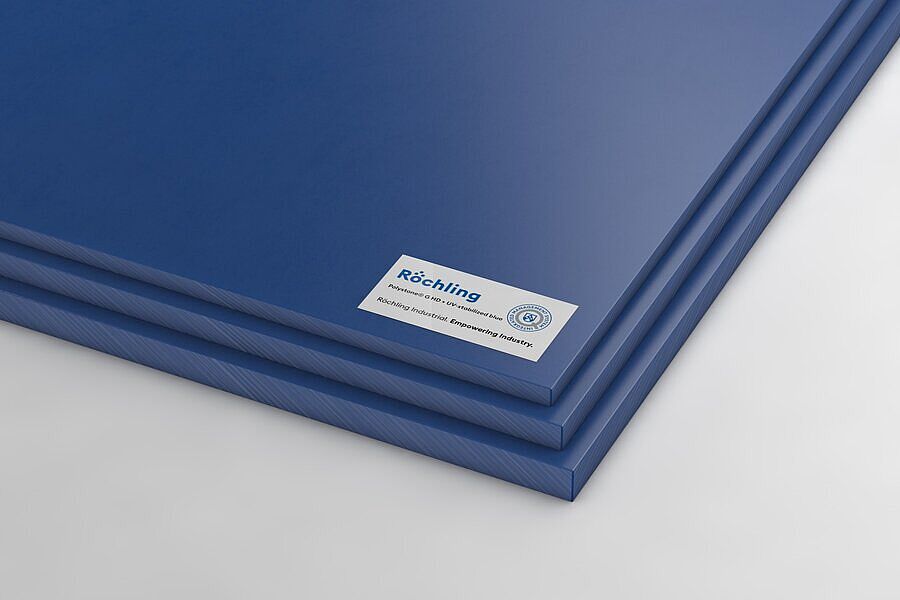

Polystone® G HD + UV-stabilized blue

PE — PE-HD - PE 300

Polystone® G is a high density polyethylene (PE-HD/PE 300). It is an easily processed material for numerous applications, particularly in chemical equipment and container construction.

light blue, similar RAL 5012sky blue, similar RAL 5015turquoise blue, similar RAL 5018light blue
All colors
welding rodsheet
QR-Code

Characteristics

  • Very good welding and processing properties
  • Chemical resistance
  • UV-resistant

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
273469Polystone® G HD + UV-stabilized blue extruded welding rod welding rod light blue, similar RAL 5012Ø 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
276052Polystone® G HD + UV-stabilized blue extruded welding rod welding rod sky blue, similar RAL 5015Ø 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
315069Polystone® G HD + UV-stabilized blue extruded welding rod welding rod light blue, similar RAL 5012Ø 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
355277Polystone® G HD + UV-stabilized blue extruded welding rod welding rod turquoise blue, similar RAL 5018Ø 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
373714Polystone® G HD + UV-stabilized blue extruded welding rod welding rod sky blue, similar RAL 5015Ø 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
402039Polystone® G HD + UV-stabilized blue extruded sheet sheet sky blue, similar RAL 50153.000 x 1.500 x 10 mm 3,000 mm 1,500 mm 10 mm
No stock item (MOQ)
404861Polystone® G HD + UV-stabilized blue extruded sheet sheet sky blue, similar RAL 50152.000 x 2.000 x 8 mm 2,000 mm 2,000 mm 8 mm
No stock item (MOQ)
404863Polystone® G HD + UV-stabilized blue extruded sheet sheet sky blue, similar RAL 50154.000 x 2.000 x 15 mm 4,000 mm 2,000 mm 15 mm
No stock item (MOQ)
404864Polystone® G HD + UV-stabilized blue extruded sheet sheet sky blue, similar RAL 50152.000 x 2.000 x 15 mm 2,000 mm 2,000 mm 15 mm
No stock item (MOQ)
411221Polystone® G HD + UV-stabilized blue extruded welding rod welding rod sky blue, similar RAL 5015Ø 5 (-0,4/+0,2) mm 5 mm
No stock item (MOQ)
414951Polystone® G HD + UV-stabilized blue extruded sheet sheet turquoise blue, similar RAL 50184.000 x 2.000 x 10 mm 4,000 mm 2,000 mm 10 mm
No stock item (MOQ)
428532Polystone® G HD + UV-stabilized blue extruded welding rod welding rod light blueØ 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
445890Polystone® G HD + UV-stabilized blue extruded welding rod welding rod gentian blue, similar RAL 5010Ø 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
447182Polystone® G HD + UV-stabilized blue extruded sheet sheet signal blue, similar RAL 50053.000 x 1.500 x 18 mm 3,000 mm 1,500 mm 18 mm
No stock item (MOQ)
450152Polystone® G HD + UV-stabilized blue extruded sheet sheet gentian blue, similar RAL 50103.000 x 2.000 x 20 mm 3,000 mm 2,000 mm 20 mm
No stock item (MOQ)
476500Polystone® G HD + UV-stabilized blue extruded sheet sheet signal blue, similar RAL 50054.000 x 2.000 x 10 mm 4,000 mm 2,000 mm 10 mm

Technical Specifications Polystone® G HD + UV-stabilized blue

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm3>0,95
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Flammability (Thickness 3 - 10 mm)DIN 4102B2
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa>22
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa>1100
Notched impact strengthDIN EN ISO 179kJ / m2>10
Shore hardnessDIN EN ISO 868scale D>60
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C130 ... 135
Thermal conductivityDIN 52612-1W / (m * K)0,40
Thermal capacityDIN 52612kJ / (kg * K)1,90
Coefficient of linear thermal expansionDIN 5375210-6 / K150 ... 230
Service temperature, long termAverage°C-50 … 80
Service temperature, short term (max.)Average°C100
Vicat softening temperatureDIN EN ISO 306, Vicat B°C67
Test MethodUnitGuideline Value
Dielectric constantIEC 602502,4
Dielectric dissipation factor (106 Hz)IEC 602500,0004
Volume resistivityDIN EN 62631-3-1Ω * cm>1014
Surface resistivityDIN EN 62631-3-2>1014
Comparative tracking indexIEC 60112600
Dielectric strengthIEC 60243kV / mm>40
