Sustarin® C white

POM-C

cream, similar RAL 9001traffic white, similar RAL 9016white, similar RAL 9010signal white, similar RAL 9003

rodsheet

Characteristics

Chemical resistance
Low moisture absorption
High abrasion resistance
ideal combination of tensile strength, stiffness and impact strength
Low creep tendency
Good machinability
favourable electric and dielectric behaviour
Good dimensional stability
Good sliding properties

Industries

Application Examples

ROV components

Remote Offshore Vehicles (ROVs) are continuous being designed to operate in ever increasing depths. To aid this, we supply numerous corrosion resistant, key components used to assemble an ROV. This includes the naturally buoyant Polystone^® P and Polystone^®D used for the side frames. While electronics boxes made from Sustarin^® C have replaced metallic components, thanks to the materials lower weight and corrosion resistance. With the same corrosion resistance, low weight and excellent impact resistance leading to the use of Sustamid^® 6G for thruster nozzles and ROV buckets.

Moulding drum for bread rolls

Röchling materials contribute to the efficiency of processes in the industrial production of bread rolls: made of Sustarin^® C, the chamber drum rotates in the opposite direction of the moulding drum, thereby forming the dough pieces.

Subsea connectors

As subsea equipment becomes more complicated, it is imperative that connectors both electrical & communication are machined and produced using material of the highest quality. SustaPEEK^®, SustaPEI^® and Sustarin^® C are the optimum solution with good electrical resistance, low moisture absorption, dimensional stability and impact resistance for Dry-Mate and Wet-Met systems.

Subsea (Christmas) tree end caps

During drilling the delicate wellhead is covered by a removal cap prior to installation/after removal of the subsea tree. As these are installed by ROV, weight is of a key concern. With thermoplastics like Sustarin^® C, SustaPVDF^® and SustaPEEK^® offering significant weight reduction over traditional metallic components. Further benefits include the natural corrosion resistance of the material, as well as the thermal insulation properties and chemical resistance to the anti-fouling fluid.

Rods

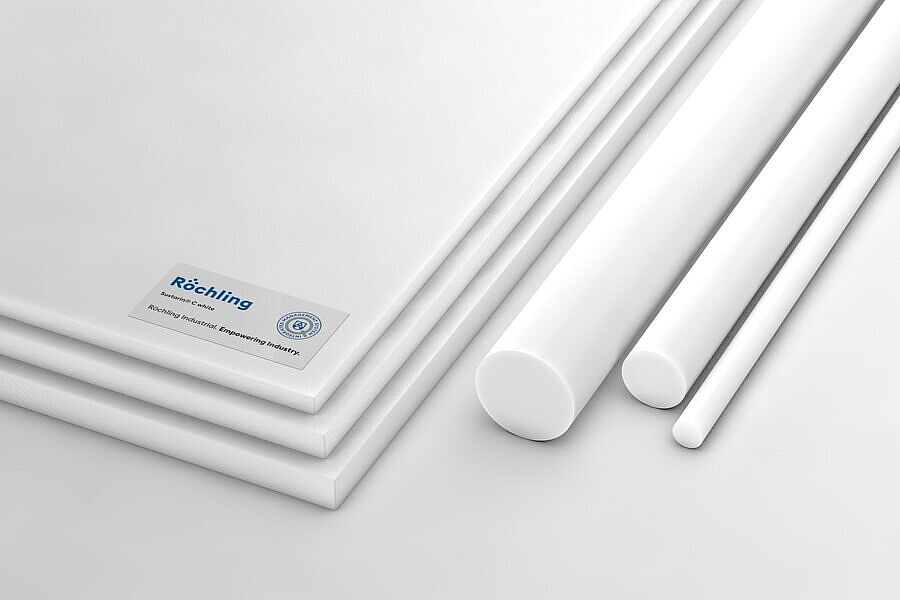

Rods made of Sustarin^® C.

ESD and anti-static products for tablet manufacturing

To meet the challenge that the customer required antistatic materials for the manufacture of powdered pharmaceutical products, we selected specific materials to fulfil these requirements. We used Polystone® G EL for glove ports, Polystone® M AST for chutes and tubes, Sustarin® C ESD for manifolds and Fibracon® PTFE AS for seals and flexible connections.
These ESD and AS materials play a crucial role in dissolving static build-up caused by the movement of powders during the manufacturing process. This ensures the integrity and safety of the products throughout the manufacturing process. In addition, our materials are able to cope with a wide range of temperatures and cleaning agents, which emphasises their versatility in pharmaceutical production environments.

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	600711	Sustarin® C white extruded	rod	rod	cream, similar RAL 9001	Ø 160 x 3000 mm	3,000 mm		160 mm
No stock item (MOQ)	600873	Sustarin® C white extruded	rod	rod	traffic white, similar RAL 9016	Ø 10 x 3000 mm	3,000 mm		10 mm
No stock item (MOQ)	925314	Sustarin® C white extruded	rod	rod	white, similar RAL 9010	Ø 40 x 3000 mm	3,000 mm		40 mm
No stock item (MOQ)	925315	Sustarin® C white extruded	rod	rod	white, similar RAL 9010	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	929797	Sustarin® C white extruded	sheet	sheet	signal white, similar RAL 9003	16 x 1000 x 2000 mm	2,000 mm	1,000 mm	16 mm
No stock item (MOQ)	929798	Sustarin® C white extruded	sheet	sheet	signal white, similar RAL 9003	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	929799	Sustarin® C white extruded	sheet	sheet	signal white, similar RAL 9003	25 x 1000 x 2000 mm	2,000 mm	1,000 mm	25 mm
No stock item (MOQ)	930277	Sustarin® C white extruded	sheet	sheet	signal white, similar RAL 9003	10 x 1000 x 2000 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	930278	Sustarin® C white extruded	sheet	sheet	signal white, similar RAL 9003	12 x 1000 x 2000 mm	2,000 mm	1,000 mm	12 mm
No stock item (MOQ)	931018	Sustarin® C white extruded	sheet	sheet	signal white, similar RAL 9003	12 x 1000 x 1000 mm	1,000 mm	1,000 mm	12 mm
No stock item (MOQ)	933780	Sustarin® C white extruded	rod	rod	white, similar RAL 9010	Ø 25 x 3000 mm	3,000 mm		25 mm

Technical Specifications Sustarin® C white

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,41
Water absorption	DIN EN ISO 62	%	0,2
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB / HB

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	67
Elongation at break	DIN EN ISO 527	%	30
Tensile modulus of elasticity	DIN EN ISO 527	MPa	2800
Notched impact strength	DIN EN ISO 179	kJ / m²	6
Shore hardness	DIN EN ISO 868	scale D	81

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	165
Thermal conductivity	DIN 52612-1	W / (m * K)	0,31
Thermal capacity	DIN 52612	kJ / (kg * K)	1,50
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	110
Service temperature, long term	Average	°C	-50 … 100
Service temperature, short term (max.)	Average	°C	140
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	110

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,8
Dielectric dissipation factor (50 Hz)	IEC 60250		0,002
Volume resistivity	DIN EN 62631-3-1	Ohm * cm	10¹³
Surface resistivity	DIN EN 62631-3-2	Ohm	10¹³
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	40
