Sustarin® C blue

POM-C

ultramarine blue, similar RAL 5002brilliant blue, similar RAL 5007sky blue, similar RAL 5015signal blue, similar RAL 5005
rodsheet
QR-Code

Characteristics

  • Chemical resistance
  • Low moisture absorption
  • High abrasion resistance
  • Low creep tendency
  • Good machinability
  • favourable electric and dielectric behaviour
  • Good dimensional stability
  • Good sliding properties

Application Examples

ESD and anti-static products for tablet manufacturing

Challenge: Customer required anti-static materials for products involved in manufacture of Drugs from powder. Materials used: Polystone® G EL used for Glove Ports, Polystone® M AST used for chutes and tubes, Sustarin® C ESD used for manifolds, Fibracon® PTFE AS used for seals and flexible connections. ESD and AS materials dissipate static build up generated by the movement of the powders. Wide range of temeratures and cleaning agents.

ROV components

Remote Offshore Vehicles (ROVs) are continuous being designed to operate in ever increasing depths. To aid this, we supply numerous corrosion resistant, key components used to assemble an ROV. This includes the naturally buoyant Polystone® P and Polystone® D used for the side frames. While electronics boxes made from Sustarin® C have replaced metallic components, thanks to the materials lower weight and corrosion resistance. With the same corrosion resistance, low weight and excellent impact resistance leading to the use of Sustamid® 6G for thruster nozzles and ROV buckets.

Moulding drum for bread rolls

Röchling materials contribute to the efficiency of processes in the industrial production of bread rolls: made of Sustarin® C, the chamber drum rotates in the opposite direction of the moulding drum, thereby forming the dough pieces.

Subsea connectors

As subsea equipment becomes more complicated, it is imperative that connectors both electrical & communication are machined and produced using material of the highest quality. SustaPEEK®, SustaPEI® and Sustarin® C are the optimum solution with good electrical resistance, low moisture absorption, dimensional stability and impact resistance for Dry-Mate and Wet-Met systems.

Subsea (Christmas) tree end caps

During drilling the delicate wellhead is covered by a removal cap prior to installation/after removal of the subsea tree. As these are installed by ROV, weight is of a key concern. With thermoplastics like Sustarin® C, SustaPVDF® and SustaPEEK® offering significant weight reduction over traditional metallic components. Further benefits include the natural corrosion resistance of the material, as well as the thermal insulation properties and chemical resistance to the anti-fouling fluid.

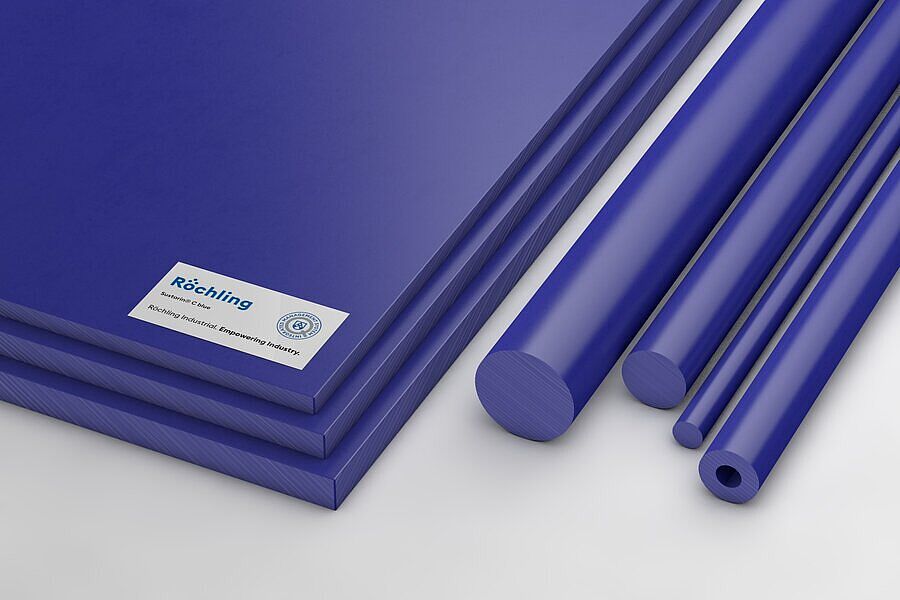

Rods

Rods made of Sustarin® C.

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
141416Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 30 x 3000 mm 3,000 mm 30 mm
No stock item (MOQ)
141418Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 40 x 3000 mm 3,000 mm 40 mm
No stock item (MOQ)
141420Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 50 x 3000 mm 3,000 mm 50 mm
No stock item (MOQ)
141422Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 60 x 3000 mm 3,000 mm 60 mm
No stock item (MOQ)
600670Sustarin® C blue extruded sheet sheet brilliant blue, similar RAL 500740 x 620 x 1000 mm 1,000 mm 620 mm 40 mm
No stock item (MOQ)
600876Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 10 x 3000 mm 3,000 mm 10 mm
No stock item (MOQ)
601949Sustarin® C blue extruded sheet sheet ultramarine blue, similar RAL 5002120 x 620 x 1000 mm 1,000 mm 620 mm 120 mm
No stock item (MOQ)
608825Sustarin® C blue extruded sheet sheet sky blue, similar RAL 501520 x 1000 x 3000 mm 3,000 mm 1,000 mm 20 mm
No stock item (MOQ)
608827Sustarin® C blue extruded sheet sheet sky blue, similar RAL 501530 x 1000 x 3000 mm 3,000 mm 1,000 mm 30 mm
No stock item (MOQ)
620039Sustarin® C blue extruded rod rod signal blue, similar RAL 5005Ø 28 x 3000 mm 3,000 mm 28 mm
No stock item (MOQ)
690158Sustarin® C blue extruded sheet sheet ultramarine blue, similar RAL 500235 x 620 x 2000 mm 2,000 mm 620 mm 35 mm
No stock item (MOQ)
693823Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 20 x 3000 mm 3,000 mm 20 mm
No stock item (MOQ)
730288Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 30 x 3000 mm 3,000 mm 30 mm
No stock item (MOQ)
750961Sustarin® C blue extruded sheet sheet sky blue, similar RAL 501520 x 1000 x 1000 mm 1,000 mm 1,000 mm 20 mm
No stock item (MOQ)
752054Sustarin® C blue extruded sheet sheet sky blue, similar RAL 501530 x 1000 x 2000 mm 2,000 mm 1,000 mm 30 mm
No stock item (MOQ)
757162Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 25 x 3000 mm 3,000 mm 25 mm
No stock item (MOQ)
800553Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 40 x 1000 mm 1,000 mm 40 mm
No stock item (MOQ)
803920Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 50 x 1000 mm 1,000 mm 50 mm
No stock item (MOQ)
809779Sustarin® C blue extruded rod rod signal blue, similar RAL 5005Ø 28 x 1000 mm 1,000 mm 28 mm
No stock item (MOQ)
809952Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 28 x 3000 mm 3,000 mm 28 mm
No stock item (MOQ)
809953Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 32 x 3000 mm 3,000 mm 32 mm
No stock item (MOQ)
921819Sustarin® C blue extruded sheet sheet ultramarine blue, similar RAL 500230 x 620 x 1000 mm 1,000 mm 620 mm 30 mm
No stock item (MOQ)
923063Sustarin® C blue extruded sheet sheet ultramarine blue, similar RAL 5002120 x 620 x 3000 mm 3,000 mm 620 mm 120 mm
No stock item (MOQ)
925840Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 55 x 1000 mm 1,000 mm 55 mm
No stock item (MOQ)
925841Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 55 x 3000 mm 3,000 mm 55 mm
No stock item (MOQ)
927712Sustarin® C blue extruded sheet sheet ultramarine blue, similar RAL 500235 x 1000 x 2000 mm 2,000 mm 1,000 mm 35 mm
No stock item (MOQ)
932353Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 32 x 1000 mm 1,000 mm 32 mm
No stock item (MOQ)
933319Sustarin® C blue extruded rod rod sky blue, similar RAL 5015Ø 80 x 3000 mm 3,000 mm 80 mm
No stock item (MOQ)
933540Sustarin® C blue extruded rod rod ultramarine blue, similar RAL 5002Ø 28 x 1000 mm 1,000 mm 28 mm
No stock item (MOQ)
933644Sustarin® C blue extruded rod rod sky blue, similar RAL 5015Ø 80 x 1000 mm 1,000 mm 80 mm

Technical Specifications Sustarin® C blue extruded

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,41
Water absorptionDIN EN ISO 62%0,2
Flammability (Thickness 3 mm / 6 mm)UL 94HB / HB
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa67
Elongation at breakDIN EN ISO 527%30
Tensile modulus of elasticityDIN EN ISO 527MPa2800
Notched impact strengthDIN EN ISO 179kJ / m26
Shore hardnessDIN EN ISO 868scale D81
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C165
Thermal conductivityDIN 52612-1W / (m * K)0,31
Thermal capacityDIN 52612kJ / (kg * K)1,50
Coefficient of linear thermal expansionDIN 5375210-6 / K110
Service temperature, long termAverage°C-50 … 100
Service temperature, short term (max.)Average°C140
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C110
Test MethodUnitGuideline Value
Dielectric constantIEC 602503,8
Dielectric dissipation factor (50 Hz)IEC 602500,002
Volume resistivityDIN EN 62631-3-1Ohm * cm1013
Surface resistivityDIN EN 62631-3-2Ohm1013
Comparative tracking indexIEC 60112600
Dielectric strengthIEC 60243kV / mm40
