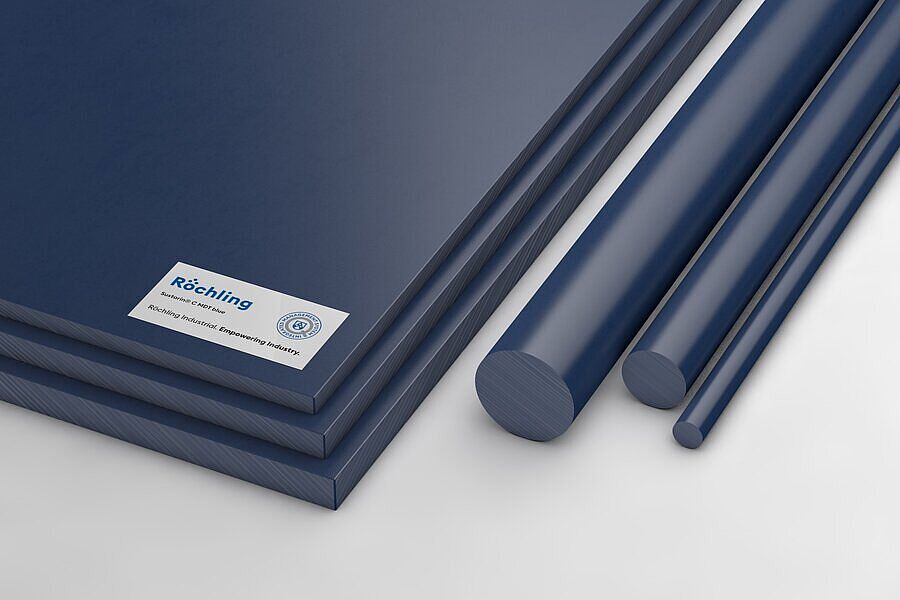

Sustarin® C MDT modrý
POM-C
The metal detectable Polyacetal
Sustarin® C MDT is equipped with a metal-detectable filler and can therefore be recognised at any time by appropriate metal detectors, which are used especially in the food industry to check for unwanted foreign bodies. In addition, the blue colouring ensures the best possible optical detection in foodstuffs. The material fulfils the strict requirements of EU Regulation 10/2011 regarding the migration of undesirable ingredients into food.
blue
sheetrod
Characteristics
- Metal detectable
- Standard colour: blue
- High hardness
- High rigidity
- Low moisture absorption
- High abrasion resistance
- High mechanical strength
- High stiffness
- Good impact strength
- Low creep tendency
- Good machinability
- Good sliding properties
Industries
Pečivo a sladkosti- Zpracování masa, ryb a drůbeže
- Potravinářský průmysl
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 612975 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 12 x 620 x 3000 mm | 3 000 mm | 620 mm | 12 mm | ||
| No stock item (MOQ) | 660943 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 20 x 620 x 1000 mm | 1 000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 660944 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 20 x 620 x 3000 mm | 3 000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 750081 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 25 x 620 x 3000 mm | 3 000 mm | 620 mm | 25 mm | ||
| No stock item (MOQ) | 762669 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 70 x 3000 mm | 3 000 mm | 70 mm | |||
| No stock item (MOQ) | 762672 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 70 x 1000 mm | 1 000 mm | 70 mm | |||
| No stock item (MOQ) | 808357 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 30 x 620 x 1000 mm | 1 000 mm | 620 mm | 30 mm | ||
| No stock item (MOQ) | 808441 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 60 x 1000 mm | 1 000 mm | 60 mm | |||
| No stock item (MOQ) | 808512 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 30 x 620 x 3000 mm | 3 000 mm | 620 mm | 30 mm | ||
| No stock item (MOQ) | 921203 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 60 x 3000 mm | 3 000 mm | 60 mm | |||
| No stock item (MOQ) | 924541 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 90 x 3000 mm | 3 000 mm | 90 mm | |||
| No stock item (MOQ) | 924542 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 90 x 1000 mm | 1 000 mm | 90 mm | |||
| No stock item (MOQ) | 924635 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 40 x 3000 mm | 3 000 mm | 40 mm | |||
| No stock item (MOQ) | 924636 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 40 x 1000 mm | 1 000 mm | 40 mm |
Technical Specifications Sustarin® C MDT blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hustota | DIN EN ISO 1183-1 | g / cm3 | 1,53 |
| Absorpce vody | DIN EN ISO 62 | % | 0,2 |
| Hořlavost (tloušťka 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Mez kluzu | DIN EN ISO 527 | MPa | 65 |
| Prodloužení při přetržení | DIN EN ISO 527 | % | 25 |
| Modul pružnosti v tahu | DIN EN ISO 527 | MPa | 3000 |
| Vrubová houževnatost | DIN EN ISO 179 | kJ / m2 | 5 |
| Tvrdost Shore | DIN EN ISO 868 | scale D | 82 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Teplota tání | ISO 11357-3 | °C | 168 |
| Koeficient lineární teplotní roztažnosti | DIN 53752 | 10-6 / K | 120 |
| Provozní teplota dlouhodobá | Průměr | °C | -20 … 90 |
| Provozní teplota krátkodobá (max.) | Průměr | °C | 140 |
| Teplota tepelné deformace | DIN EN ISO 75, Verf. A, HDT | °C | 100 |
