Sustarin® C zelená
POM-C
The construction material for many applications
Sustarin® C is the brand name for semi-finished products and profiles made from polyacetal copolymer. The special feature of Sustarin® C is the ideal combination of strength, rigidity, and toughness, which is due to the structure of the product. Due to its high crystallinity, Sustarin® C is stiffer and stronger than other thermoplastics, especially in the temperature range of -50°C bis +100°C.
turquoise green, similar RAL 6016yellow green, similar RAL 6018greentraffic green, similar RAL 6024

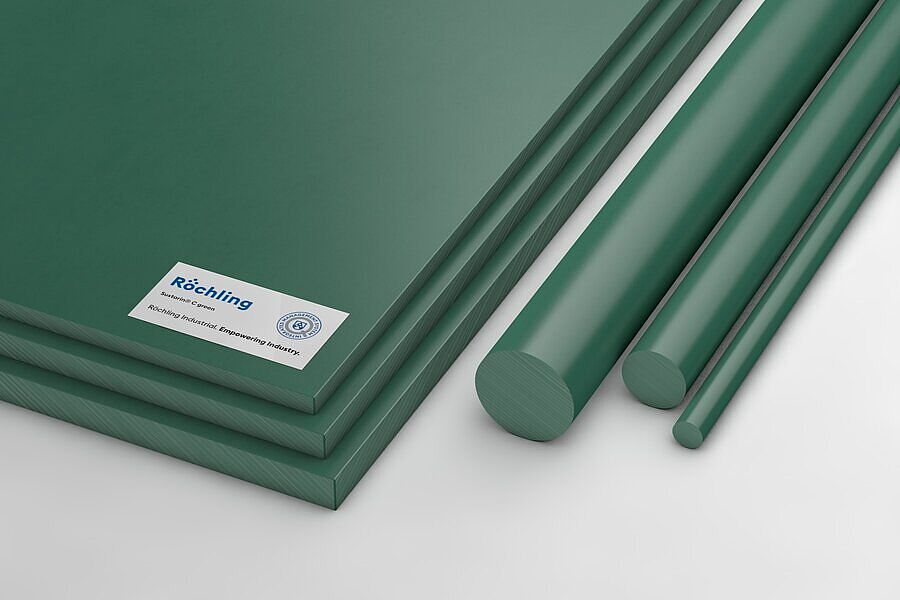

rodsheet
Characteristics
- Chemical resistant
- Low moisture absorption
- High abrasion resistance
- High tensile strength
- High stiffness
- Good impact strength
- Low creep tendency
- Good machinability
- Good electrical properties
- Good dielectric properties
- Good dimensional stability
- Good sliding properties
Industries
Potravinářský průmysl- Zpracování masa, ryb a drůbeže
- Pečivo a sladkosti
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 141459 | Sustarin® C green extruded | rod | rod | turquoise green, similar RAL 6016 | Ø 40 x 3000 mm | 3 000 mm | 40 mm | |||
| No stock item (MOQ) | 600870 | Sustarin® C green extruded | rod | rod | yellow green, similar RAL 6018 | Ø 10 x 3000 mm | 3 000 mm | 10 mm | |||
| No stock item (MOQ) | 600871 | Sustarin® C green extruded | rod | rod | green | Ø 10 x 3000 mm | 3 000 mm | 10 mm | |||
| No stock item (MOQ) | 627313 | Sustarin® C green extruded | sheet | sheet | turquoise green, similar RAL 6016 | 60 x 620 x 2000 mm | 2 000 mm | 620 mm | 60 mm | ||
| No stock item (MOQ) | 646004 | Sustarin® C green extruded | sheet | sheet | turquoise green, similar RAL 6016 | 30 x 620 x 2000 mm | 2 000 mm | 620 mm | 30 mm | ||
| No stock item (MOQ) | 646676 | Sustarin® C green extruded | sheet | sheet | turquoise green, similar RAL 6016 | 40 x 620 x 2000 mm | 2 000 mm | 620 mm | 40 mm | ||
| No stock item (MOQ) | 720945 | Sustarin® C green extruded | rod | rod | turquoise green, similar RAL 6016 | Ø 75 x 3000 mm | 3 000 mm | 75 mm | |||
| No stock item (MOQ) | 720974 | Sustarin® C green extruded | rod | rod | turquoise green, similar RAL 6016 | Ø 75 x 1000 mm | 1 000 mm | 75 mm | |||
| No stock item (MOQ) | 722641 | Sustarin® C green extruded | sheet | sheet | turquoise green, similar RAL 6016 | 30 x 620 x 3000 mm | 3 000 mm | 620 mm | 30 mm | ||
| No stock item (MOQ) | 751111 | Sustarin® C green extruded | sheet | sheet | turquoise green, similar RAL 6016 | 60 x 620 x 1000 mm | 1 000 mm | 620 mm | 60 mm | ||
| No stock item (MOQ) | 755978 | Sustarin® C green extruded | rod | rod | turquoise green, similar RAL 6016 | Ø 80 x 3000 mm | 3 000 mm | 80 mm | |||
| No stock item (MOQ) | 755980 | Sustarin® C green extruded | rod | rod | turquoise green, similar RAL 6016 | Ø 80 x 1000 mm | 1 000 mm | 80 mm | |||
| No stock item (MOQ) | 757163 | Sustarin® C green extruded | rod | rod | turquoise green, similar RAL 6016 | Ø 25 x 3000 mm | 3 000 mm | 25 mm | |||
| No stock item (MOQ) | 763582 | Sustarin® C green extruded | sheet | sheet | traffic green, similar RAL 6024 | 25 x 620 x 3000 mm | 3 000 mm | 620 mm | 25 mm | ||
| No stock item (MOQ) | 803936 | Sustarin® C green extruded | rod | rod | turquoise green, similar RAL 6016 | Ø 40 x 1000 mm | 1 000 mm | 40 mm | |||
| No stock item (MOQ) | 934835 | Sustarin® C green extruded | rod | rod | yellow green, similar RAL 6018 | Ø 160 x 1000 mm | 1 000 mm | 160 mm |
Technical Specifications Sustarin® C green
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hustota | DIN EN ISO 1183-1 | g / cm3 | 1,41 |
| Absorpce vody | DIN EN ISO 62 | % | 0,2 |
| Hořlavost (tloušťka 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Mez kluzu | DIN EN ISO 527 | MPa | 67 |
| Prodloužení při přetržení | DIN EN ISO 527 | % | 30 |
| Modul pružnosti v tahu | DIN EN ISO 527 | MPa | 2800 |
| Vrubová houževnatost | DIN EN ISO 179 | kJ / m2 | 6 |
| Tvrdost Shore | DIN EN ISO 868 | scale D | 81 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Teplota tání | ISO 11357-3 | °C | 165 |
| Tepelná vodivost | DIN 52612-1 | W / (m * K) | 0,31 |
| Tepelná kapacita | DIN 52612 | kJ / (kg * K) | 1,50 |
| Koeficient lineární teplotní roztažnosti | DIN 53752 | 10-6 / K | 110 |
| Provozní teplota dlouhodobá | Průměr | °C | -50 … 100 |
| Provozní teplota krátkodobá (max.) | Průměr | °C | 140 |
| Teplota tepelné deformace | DIN EN ISO 75, Verf. A, HDT | °C | 110 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Relativní permitivita | IEC 60250 | 3,8 | |
| Dielektrický disipační faktor (50 Hz) | IEC 60250 | 0,002 | |
| Objemový odpor | DIN EN 62631-3-1 | Ω * cm | 1013 |
| Povrchový odpor | DIN EN 62631-3-2 | Ω | 1013 |
| Srovnávací sledovací index | IEC 60112 | 600 | |
| Dielektrická pevnost | IEC 60243 | kV / mm | 40 |
