Sustamid® 66 MO černý
PA — PA 66
The slightly harder PA 66

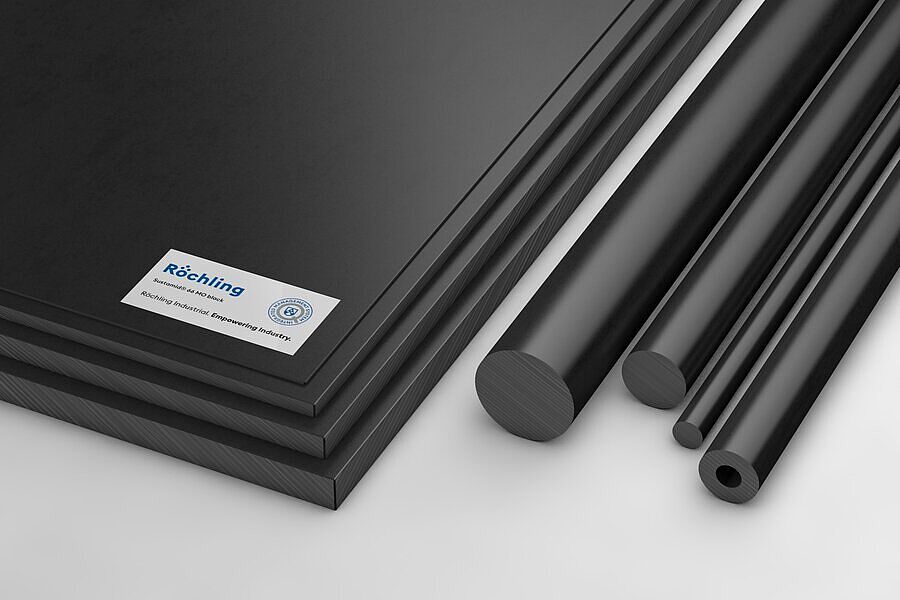

Sustamid® 66 MO black contains an optimally dosed amount of molybdenum disulfide (MoS₂), which enhances strength and stiffness. Acting as a nucleating agent, MoS₂ promotes a fine, uniform crystalline structure for improved sliding and wear resistance. Typical applications: wheels, gears, sprockets, sliding and clutch elements, sliding guides, sealing washers, bearing shells.
black
rodsheet
Characteristics
- High hardness
- High rigidity
- High absorption of moisture of up to 2.7 % in standard atmosphere
- High abrasion resistance
- Good sliding properties
Industries
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 112143 | Sustamid® 66 MO black extruded | rod | rod | black | Ø 20 x 3000 mm | 3 000 mm | 20 mm | |||
| No stock item (MOQ) | 611358 | Sustamid® 66 MO black extruded | sheet | sheet | black | 20 x 620 x 3000 mm | 3 000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 611361 | Sustamid® 66 MO black extruded | sheet | sheet | black | 20 x 620 x 1000 mm | 1 000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 611364 | Sustamid® 66 MO black extruded | sheet | sheet | black | 80 x 620 x 1000 mm | 1 000 mm | 620 mm | 80 mm | ||
| No stock item (MOQ) | 611370 | Sustamid® 66 MO black extruded | sheet | sheet | black | 80 x 620 x 3000 mm | 3 000 mm | 620 mm | 80 mm | ||
| No stock item (MOQ) | 618209 | Sustamid® 66 MO black extruded | sheet | sheet | black | 80 x 620 x 2000 mm | 2 000 mm | 620 mm | 80 mm | ||
| No stock item (MOQ) | 637478 | Sustamid® 66 MO black extruded | rod | rod | black | Ø 35 x 3000 mm | 3 000 mm | 35 mm | |||
| No stock item (MOQ) | 652560 | Sustamid® 66 MO black extruded | rod | rod | black | Ø 35 x 1000 mm | 1 000 mm | 35 mm | |||
| No stock item (MOQ) | 658629 | Sustamid® 66 MO black extruded | sheet | sheet | black | 12 x 620 x 3000 mm | 3 000 mm | 620 mm | 12 mm | ||
| No stock item (MOQ) | 663902 | Sustamid® 66 MO black extruded | sheet | sheet | black | 12 x 620 x 1000 mm | 1 000 mm | 620 mm | 12 mm | ||
| No stock item (MOQ) | 665467 | Sustamid® 66 MO black extruded | rod | rod | black | Ø 140 x 3000 mm | 3 000 mm | 140 mm | |||
| No stock item (MOQ) | 665469 | Sustamid® 66 MO black extruded | rod | rod | black | Ø 140 x 1000 mm | 1 000 mm | 140 mm | |||
| No stock item (MOQ) | 677554 | Sustamid® 66 MO black extruded | rod | rod | black | Ø 140 x 2000 mm | 2 000 mm | 140 mm | |||
| No stock item (MOQ) | 729597 | Sustamid® 66 MO black extruded | rod | rod | black | Ø 130 x 3000 mm | 3 000 mm | 130 mm | |||
| No stock item (MOQ) | 733392 | Sustamid® 66 MO black extruded | sheet | sheet | black | 30 x 620 x 1000 mm | 1 000 mm | 620 mm | 30 mm | ||
| No stock item (MOQ) | 766581 | Sustamid® 66 MO black extruded | rod | rod | black | Ø 16 x 3000 mm | 3 000 mm | 16 mm | |||
| No stock item (MOQ) | 928675 | Sustamid® 66 MO black extruded | sheet | sheet | black | 30 x 620 x 3000 mm | 3 000 mm | 620 mm | 30 mm | ||
| No stock item (MOQ) | 931848 | Sustamid® 66 MO black extruded | rod | rod | black | Ø 75 x 3000 mm | 3 000 mm | 75 mm | |||
| No stock item (MOQ) | 809948 | Sustamid® 66 MO black calendered | sheet | sheet | black | 7 x 620 x 3000 mm | 3 000 mm | 620 mm | 7 mm |
Technical Specifications Sustamid® 66 MO black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hustota | DIN EN ISO 1183-1 | g / cm3 | 1,15 |
| Absorpce vody | DIN EN ISO 62 | % | 2,8 |
| Hořlavost (tloušťka 3 mm / 6 mm) | UL 94 | HB / V2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Mez kluzu | DIN EN ISO 527 | MPa | 90 |
| Prodloužení při přetržení | DIN EN ISO 527 | % | 20 |
| Modul pružnosti v tahu | DIN EN ISO 527 | MPa | 3400 |
| Vrubová houževnatost | DIN EN ISO 179 | kJ / m2 | 2 |
| Tvrdost Shore | DIN EN ISO 868 | scale D | 83 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Teplota tání | ISO 11357-3 | °C | 260 |
| Tepelná vodivost | DIN 52612-1 | W / (m * K) | 0,23 |
| Tepelná kapacita | DIN 52612 | kJ / (kg * K) | 1,70 |
| Koeficient lineární teplotní roztažnosti | DIN 53752 | 10-6 / K | 80 |
| Provozní teplota dlouhodobá | Průměr | °C | -30 … 95 |
| Provozní teplota krátkodobá (max.) | Průměr | °C | 170 |
| Teplota tepelné deformace | DIN EN ISO 75, Verf. A, HDT | °C | 100 |
