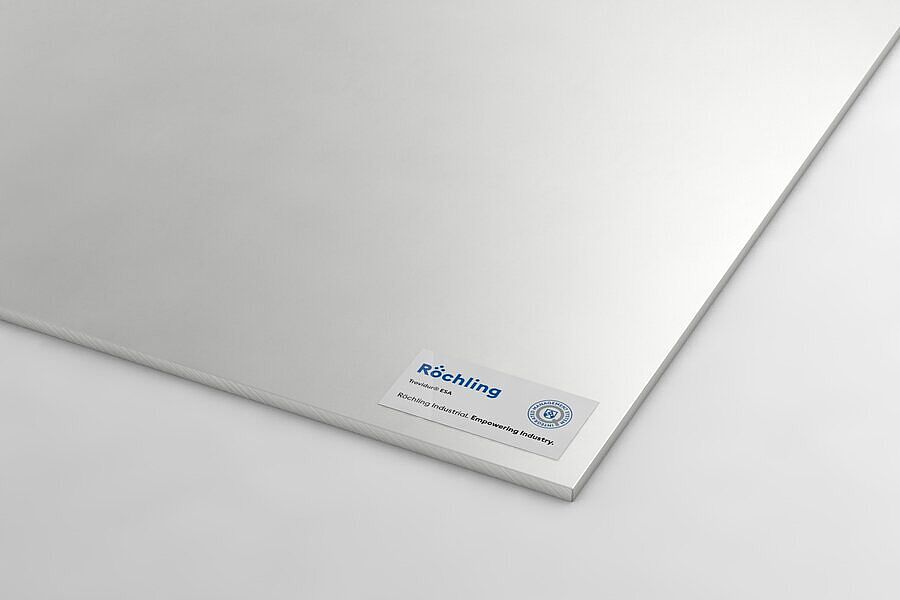

Trovidur® ESA

PVC-U

T-1968 white
sheet
QR-Code

Characteristics

  • UV-resistant in colour white
  • Highly impact resistant
  • RoHS-compliant
  • ELV-compliant
  • WEEE-compliant
  • RLAP-compliant
  • Flame retardant
  • Light-opaque in white
  • Vacuum formable

Application Examples

Mobile rooms made of Trovidur® ESA

Wall elements made of Trovidur® ESA can be quickly and easily installed to create mobile rooms in any size or shape and with their high stability offer reliable protection against the elements. The deep-drawn panels meet the high fire safety regulations of such applications and are visually appealing. At the same time, the opaque walls protect against the noise of wind, rain and hail, and are ideal for use outdoors due to their UV resistance.

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
Stock item (no MOQ)
100858Trovidur® ESA-D white extruded sheet sheet T-2060 white2.000 x 1.000 x 1 mm 2,000 mm 1,000 mm 1 mm
Stock item (no MOQ)
100925Trovidur® ESA-D white extruded sheet sheet T-2060 white3.000 x 1.500 x 3 mm 3,000 mm 1,500 mm 3 mm
Stock item (no MOQ)
100929Trovidur® ESA-D white extruded sheet sheet T-2060 white2.000 x 1.000 x 5 mm 2,000 mm 1,000 mm 5 mm
Stock item (no MOQ)
100930Trovidur® ESA-D white extruded sheet sheet T-2060 white2.000 x 1.000 x 2 mm 2,000 mm 1,000 mm 2 mm
Stock item (no MOQ)
100931Trovidur® ESA-D white extruded sheet sheet T-2060 white2.000 x 1.000 x 3 mm 2,000 mm 1,000 mm 3 mm
Stock item (no MOQ)
206816Trovidur® ESA-D white extruded sheet sheet T-2060 white2.440 x 1.220 x 3 mm 2,440 mm 1,220 mm 3 mm
Stock item (no MOQ)
206820Trovidur® ESA-D white extruded sheet sheet T-2060 white2.440 x 1.220 x 2 mm 2,440 mm 1,220 mm 2 mm
Stock item (no MOQ)
206834Trovidur® ESA-D white extruded sheet sheet T-2060 white2.440 x 1.220 x 1,5 mm 2,440 mm 1,220 mm 1.5 mm
Stock item (no MOQ)
242164Trovidur® ESA-D white extruded sheet sheet T-2060 white2.440 x 1.220 x 3 mm 2,440 mm 1,220 mm 3 mm
No stock item (MOQ)
472547Trovidur® ESA-S white extruded sheet sheet T-2119 white2800 x 2050 x 3 mm 2,800 mm 2,050 mm 3 mm
No stock item (MOQ)
471429Trovidur® ESA white extruded sheet sheet T-1968 white1.425 x 910 x 4 mm 1,425 mm 910 mm 4 mm

Technical Specifications Trovidur® ESA

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,41
Water absorptionDIN EN ISO 62%0,20
Flammability (Thickness 1 ... 4 mm)DIN 4102B1
VOCISO 16.000conform-
Flammability (Thickness 2,5 mm)BS 476 Part 6Class 0
Flammability (Thickness 1 ... 4 mm)NF P 92-501M1
Flammability (Thickness 2 ... 4 mm)BS 476 Part 7Class 1
Flammability (Thickness 2,5 mm)EN 13501-1B s3 d0
Flammability (Thickness 4 mm)EN 13501-1B s3 d2
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa45
Elongation at breakDIN EN ISO 527%20
Tensile modulus of elasticityDIN EN ISO 527MPa2500
Notched impact strengthDIN EN ISO 179kJ / m28
Shore hardnessDIN EN ISO 868scale D80
Ball indentation hardnessDIN EN ISO 2039-1MPa110
Compressive strengthDIN EN ISO 604MPa65
Bending strengthDIN EN ISO 178MPa60
Test MethodUnitGuideline Value
Vicat softening temperatureDIN EN ISO 306, Vicat B°C75
Service Temperature°C-20 ... +60
Heat deflection temperatureDIN EN ISO 75°C70
Coefficient of linear thermal expansionDIN EN ISO 11359-2mm/m K 0,075
Test MethodUnitGuideline Value
Dielectric constantIEC 602503,2
Dielectric dissipation factor (106 Hz)IEC 602500,02
Volume resistivityDIN EN 62631-3-1Ω * cm>1015
Surface resistivityDIN EN 62631-3-2>1013
Dielectric strengthIEC 60243kV / mm12
Comparative tracking indexIEC 60112CTI600
