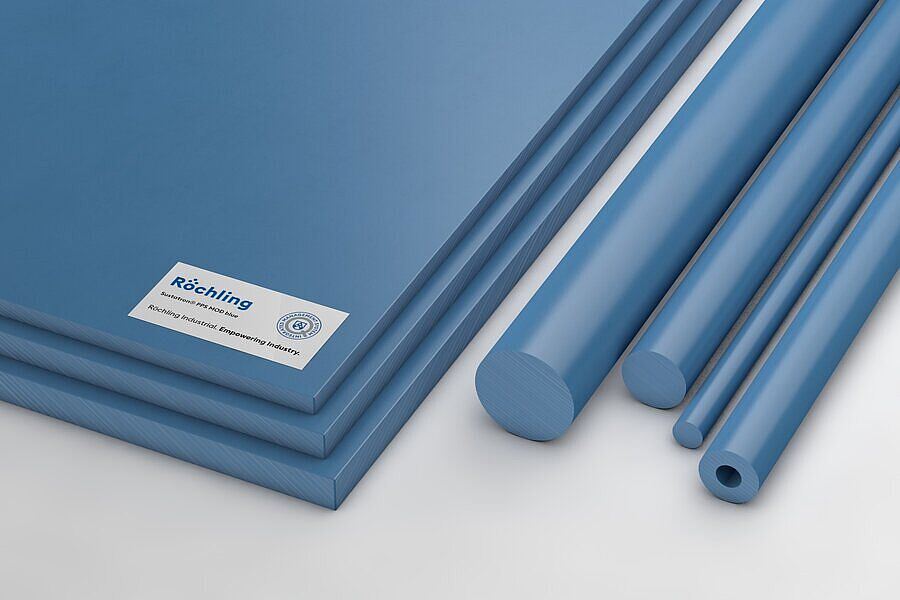

Sustatron® PPS MOD blue

PPS

blue
rod
QR-Code

Characteristics

  • High hardness and rigidity
  • Very high heat deflection temperature
  • Very low moisture absorption
  • Chemical resistance
  • Low wear
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
809727Sustatron® PPS MOD blue extruded rod rod blueØ 60 x 3000 mm 3,000 mm 60 mm
No stock item (MOQ)
809728Sustatron® PPS MOD blue extruded rod rod blueØ 60 x 1000 mm 1,000 mm 60 mm
No stock item (MOQ)
809730Sustatron® PPS MOD blue extruded rod rod blueØ 40 x 1000 mm 1,000 mm 40 mm
No stock item (MOQ)
809732Sustatron® PPS MOD blue extruded rod rod blueØ 16 x 3000 mm 3,000 mm 16 mm
No stock item (MOQ)
810101Sustatron® PPS MOD blue extruded rod rod blueØ 100 x 3000 mm 3,000 mm 100 mm
No stock item (MOQ)
921205Sustatron® PPS MOD blue extruded rod rod blueØ 90 x 3000 mm 3,000 mm 90 mm

Technical Specifications Sustatron® PPS MOD blue

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,38
Water absorptionDIN EN ISO 62%0,0
Flammability (Thickness 3 mm / 6 mm)UL 94V0 / V0
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa50
Elongation at breakDIN EN ISO 527%4
Tensile modulus of elasticityDIN EN ISO 527MPa3000
Notched impact strengthDIN EN ISO 179kJ / m25,0
Shore hardnessDIN EN ISO 868scale D77
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C285
Coefficient of linear thermal expansionDIN 5375210-6 / K50
Service temperature, long termAverage°C-20 … 220
Service temperature, short term (max.)Average°C260
Test MethodUnitGuideline Value
Volume resistivityDIN EN 62631-3-1Ω * cm1016
Surface resistivityDIN EN 62631-3-21013
