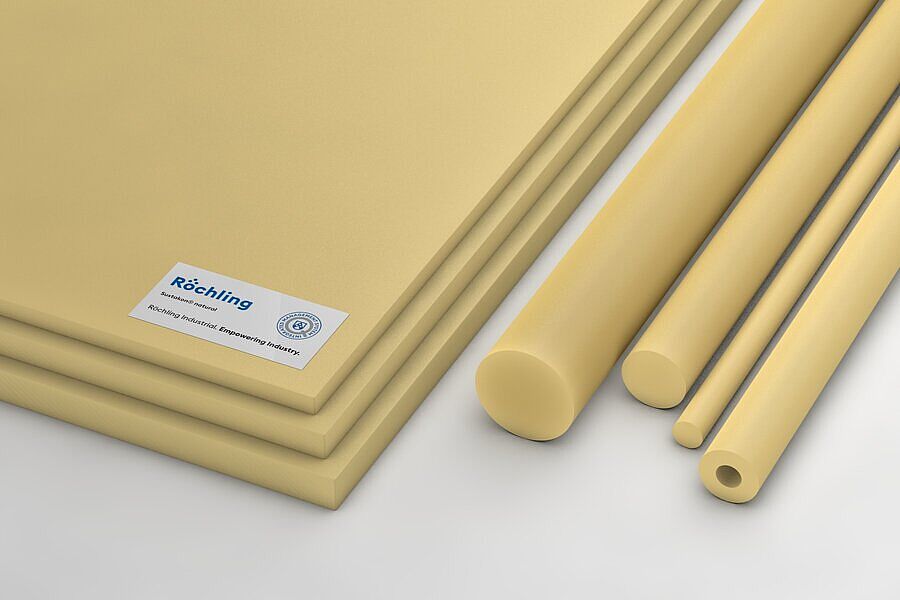

Sustakon® natural
PK
natural
rod
Characteristics
- Very good resilience
- Low moisture absorption
- the wear rate is incredibly low in comparison with other polymers when it is used with friction partners made of the same material
- remains accurate to size and retains its dimensional stability
- High abrasion resistance
- Good impact strength
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 600652 | Sustakon® natural extruded | rod | rod | natural | Ø 20 x 1000 mm | 1,000 mm | 20 mm | |||
| No stock item (MOQ) | 635590 | Sustakon® natural extruded | rod | rod | natural | Ø 25 x 1000 mm | 1,000 mm | 25 mm | |||
| No stock item (MOQ) | 635610 | Sustakon® natural extruded | rod | rod | natural | Ø 25 x 3000 mm | 3,000 mm | 25 mm | |||
| No stock item (MOQ) | 643335 | Sustakon® natural extruded | rod | rod | natural | Ø 12 x 1000 mm | 1,000 mm | 12 mm | |||
| No stock item (MOQ) | 644090 | Sustakon® natural extruded | rod | rod | natural | Ø 30 x 1000 mm | 1,000 mm | 30 mm | |||
| No stock item (MOQ) | 646354 | Sustakon® natural extruded | rod | rod | natural | Ø 40 x 1000 mm | 1,000 mm | 40 mm | |||
| No stock item (MOQ) | 701807 | Sustakon® natural extruded | rod | rod | natural | Ø 100 x 3000 mm gesperrt | 3,000 mm | 100 mm | |||
| No stock item (MOQ) | 701808 | Sustakon® natural extruded | rod | rod | natural | Ø 100 x 2000 mm gesperrt | 2,000 mm | 100 mm | |||
| No stock item (MOQ) | 701809 | Sustakon® natural extruded | rod | rod | natural | Ø 100 x 1000 mm gesperrt | 1,000 mm | 100 mm | |||
| No stock item (MOQ) | 924452 | Sustakon® natural extruded | rod | rod | natural | Ø 40 x 3000 mm | 3,000 mm | 40 mm | |||
| No stock item (MOQ) | 924453 | Sustakon® natural extruded | rod | rod | natural | Ø 12 x 3000 mm | 3,000 mm | 12 mm | |||
| No stock item (MOQ) | 924454 | Sustakon® natural extruded | rod | rod | natural | Ø 20 x 3000 mm | 3,000 mm | 20 mm | |||
| No stock item (MOQ) | 924455 | Sustakon® natural extruded | rod | rod | natural | Ø 60 x 3000 mm | 3,000 mm | 60 mm | |||
| No stock item (MOQ) | 924456 | Sustakon® natural extruded | rod | rod | natural | Ø 80 x 3000 mm | 3,000 mm | 80 mm | |||
| No stock item (MOQ) | 924462 | Sustakon® natural extruded | rod | rod | natural | Ø 80 x 1000 mm | 1,000 mm | 80 mm | |||
| No stock item (MOQ) | 926922 | Sustakon® natural extruded | rod | rod | natural | Ø 30 x 3000 mm | 3,000 mm | 30 mm | |||
| No stock item (MOQ) | 933287 | Sustakon® natural extruded | rod | rod | natural | Ø 50 x 3000 mm | 3,000 mm | 50 mm | |||
| No stock item (MOQ) | 933470 | Sustakon® natural extruded | rod | rod | natural | Ø 50 x 1000 mm | 1,000 mm | 50 mm |
Technical Specifications Sustakon® natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,25 |
| Water absorption | DIN EN ISO 62 | % | 0,4 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 70 |
| Elongation at break | DIN EN ISO 527 | % | 70 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 1700 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 12 |
| Shore hardness | DIN EN ISO 868 | scale D | 78 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 225 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 110 |
| Service temperature, long term | Average | °C | -30 … 100 |
| Service temperature, short term (max.) | Average | °C | 150 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 83 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | 1013 |
| Surface resistivity | DIN EN 62631-3-2 | Ohm | 1013 |
