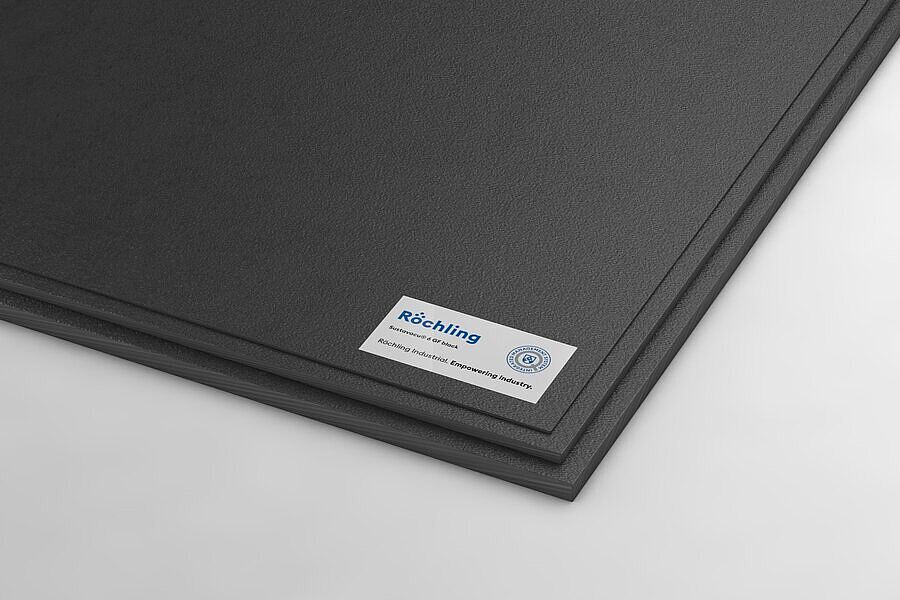

Sustavacu® 6 GF black

PA — PA 6

black
sheet
QR-Code

Application Examples

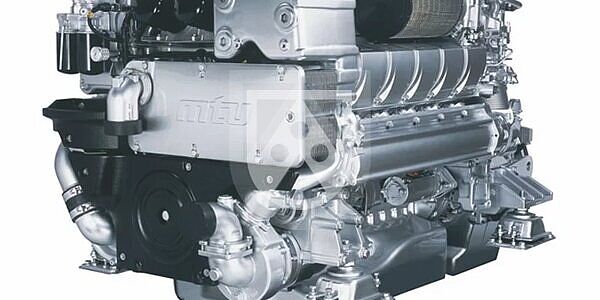

Covers for ship engines made of Sustavacu® 6 GF

Ship engine manufacturers use our deep-drawable material Sustavacu® 6 GF with glass fiber reinforcement due to its good dimensional stability and high continuous operating temperature (140 ° C) as covers for ship engines.

Covers made of Sustavacu® 6 GF

With its high mechanical strength and rigidity our deep-drawable, glass fiber reinforced material Sustavacu® 6 GF is used for example as tubs, hoods, cladding and covers in mechanical and plant engineering.

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
Stock item (no MOQ)
102859Sustavacu® GF black calendered sheet sheet black3 x 1000 x 2000 mm 2,000 mm 1,000 mm 3 mm
No stock item (MOQ)
102860Sustavacu® GF black calendered sheet sheet black4 x 1000 x 2000 mm 2,000 mm 1,000 mm 4 mm
No stock item (MOQ)
102861Sustavacu® GF black calendered sheet sheet black5 x 1000 x 2000 mm 2,000 mm 1,000 mm 5 mm
No stock item (MOQ)
700180Sustavacu® GF black calendered sheet sheet black3 x 1000 x 1000 mm 1,000 mm 1,000 mm 3 mm

Technical Specifications Sustavacu® 6 GF black

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,22
Water absorptionDIN EN ISO 62%2,5
Flammability (Thickness 3 mm / 6 mm)UL 94HB / HB
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa105
Elongation at breakDIN EN ISO 527%3
Tensile modulus of elasticityDIN EN ISO 527MPa5400
Notched impact strengthDIN EN ISO 179kJ / m212
Shore hardnessDIN EN ISO 868scale D83
Shore hardnessDIN EN ISO 868 / 15 secscale D80
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C220
Coefficient of linear thermal expansionDIN 5375210-6 / K70
Service temperature, long termAverage°C-20...140
Service temperature, short term (max.)Average°C180
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C190
