Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 386849 | Polystone® P (Copolymer) blue extruded | welding rod | welding rod | sky blue, similar RAL 5015 | B=5,7 (-0,5/+0,1) x 3,8 (-0,4/+0) mm | 5,7 mm | 3,8 mm | |||
| No stock item (MOQ) | 469733 | Polystone® P (Copolymer) blue extruded | sheet | sheet | sky blue, similar RAL 5015 | 8 x 1500 x 3000 mm | 3 000 mm | 1 500 mm | 8 mm | ||
| No stock item (MOQ) | 254293 | Polystone® P (Copolymer) UV-stabilized blue extruded | welding rod | welding rod | caribic blue | Ø 4 (-0,3/+0,2) mm | 4 mm | ||||
| No stock item (MOQ) | 276257 | Polystone® P (Copolymer) UV-stabilized blue extruded | welding rod | welding rod | light blue | Ø 4 (-0,3/+0,2) mm | 4 mm | ||||
| No stock item (MOQ) | 345822 | Polystone® P (Copolymer) UV-stabilized blue extruded | sheet | sheet | light blue | 8 x 1500 x 4000 mm | 4 000 mm | 1 500 mm | 8 mm | ||
| No stock item (MOQ) | 348997 | Polystone® P (Copolymer) UV-stabilized blue extruded | welding rod | welding rod | caribic blue | Ø 3 (+/-0,2) mm | 3 mm | ||||
| No stock item (MOQ) | 360361 | Polystone® P (Copolymer) UV-stabilized blue extruded | welding rod | welding rod | light blue | Ø 3 (+/-0,2) mm | 3 mm | ||||
| No stock item (MOQ) | 443942 | Polystone® P (Copolymer) UV-stabilized blue extruded | welding rod | welding rod | sapphire blue, similar RAL 5003 | Ø 3 (+/-0,2) mm | 3 mm | ||||
| No stock item (MOQ) | 474422 | Polystone® P (Copolymer) UV-stabilized blue extruded | welding rod | welding rod | signal blue, similar RAL 5005 | Ø 4 (-0,3/+0,2) mm | 4 mm |

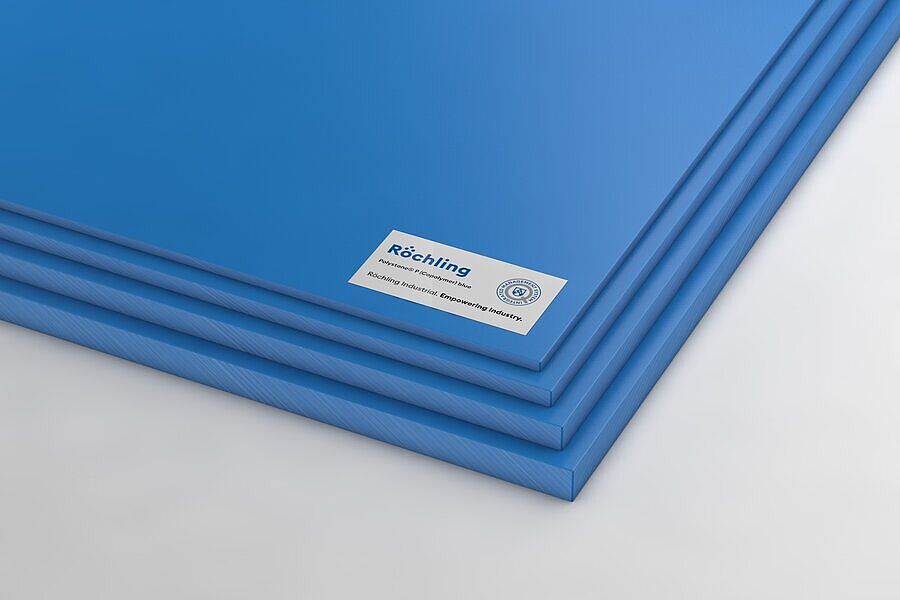

Technical Specifications Polystone® P (Copolymer) blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hustota | DIN EN ISO 1183-1 | g / cm3 | >0,91 |
| Absorpce vody | DIN EN ISO 62 | % | 0,1 |
| Hořlavost (tloušťka 3 mm / 6 mm) | UL 94 | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Mez kluzu | DIN EN ISO 527 | MPa | >23 |
| Prodloužení při přetržení | DIN EN ISO 527 | % | >50 |
| Modul pružnosti v tahu | DIN EN ISO 527 | MPa | >1100 |
| Vrubová houževnatost | DIN EN ISO 179 | kJ / m2 | >30 |
| Tvrdost Shore | DIN EN ISO 868 | scale D | >65 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Teplota tání | ISO 11357-3 | °C | 162 ... 165 |
| Tepelná vodivost | DIN 52612-1 | W / (m * K) | 0,20 |
| Tepelná kapacita | DIN 52612 | kJ / (kg * K) | 1,70 |
| Koeficient lineární teplotní roztažnosti | DIN 53752 | 10-6 / K | 120 ... 190 |
| Provozní teplota dlouhodobá | Průměr | °C | -30 … 100 |
| Provozní teplota krátkodobá (max.) | Průměr | °C | 150 |
| Teplota měknutí dle Vicata | DIN EN ISO 306, dle Vicata B | °C | 85 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Relativní permitivita | IEC 60250 | 2,5 | |
| Dielektrický disipační faktor (106 Hz) | IEC 60250 | 0,00019 | |
| Objemový odpor | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Povrchový odpor | DIN EN 62631-3-2 | Ω | >1014 |
| Srovnávací sledovací index | IEC 60112 | 600 | |
| Dielektrická pevnost | IEC 60243 | kV / mm | >40 |
