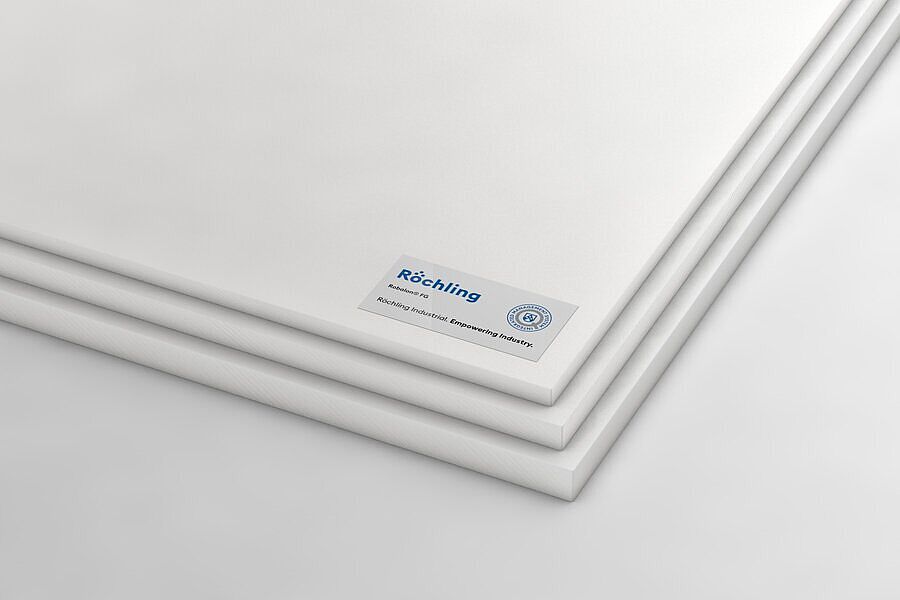

Robalon® FG

PE — PE-UHMW - PE 1000

Colour white. No molybdenum disulfide alloy, no cross-linking. Physiologically safe. Our plastic complies with the requirements of the EU-regulation 10/2011/EU, which is valid since May 2011, its amendment 1282/2011/EU as well as the framework regulation 1935/2004/EC and the regulation 2023/2006/EC. Of course, our manufacturing processes subject to the philosophy "Good Manufacturing Practice" (2023/2006/EG).



  • Physiologically safe
  • Good sliding and wear behaviour
  • Food compliant according to 10/2011/EU, 1935/2004/EC, FDA

Technical Specifications Robalon® FG

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm30,93
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB/HB
Molecular weightg/mol9,20 * 106
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa17
Elongation at breakDIN EN ISO 527%>300
Tensile modulus of elasticityDIN EN ISO 527MPa470
Notched impact strengthDIN EN ISO 179/1eAkJ / m2>100
Shore hardnessDIN EN ISO 868 / 15 secscale D63
Compression - compression set23°C, 2N/mm², 1h%2
Compression - compression set80°C, 10N/mm², 56h%20
Test MethodUnitGuideline Value
Melting temperatureDIN EN ISO 3146°C135
Thermal conductivityDIN EN ISO 8302W / (m * K)0,41
Thermal capacityDIN 51005kJ / (kg * K)1,84
Coefficient of linear thermal expansionDIN 5375210-6 / K200
Service temperature, long termAverage°C-200 ... 80
Service temperature, short term (max.)Average°C110
Test MethodUnitGuideline Value
Dielectric constantIEC 602502,1 ... 3
Dielectric dissipation factor (106 Hz)IEC 6025010 * 10-4
Dielectric dissipation factor (100 Hz)IEC 602503,9 * 10-4
Volume resistivityDIN EN 62631-3-1Ω * cm1012
Surface resistivityDIN EN 62631-3-21012
Comparative tracking indexIEC 60112600
Dielectric strengthIEC 60243kV / mm45
