Polystone® M oranžová
PE — PE-UHMW - PE 1000
Polystone® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.
traffic orange, similar RAL 2009pure orange, similar RAL 2004bright red orange, similar RAL 2008

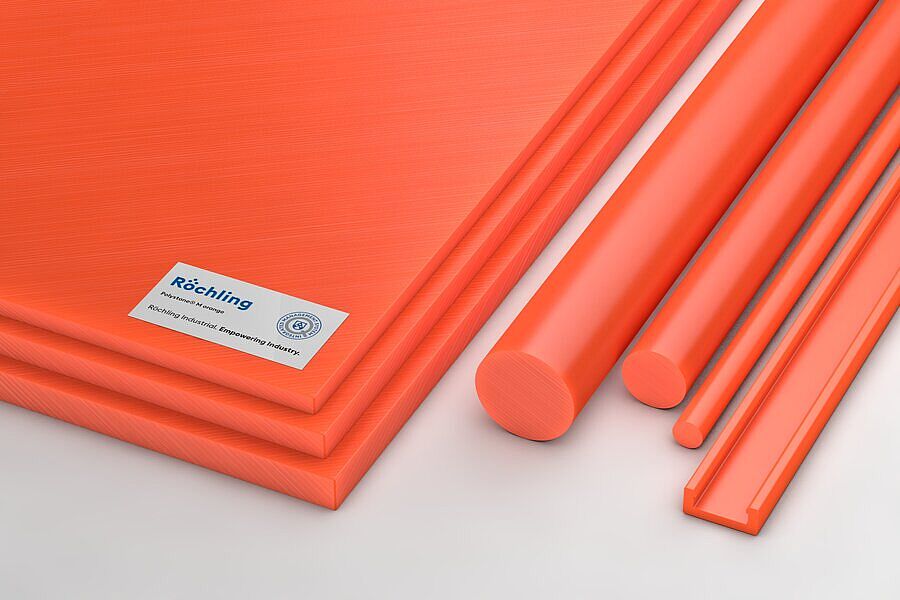

rodprofilesheet
Characteristics
- Good mechanical properties
- Low coefficient of friction
- Good wear properties
Industries
Potravinářský průmysl- Pečivo a sladkosti
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 247311 | Polystone® M orange extruded | rod | rod | traffic orange, similar RAL 2009 | Ø 160 x 2.000 mm | 2 000 mm | 160 mm | |||
| No stock item (MOQ) | 284554 | Polystone® M orange extruded | rod | rod | traffic orange, similar RAL 2009 | Ø 140 x 3.000 (-0/+60) mm | 3 000 mm | 140 mm | |||
| No stock item (MOQ) | 285782 | Polystone® M orange extruded | Special profile | Special profile (R385) | pure orange, similar RAL 2004 | 2.000 x 50 x 52 mm | 2 000 mm | 50 mm | 52 mm | ||
| No stock item (MOQ) | 335067 | Polystone® M orange extruded | rod | rod | bright red orange, similar RAL 2008 | Ø 45 x 2.000 mm | 2 000 mm | 45 mm | |||
| No stock item (MOQ) | 447963 | Polystone® M orange extruded | rod | rod | traffic orange, similar RAL 2009 | Ø 130 x 2.000 mm | 2 000 mm | 130 mm | |||
| No stock item (MOQ) | 471013 | Polystone® M orange extruded | rod | rod | traffic orange, similar RAL 2009 | Ø 40 x 2.000 mm | 2 000 mm | 40 mm | |||
| No stock item (MOQ) | 471014 | Polystone® M orange extruded | rod | rod | traffic orange, similar RAL 2009 | Ø 140 x 2.000 mm | 2 000 mm | 140 mm | |||
| No stock item (MOQ) | 474998 | Polystone® M orange extruded | Special profile | Special profile (R232) | pure orange, similar RAL 2004 | 50.000 x 15 x 4 mm | 50 000 mm | 15 mm | 4 mm | ||
| No stock item (MOQ) | 240571 | Polystone® M orange pressed | sheet | sheet | traffic orange, similar RAL 2009 | 20 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 20 mm | ||
| No stock item (MOQ) | 243766 | Polystone® M orange pressed | sheet | sheet | traffic orange, similar RAL 2009 | 20 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 20 mm | ||
| No stock item (MOQ) | 277440 | Polystone® M orange pressed | sheet | sheet | traffic orange, similar RAL 2009 | 20 x 2000 x 6000 mm | 6 000 mm | 2 000 mm | 20 mm | ||
| No stock item (MOQ) | 448001 | Polystone® M orange pressed | sheet | sheet | traffic orange, similar RAL 2009 | 21 x 2500 x 6000 mm | 6 000 mm | 2 500 mm | 21 mm | ||
| No stock item (MOQ) | 463124 | Polystone® M orange pressed | sheet | sheet | traffic orange, similar RAL 2009 | 30 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 30 mm | ||
| No stock item (MOQ) | 463174 | Polystone® M orange pressed | sheet | sheet | traffic orange, similar RAL 2009 | 30 x 2000 x 6000 mm | 6 000 mm | 2 000 mm | 30 mm |
Technical Specifications Polystone® M orange extruded
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hustota | DIN EN ISO 1183-1 | g / cm3 | >0,93 |
| Absorpce vody | DIN EN ISO 62 | % | 0,01 |
| Hořlavost (tloušťka 3 mm / 6 mm) | UL 94 | HB | |
| Molekulární hmotnost | - | 106 g/mol | ∼ 9 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Prodloužení při přetržení | DIN EN ISO 527 | % | >50 |
| Modul pružnosti v tahu | DIN EN ISO 527 | MPa | >650 |
| Vrubová houževnatost | DIN EN ISO 11542 | kJ / m2 | >100 |
| Tvrdost Shore | DIN EN ISO 868 | scale D | >63 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Teplota tání | ISO 11357-3 | °C | 130 ... 135 |
| Tepelná vodivost | DIN 52612-1 | W / (m * K) | 0,40 |
| Tepelná kapacita | DIN 52612 | kJ / (kg * K) | 1,90 |
| Koeficient lineární teplotní roztažnosti | DIN 53752 | 10-6 / K | 150 ... 230 |
| Provozní teplota dlouhodobá | Průměr | °C | -250 … 80 |
| Provozní teplota krátkodobá (max.) | Průměr | °C | 130 |
| Teplota měknutí dle Vicata | DIN EN ISO 306, dle Vicata B | °C | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Relativní permitivita | IEC 60250 | 2,3 | |
| Dielektrický disipační faktor (106 Hz) | IEC 60250 | 0,0001 | |
| Objemový odpor | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Povrchový odpor | DIN EN 62631-3-2 | Ω | >1014 |
| Srovnávací sledovací index | IEC 60112 | 600 | |
| Dielektrická pevnost | IEC 60243 | kV / mm | >40 |
