SustaECTFE přírodní
E-CTFE
High-performance plastic with extremly good chemical resistance
Ethylene chlorotrifluoroethylene (ECTFE) is a thermoplastic fluoropolymer with a unique chemical structure. As a copolymer, it has an alternating arrangement of ethylene and chlorotrifluoroethylene. This material, also known under the raw material trade name Halar, is particularly suitable for applications that place extreme demands on chemical resistance (e.g. free chlorine in the medium and 98% sulphuric acid), which even PVDF cannot meet. Nevertheless, unlike materials such as PTFE, ECTFE can be welded.
natural

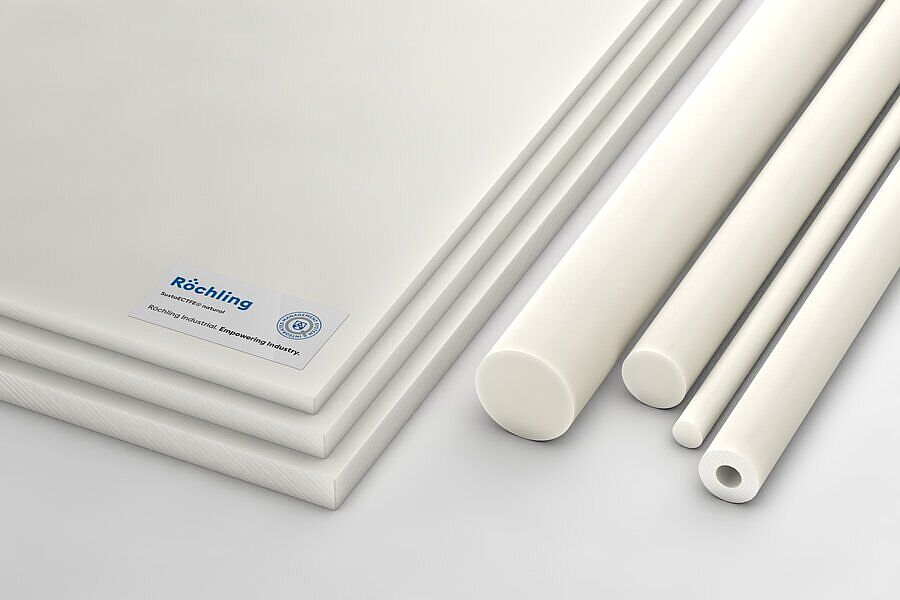

rod
Characteristics
- Flame retardant
- High purity
- High tensile strength
- High stiffness
- High cold impact strength
- High continuous service temperature
- Chemical resistant
- Good weather resistance
Industries
Pečivo a sladkosti- Zpracování masa, ryb a drůbeže
- Potravinářský průmysl
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 672294 | SustaECTFE natural extruded | rod | rod | natural | Ø 16 x 2000 mm | 2 000 mm | 16 mm | |||
| No stock item (MOQ) | 721759 | SustaECTFE natural extruded | rod | rod | natural | Ø 16 x 1000 mm | 1 000 mm | 16 mm | |||
| No stock item (MOQ) | 805881 | SustaECTFE natural extruded | rod | rod | natural | Ø 30 x 3000 mm | 3 000 mm | 30 mm | |||
| No stock item (MOQ) | 924591 | SustaECTFE natural extruded | rod | rod | natural | Ø 16 x 3000 mm | 3 000 mm | 16 mm |
Technical Specifications SustaECTFE natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hustota | DIN EN ISO 1183-1 | g / cm3 | 1,71 |
| Hořlavost (tloušťka 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Mez kluzu | DIN EN ISO 527 | MPa | 30 |
| Prodloužení při přetržení | DIN EN ISO 527 | % | 250 |
| Modul pružnosti v tahu | DIN EN ISO 527 | MPa | 1500 |
| Tvrdost Shore | DIN EN ISO 868 | scale D | 71 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Teplota tání | ISO 11357-3 | °C | 230 |
| Tepelná vodivost | DIN 52612-1 | W / (m * K) | 0,15 |
| Koeficient lineární teplotní roztažnosti | DIN 53752 | 10-6 / K | 90 |
| Provozní teplota dlouhodobá | Průměr | °C | -50 … 150 |
| Provozní teplota krátkodobá (max.) | Průměr | °C | 180 |
| Teplota tepelné deformace | DIN EN ISO 75, Verf. A, HDT | °C | 70 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Objemový odpor | DIN EN 62631-3-1 | Ω * cm | 1015 |
| Povrchový odpor | DIN EN 62631-3-2 | Ω | 1013 |
| Srovnávací sledovací index | IEC 60112 | 600 | |
| Dielektrická pevnost | IEC 60243 | kV / mm | 15 |
