Sustamid® 6G PD 120 modrý
PA — PA 6 G
Impact-resistant and damping for extreme loads
Sustamid® 6 G PD 120 blue is an impact-modified polyamide that impresses with its balanced combination of toughness and strength. The material was specially developed for use in pile driver systems, where it is used as a pile pad. As a damping buffer between the machine and the pile, it protects the components, offers excellent damping properties and significantly reduces noise during the pile-driving process.
gentian blue, similar RAL 5010

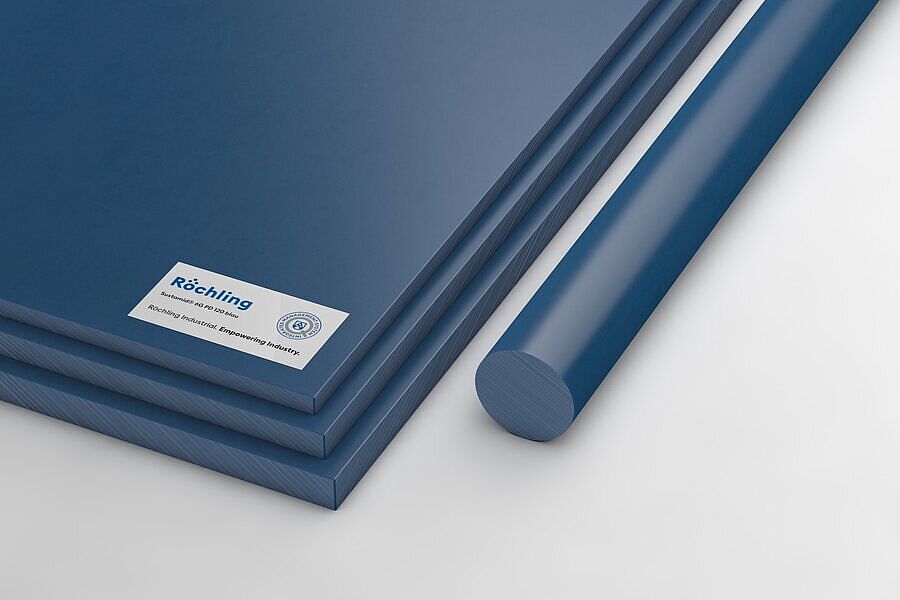

sheet
Characteristics
- Break proof also at sub-zero temperatures
- Good sliding properties
- Good wear properties
- High absorption of moisture of up to 3 % in standard atmosphere
- Good impact strength
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 693941 | Sustamid® 6G PD 120 blue in-mould polymerised | sheet | sheet | gentian blue, similar RAL 5010 | 35 x 1250 x 2500 mm | 2 500 mm | 1 250 mm | 35 mm | ||
| No stock item (MOQ) | 719075 | Sustamid® 6G PD 120 blue in-mould polymerised | sheet | sheet | gentian blue, similar RAL 5010 | 60 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 60 mm | ||
| No stock item (MOQ) | 800263 | Sustamid® 6G PD 120 blue in-mould polymerised | sheet | sheet | gentian blue, similar RAL 5010 | 60 x 1250 x 2500 mm | 2 500 mm | 1 250 mm | 60 mm | ||
| No stock item (MOQ) | 800264 | Sustamid® 6G PD 120 blue in-mould polymerised | sheet | sheet | gentian blue, similar RAL 5010 | 70 x 1250 x 2500 mm | 2 500 mm | 1 250 mm | 70 mm | ||
| No stock item (MOQ) | 806890 | Sustamid® 6G PD 120 blue in-mould polymerised | sheet | sheet | gentian blue, similar RAL 5010 | 50 x 1250 x 2500 mm | 2 500 mm | 1 250 mm | 50 mm | ||
| No stock item (MOQ) | 934635 | Sustamid® 6G PD 120 blue in-mould polymerised | sheet | sheet | gentian blue, similar RAL 5010 | 65 x 1250 x 2500 mm | 2 500 mm | 1 250 mm | 65 mm |
Technical Specifications Sustamid® 6G PD 120 blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hustota | DIN EN ISO 1183-1 | g / cm3 | 1,14 |
| Absorpce vody | DIN EN ISO 62 | % | 2,5 |
| Hořlavost (tloušťka 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Mez kluzu | DIN EN ISO 527 | MPa | 72 |
| Prodloužení při přetržení | DIN EN ISO 527 | % | 50 |
| Modul pružnosti v tahu | DIN EN ISO 527 | MPa | 3100 |
| Vrubová houževnatost | DIN EN ISO 179 | kJ / m2 | 3,5 |
| Tvrdost Shore | DIN EN ISO 868 | scale D | 82 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Teplota tání | ISO 11357-3 | °C | 215 |
| Tepelná vodivost | DIN 52612-1 | W / (m * K) | 0,25 |
| Koeficient lineární teplotní roztažnosti | DIN 53752 | 10-6 / K | 80 |
| Provozní teplota dlouhodobá | Průměr | °C | -40 … 110 |
| Provozní teplota krátkodobá (max.) | Průměr | °C | 160 |
| Teplota tepelné deformace | DIN EN ISO 75, Verf. A, HDT | °C | 90 |
