Sustamid® 6G OL modrý
PA — PA 6 G
The PA 6 G material for a smooth run
Sustamid® 6 GOL is a cast-polymerized polyamide 6 that ensures optimized sliding properties thanks to the homogeneous distribution of a liquid lubricant in the finest form in the polymer. Compared to the modified Sustamid® 6 G, the integrated liquid lubricant significantly reduces friction and effectively prevents jerky sliding (“stick-slip effect”), enabling smooth movement.
cobalt blue, similar RAL 5013

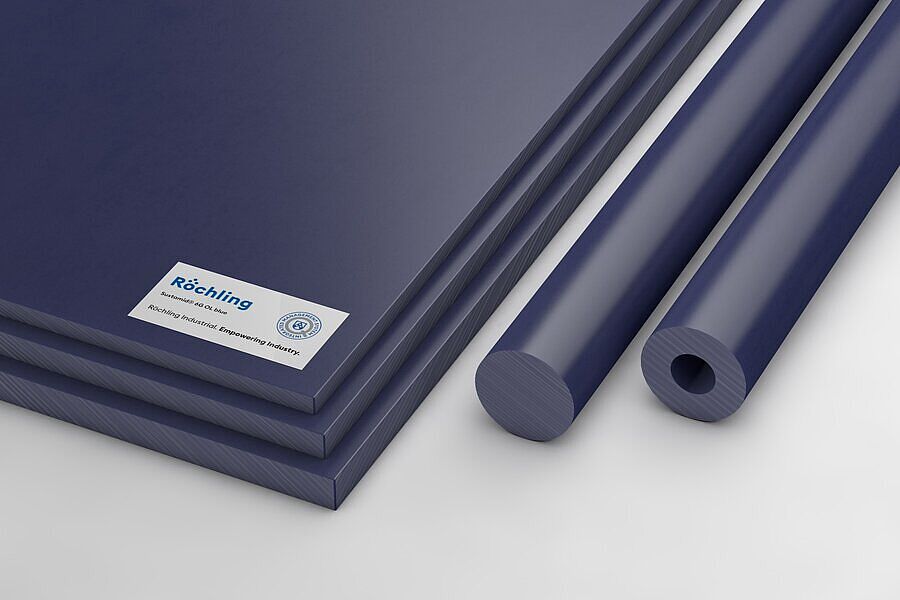

sheetrod
Characteristics
- Self-lubricating
- Good "stick-slip" properties
- Good sliding properties
- High absorption of moisture depending on temperature and humidity
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 628716 | Sustamid® 6G OL blue in-mould polymerised | sheet | sheet | cobalt blue, similar RAL 5013 | 100 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 100 mm | ||
| No stock item (MOQ) | 646897 | Sustamid® 6G OL blue in-mould polymerised | sheet | sheet | cobalt blue, similar RAL 5013 | 98 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 98 mm | ||
| No stock item (MOQ) | 658452 | Sustamid® 6G OL blue in-mould polymerised | sheet | sheet | cobalt blue, similar RAL 5013 | 20 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 20 mm | ||
| No stock item (MOQ) | 666945 | Sustamid® 6G OL blue in-mould polymerised | rod | rod | cobalt blue, similar RAL 5013 | Ø 120 x 3000 mm | 3 000 mm | 120 mm | |||
| No stock item (MOQ) | 666962 | Sustamid® 6G OL blue in-mould polymerised | rod | rod | cobalt blue, similar RAL 5013 | Ø 125 x 3000 mm | 3 000 mm | 125 mm | |||
| No stock item (MOQ) | 666966 | Sustamid® 6G OL blue in-mould polymerised | rod | rod | cobalt blue, similar RAL 5013 | Ø 125 x 1000 mm | 1 000 mm | 125 mm | |||
| No stock item (MOQ) | 666973 | Sustamid® 6G OL blue in-mould polymerised | rod | rod | cobalt blue, similar RAL 5013 | Ø 120 x 1000 mm | 1 000 mm | 120 mm | |||
| No stock item (MOQ) | 701589 | Sustamid® 6G OL blue in-mould polymerised | sheet | sheet | cobalt blue, similar RAL 5013 | 39 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 39 mm | ||
| No stock item (MOQ) | 709790 | Sustamid® 6G OL blue in-mould polymerised | sheet | sheet | cobalt blue, similar RAL 5013 | 39 x 1250 x 2500 mm | 2 500 mm | 1 250 mm | 39 mm | ||
| No stock item (MOQ) | 712203 | Sustamid® 6G OL blue in-mould polymerised | sheet | sheet | cobalt blue, similar RAL 5013 | 38 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 38 mm | ||
| No stock item (MOQ) | 720949 | Sustamid® 6G OL blue in-mould polymerised | sheet | sheet | cobalt blue, similar RAL 5013 | 105 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 105 mm | ||
| No stock item (MOQ) | 723547 | Sustamid® 6G OL blue in-mould polymerised | sheet | sheet | cobalt blue, similar RAL 5013 | 65 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 65 mm |
Technical Specifications Sustamid® 6G OL blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hustota | DIN EN ISO 1183-1 | g / cm3 | 1,14 |
| Absorpce vody | DIN EN ISO 62 | % | 2,0 |
| Hořlavost (tloušťka 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Mez kluzu | DIN EN ISO 527 | MPa | 70 |
| Prodloužení při přetržení | DIN EN ISO 527 | % | 50 |
| Modul pružnosti v tahu | DIN EN ISO 527 | MPa | 3300 |
| Vrubová houževnatost | DIN EN ISO 179 | kJ / m2 | 4 |
| Tvrdost Shore | DIN EN ISO 868 | scale D | 82 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Teplota tání | ISO 11357-3 | °C | 213 |
| Tepelná vodivost | DIN 52612-1 | W / (m * K) | 0,25 |
| Tepelná kapacita | DIN 52612 | kJ / (kg * K) | 1,70 |
| Koeficient lineární teplotní roztažnosti | DIN 53752 | 10-6 / K | 80 |
| Provozní teplota dlouhodobá | Průměr | °C | -40 … 110 |
| Provozní teplota krátkodobá (max.) | Průměr | °C | 160 |
| Teplota tepelné deformace | DIN EN ISO 75, Verf. A, HDT | °C | 90 |
