SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
---|---|---|---|---|---|---|---|---|---|---|---|

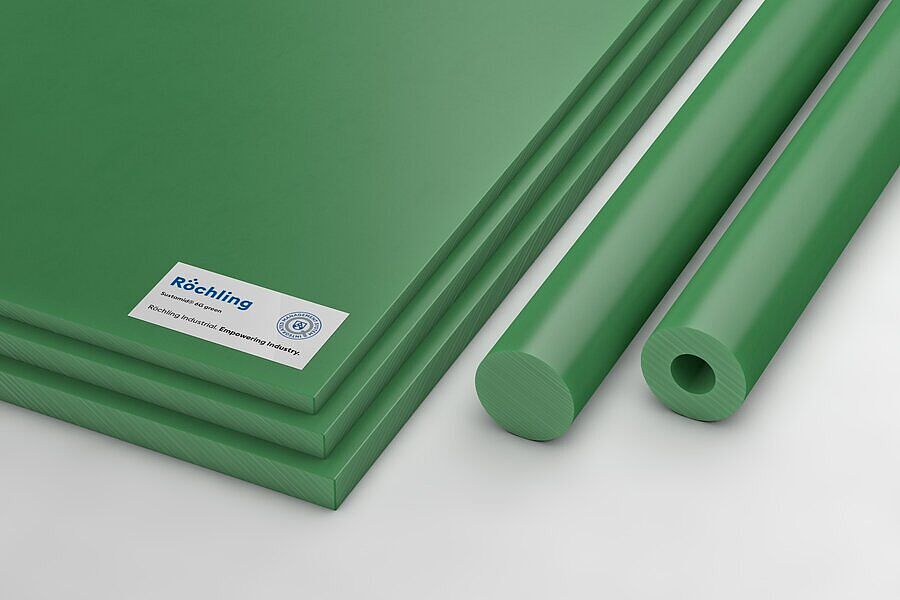

No stock item (MOQ) | 702762 | Sustamid® 6G green in-mould polymerised | sheet | sheet | green, similar RAL 6032 | 60 x 1250 x 2500 mm | 2 500 mm | 1 250 mm | 60 mm | ||
No stock item (MOQ) | 702766 | Sustamid® 6G green in-mould polymerised | sheet | sheet | green, similar RAL 6032 | 60 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 60 mm | ||
No stock item (MOQ) | 927942 | Sustamid® 6G green in-mould polymerised | sheet | sheet | green, similar RAL 6032 | 50 x 1250 x 2500 mm | 2 500 mm | 1 250 mm | 50 mm |
Test Method | Unit | Guideline Value | |
---|---|---|---|
Density | DIN EN ISO 1183-1 | g / cm3 | 1,15 |
Water absorption | DIN EN ISO 62 | % | 2,5 |
Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
Test Method | Unit | Guideline Value | |
---|---|---|---|
Yield stress | DIN EN ISO 527 | MPa | 75 |
Elongation at break | DIN EN ISO 527 | % | 45 |
Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3400 |
Notched impact strength | DIN EN ISO 179 | kJ / m2 | 3 |
Shore hardness | DIN EN ISO 868 | scale D | 83 |
Test Method | Unit | Guideline Value | |
---|---|---|---|
Melting temperature | ISO 11357-3 | °C | 216 |
Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,25 |
Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,70 |
Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 80 |
Service temperature, long term | Average | °C | -40 … 110 |
Service temperature, short term (max.) | Average | °C | 170 |
Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 95 |
Test Method | Unit | Guideline Value | |
---|---|---|---|
Dielectric constant | IEC 60250 | 3,7 | |
Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,02 | |
Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1015 |
Surface resistivity | DIN EN 62631-3-2 | Ω | 1013 |
Comparative tracking index | IEC 60112 | 600 | |
Dielectric strength | IEC 60243 | kV / mm | 20 |
