Polystone® G CubX® black
PE — PE-HD (PE 100)
Polystone® G CubX®: Covering sheets made of Polystone® G (PE100 RC) with very good stress cracking resistance and UV resistance for outdoor use.
- Elevata rigidità longitudinale e trasversale
- Elevata resistenza agli agenti chimici
- Peso ridotto, elevata maneggevolezza
- Buon isolamento termico
- Facile saldabilità mediante saldatura di testa degli elementi riscaldanti, saldatura a gas caldo, saldatura a estrusione
black, similar RAL 9005

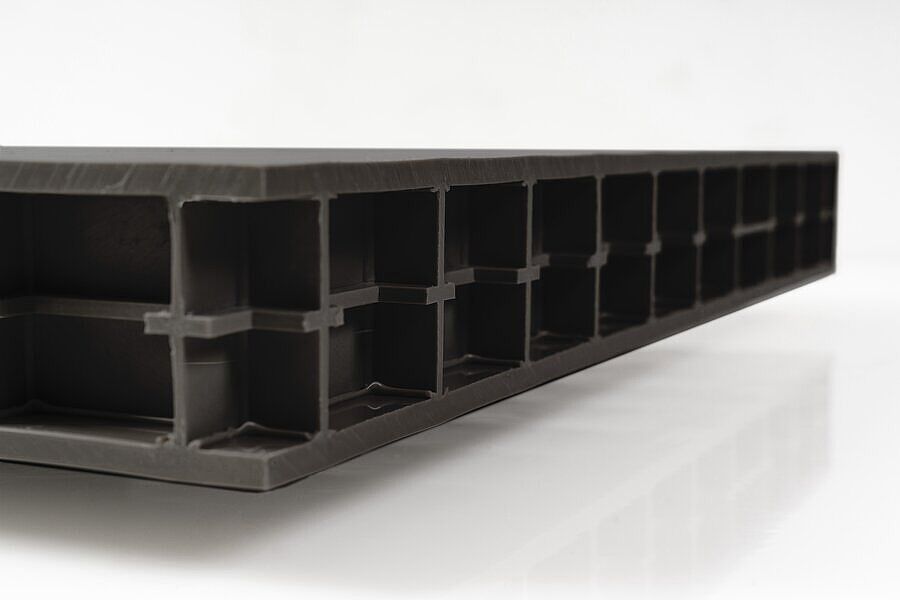

cross-ribbed twin-wall sheet
Characteristics
- High longitudinal and transversal stiffness
- Good handling
- Low weight
- Good thermal insulation
- Good machinability
- Good weldability
- Chemical resistant
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 445231 | Polystone® G CubX® black | cross-ribbed twin-wall sheet | cross-ribbed twin-wall sheet | black, similar RAL 9005 | 2.000 x 1.500 x 57 mm | 2.000 mm | 1.500 mm | 57 mm |
Technical Specifications Polystone® G CubX® black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | ISO 8302 | Tested with: GHP 500-1, Single-sheet process | W / (m * K) | Lambda 0,2 |
| Density | DIN EN ISO 1183 | g / cm3 | 0,3 |
| Area weight | kg/m2 | 18,6 | |
| Weld strength lattice / covering sheets | MPa | ≥ 16 | |
| Flatness | DIN EN ISO 15860 | mm/m | 4 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density, RT | DIN EN ISO 1183 | g / cm3 | 0,96 |
| Yield stress | DIN EN ISO 527 | MPa | 24 |
| Elongation at break | DIN EN ISO 527 | % | > 50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 1000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 20 |
| Dielectric constant | IEC 60250 | 2,5 | |
| Surface resistivity | DIN EN 62631-3-2 | >1014 |
