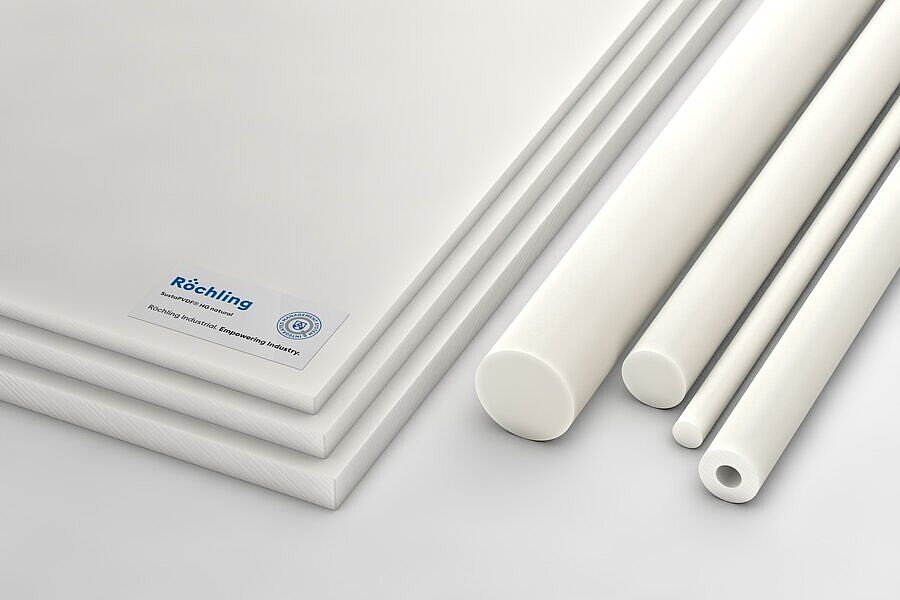

SustaPVDF HG natural

PVDF

Our high-performance specialist in the pharmaceutical industry

Our PVDF HG was developed for the demanding requirements of the healthcare industry. It is a material of the highest purity with excellent UV resistance and sterilizability. With its good or balanced combination of toughness, chemical resistance and strength, PVDF ensures reliable performance in many demanding applications such as in the pharmaceutical industry either as a distribution unit or in drug manufacturing. The temperature stability in continuous use is up to 140 °C.

natural
rodsheet
QR-Code

Characteristics

  • High purity
  • UV-resistant
  • Good toughness
  • Chemical resistant
  • High temperature resistance
  • ISO 10993-5 tested on semi-finished product

Industries


We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.

Industry Manager Healthcare - Mail: AReuner@roechling.com


Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
856715SustaPVDF HG natural extruded rod rod naturalØ 60 x 3000 mm 3.000 mm 60 mm
No stock item (MOQ)
856716SustaPVDF HG natural extruded rod rod naturalØ 60 x 1000 mm 1.000 mm 60 mm
No stock item (MOQ)
868159SustaPVDF HG natural extruded sheet sheet natural60 x 620 x 3000 mm 3.000 mm 620 mm 60 mm
No stock item (MOQ)
868160SustaPVDF HG natural extruded sheet sheet natural60 x 620 x 1000 mm 1.000 mm 620 mm 60 mm

Technical Specifications SustaPVDF HG natural

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,78
Water absorptionDIN EN ISO 62%0,0
Flammability (Thickness 3 mm / 6 mm)UL 94V0/V0
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa55
Elongation at breakDIN EN ISO 527%30
Tensile modulus of elasticityDIN EN ISO 527MPa2100
Notched impact strengthDIN EN ISO 179kJ / m212
Shore hardnessDIN EN ISO 868scale D80
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C178
Thermal conductivityDIN 52612-1W / (m * K)0,2
Thermal capacityDIN 52612kJ / (kg * K)1,20
Coefficient of linear thermal expansionDIN 5375210-6 / K140
Service temperature, long termAverage°C-20..140
Service temperature, short term (max.)Average°C150
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C115
Test MethodUnitGuideline Value
Dielectric constantIEC 602509
Dielectric dissipation factor (50 Hz)IEC 602500,02
Volume resistivityDIN EN 62631-3-1Ω * cm1014
Surface resistivityDIN EN 62631-3-2Ω1014
Comparative tracking indexIEC 60112600
Dielectric strengthIEC 60243kV / mm21
