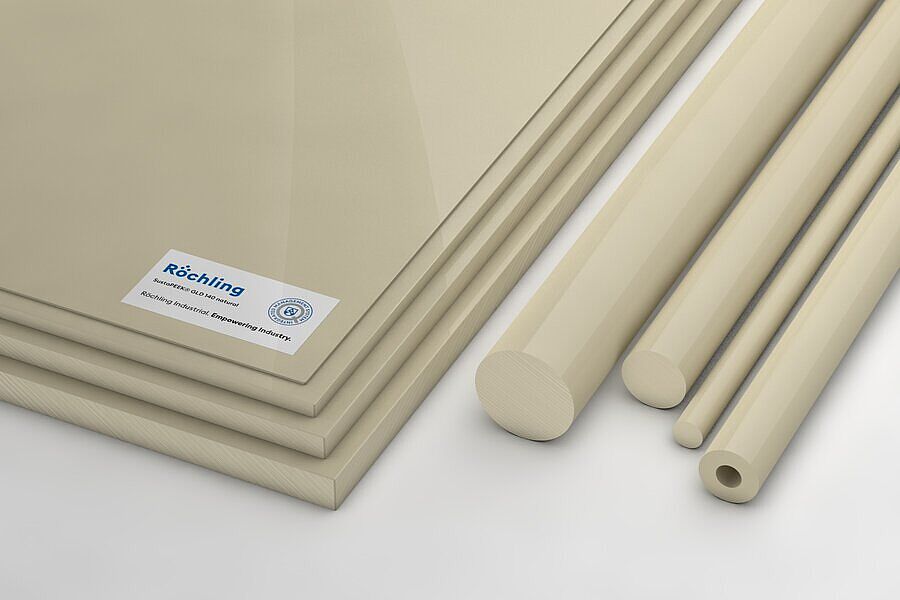

SustaPEEK GLD 140 FG natural

PEEK

natural

rodsheet

Characteristics

Suitable for contact with foodstuffs according to (EC) No. 1935/2004
Good sliding properties
Good dimensional stability

Industries

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	600822	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 40 x 1000 mm	1.000 mm		40 mm
No stock item (MOQ)	600824	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 40 x 3000 mm	3.000 mm		40 mm
No stock item (MOQ)	610546	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 50 x 3000 mm	3.000 mm		50 mm
No stock item (MOQ)	610548	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 50 x 1000 mm	1.000 mm		50 mm
No stock item (MOQ)	652314	SustaPEEK GLD 140 FG natural extruded	sheet	sheet	natural	60 x 620 x 1000 mm	1.000 mm	620 mm	60 mm
No stock item (MOQ)	714950	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 55 x 1000 mm	1.000 mm		55 mm
No stock item (MOQ)	724887	SustaPEEK GLD 140 FG natural extruded	sheet	sheet	natural	6 x 620 x 1000 mm	1.000 mm	620 mm	6 mm
No stock item (MOQ)	750044	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 35 x 3000 mm	3.000 mm		35 mm
No stock item (MOQ)	810008	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 32 x 1000 mm	1.000 mm		32 mm
No stock item (MOQ)	921505	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 32 x 3000 mm	3.000 mm		32 mm
No stock item (MOQ)	921588	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 60 x 3000 mm	3.000 mm		60 mm
No stock item (MOQ)	921589	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 60 x 1000 mm	1.000 mm		60 mm
No stock item (MOQ)	921590	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 100 x 3000 mm	3.000 mm		100 mm
No stock item (MOQ)	921591	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 100 x 1000 mm	1.000 mm		100 mm
No stock item (MOQ)	925667	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 30 x 1000 mm	1.000 mm		30 mm
No stock item (MOQ)	925668	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 30 x 3000 mm	3.000 mm		30 mm
No stock item (MOQ)	926764	SustaPEEK GLD 140 FG natural extruded	sheet	sheet	natural	6 x 620 x 2000 mm	2.000 mm	620 mm	6 mm
No stock item (MOQ)	931635	SustaPEEK GLD 140 FG natural extruded	sheet	sheet	natural	10 x 620 x 1000 mm	1.000 mm	620 mm	10 mm
No stock item (MOQ)	932270	SustaPEEK GLD 140 FG natural extruded	sheet	sheet	natural	30 x 620 x 2000 mm	2.000 mm	620 mm	30 mm
No stock item (MOQ)	932271	SustaPEEK GLD 140 FG natural extruded	sheet	sheet	natural	60 x 620 x 2000 mm	2.000 mm	620 mm	60 mm
No stock item (MOQ)	934039	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 100 x 2000 mm	2.000 mm		100 mm
No stock item (MOQ)	934071	SustaPEEK GLD 140 FG natural extruded	rod	rod	natural	Ø 28 x 3000 mm	3.000 mm		28 mm
No stock item (MOQ)	934106	SustaPEEK GLD 140 FG natural extruded	sheet	sheet	natural	30 x 620 x 1000 mm	1.000 mm	620 mm	30 mm

Technical Specifications SustaPEEK GLD 140 FG natural

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,36
Water absorption	DIN EN ISO 62	%	0,2
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	87
Elongation at break	DIN EN ISO 527	%	3
Tensile modulus of elasticity	DIN EN ISO 527	MPa	3700
Notched impact strength	DIN EN ISO 179	kJ / m²	3,5
Shore hardness	DIN EN ISO 868	scale D	86

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	343
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	55
Service temperature, long term	Average	°C	-30 … 250
Service temperature, short term (max.)	Average	°C	310
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	150
