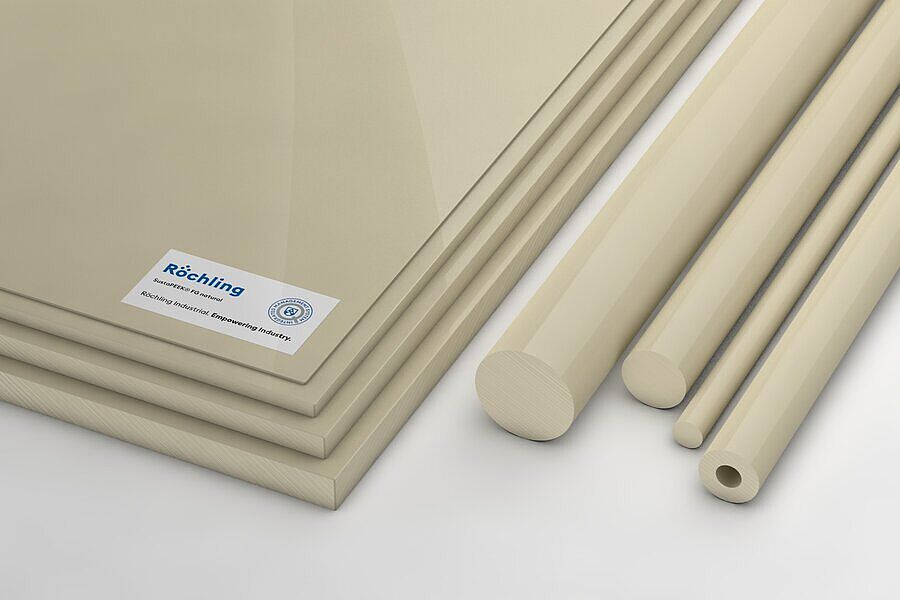

SustaPEEK FG natural

PEEK

natural
rodsheettubular bar
QR-Code

Characteristics

  • Flame retardant and self-extinguishing
  • Suitable for contact with foodstuffs according to (EC) No. 1935/2004
  • Very low smoke density
  • very high resistance to high-energy radiation
  • High abrasion resistance
  • Low creep tendency
  • Good machinability
  • good adhesive properties
  • good weldability
  • high dimensional stability under heat
  • Very high continuous service temperature
  • Low coefficient of thermal expansion
  • good electrical insulating properties over a broad temperature range
  • Good thermoformability
  • Good wear resistance
  • ideal combination of tensile strength, stiffness and impact strength
  • Good sliding properties
  • Good dimensional stability
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
601958SustaPEEK FG natural extruded rod rod naturalØ 12 x 3000 mm 3.000 mm 12 mm
No stock item (MOQ)
665549SustaPEEK FG natural extruded rod rod naturalØ 70 x 1000 mm 1.000 mm 70 mm
No stock item (MOQ)
809957SustaPEEK FG natural extruded sheet sheet natural6 x 620 x 1000 mm 1.000 mm 620 mm 6 mm
No stock item (MOQ)
810183SustaPEEK FG natural extruded tubular bar tubular bar naturalØ 230/200 x 1000 mm 1.000 mm 230 mm 200 mm
No stock item (MOQ)
810228SustaPEEK FG natural extruded rod rod naturalØ 20 x 3000 mm 3.000 mm 20 mm
No stock item (MOQ)
810235SustaPEEK FG natural extruded rod rod naturalØ 60 x 3000 mm 3.000 mm 60 mm
No stock item (MOQ)
810275SustaPEEK FG natural extruded rod rod naturalØ 25 x 3000 mm 3.000 mm 25 mm
No stock item (MOQ)
920122SustaPEEK FG natural extruded rod rod naturalØ 70 x 3000 mm 3.000 mm 70 mm
No stock item (MOQ)
921141SustaPEEK FG natural extruded rod rod naturalØ 85 x 3000 mm 3.000 mm 85 mm
No stock item (MOQ)
921647SustaPEEK FG natural extruded sheet sheet natural16 x 620 x 1000 mm 1.000 mm 620 mm 16 mm
No stock item (MOQ)
921666SustaPEEK FG natural extruded rod rod naturalØ 120 x 1000 mm 1.000 mm 120 mm
No stock item (MOQ)
921683SustaPEEK FG natural extruded sheet sheet natural20 x 620 x 1000 mm 1.000 mm 620 mm 20 mm
No stock item (MOQ)
921802SustaPEEK FG natural extruded rod rod naturalØ 16 x 3000 mm 3.000 mm 16 mm
No stock item (MOQ)
921803SustaPEEK FG natural extruded rod rod naturalØ 22 x 3000 mm 3.000 mm 22 mm
No stock item (MOQ)
922530SustaPEEK FG natural extruded sheet sheet natural8 x 620 x 3000 mm 3.000 mm 620 mm 8 mm
No stock item (MOQ)
922536SustaPEEK FG natural extruded sheet sheet natural30 x 620 x 3000 mm 3.000 mm 620 mm 30 mm
No stock item (MOQ)
922537SustaPEEK FG natural extruded sheet sheet natural30 x 620 x 1000 mm 1.000 mm 620 mm 30 mm
No stock item (MOQ)
922538SustaPEEK FG natural extruded sheet sheet natural40 x 620 x 3000 mm 3.000 mm 620 mm 40 mm
No stock item (MOQ)
922540SustaPEEK FG natural extruded rod rod naturalØ 32 x 3000 mm 3.000 mm 32 mm
No stock item (MOQ)
922952SustaPEEK FG natural extruded rod rod naturalØ 85 x 1000 mm 1.000 mm 85 mm
No stock item (MOQ)
923494SustaPEEK FG natural extruded rod rod naturalØ 140 x 3000 mm 3.000 mm 140 mm
No stock item (MOQ)
923499SustaPEEK FG natural extruded rod rod naturalØ 120 x 3000 mm 3.000 mm 120 mm
No stock item (MOQ)
925393SustaPEEK FG natural extruded rod rod naturalØ 75 x 3000 mm 3.000 mm 75 mm
No stock item (MOQ)
932584SustaPEEK FG natural extruded sheet sheet natural50 x 620 x 1000 mm 1.000 mm 620 mm 50 mm
No stock item (MOQ)
933332SustaPEEK FG natural extruded tubular bar tubular bar naturalØ 50/30 x 3000 mm 3.000 mm 50 mm 30 mm
No stock item (MOQ)
933333SustaPEEK FG natural extruded tubular bar tubular bar naturalØ 45/25 x 3000 mm 3.000 mm 45 mm 25 mm

Technical Specifications SustaPEEK FG natural

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,31
Water absorptionDIN EN ISO 62%0,2
Flammability (Thickness 3 mm / 6 mm)UL 94V0 / V0
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa110
Elongation at breakDIN EN ISO 527%20
Tensile modulus of elasticityDIN EN ISO 527MPa4000
Shore hardnessDIN EN ISO 868scale D88
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C343
Thermal conductivityDIN 52612-1W / (m * K)0,25
Thermal capacityDIN 52612kJ / (kg * K)1,34
Coefficient of linear thermal expansionDIN 5375210-6 / K50
Service temperature, long termAverage°C-60 … 250
Service temperature, short term (max.)Average°C310
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C152
Test MethodUnitGuideline Value
Dielectric constantIEC 602503,2
Dielectric dissipation factor (50 Hz)IEC 602500,001
Volume resistivityDIN EN 62631-3-1Ohm * cm4,9 * 1016
Surface resistivityDIN EN 62631-3-2Ohm1018
Dielectric strengthIEC 60243kV / mm20
