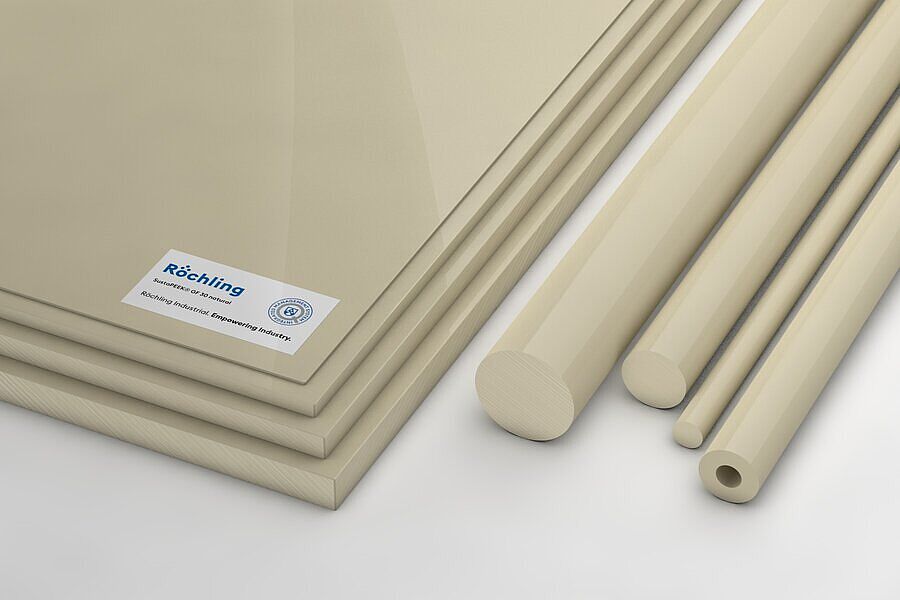

SustaPEEK GF 30 - ASTM
PEEK
Characteristics
- High rigidity at good dimensional stability
- Very low creep tendency
- High continuous service temperature
Technical Specifications SustaPEEK GF 30 - ASTM
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ASTM D792 | g / cm3 | 1.51 |
| Water Absorption 24 hours | ASTM D570 | % | 0.1 |
| Water Absorption Saturation | ASTM D570 | % | 0.3 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hardness | ASTM D2240 | Shore D | 86 |
| Tensile Strength at yield 73°F | ASTM D638 | psi | 24000 |
| Tensile Modulus | ASTM D638 | psi | 1300000 |
| Elongation at Break | ASTM D638 | % | 3 |
| Flexural Strength | ASTM D790 | psi | 28000 |
| Flexural Modulus | ASTM D790 | psi | 1350000 |
| Compressive Strength | ASTM D695 | psi | 26000 |
| Rockwell Hardness | ASTM D785 | 105 | |
| Rockwell Hardness | ASTM D785 | R | 126 |
| Shear Strength | ASTM D732 | psi | 14000 |
| Izod Impact, Notched | ASTM D256 | ft-lb/in | 1.4 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal Conductivity | in/hr/ft2 /°F | 2.98 | |
| Coefficient of Linear Thermal Expansion | ASTM D696 | in/in/°F x10-5 | 1.2 |
| Melting Point | ASTM D789 | °F | 645 |
| Continuous Service Temperature, Air | °F | 510 | |
| Deflection Temperature at 1.8Mpa (264psi) | ASTM D648 | °F | 500 |
| Flammability, UL94 | 1/8 inch | V-0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric strength | ASTM D149 | V/mil | 500 |
| Surface resistivity | ASTM D257 | Ohm/cm | >1013 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| FDA | No | ||
| NSF | No | ||
| USDA | No |
