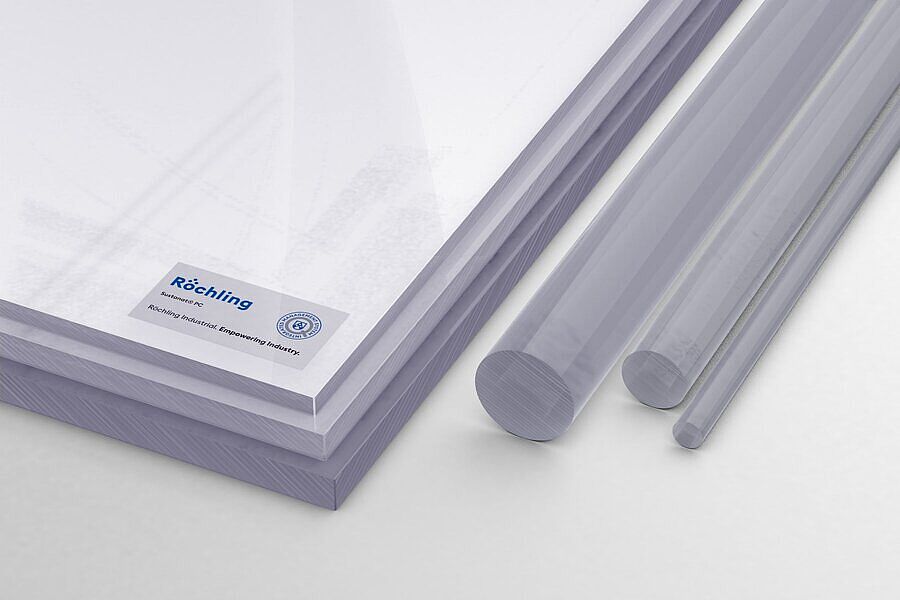

Sustanat® PC - ASTM
PC
Characteristics
- Good dimensional stability
- Low moisture absorption
- High stiffness
Technical Specifications Sustanat® PC - ASTM
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ASTM D792 | g / cm3 | 1.2 |
| Water Absorption 24 hours | ASTM D570 | % | 0.15 |
| Dissipation Factor | ASTM D150 | 1MHz | 0.006 |
| Water Absorption Saturation | ASTM D570 | % | 0.35 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hardness | ASTM D2240 | Shore D | 80 |
| Tensile Strength at yield 73°F | ASTM D638 | psi | 10000 |
| Tensile Modulus | ASTM D638 | psi | 320000 |
| Elongation at Break | ASTM D638 | % | 75 |
| Flexural Strength | ASTM D790 | psi | 13000 |
| Flexural Modulus | ASTM D790 | psi | 340000 |
| Compressive Strength | ASTM D695 | psi | 11500 |
| Rockwell Hardness | ASTM D785 | 75 | |
| Rockwell Hardness | ASTM D785 | R | 126 |
| Shear Strength | ASTM D732 | psi | 9000 |
| Izod Impact, Notched | ASTM D256 | ft-lb/in | 10 |
| Coefficient of Friction, Dynamic | 0.38 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal Conductivity | in/hr/ft2 /°F | 1.3 | |
| Coefficient of Linear Thermal Expansion | ASTM D696 | in/in/°F x10-5 | 3.8 |
| Melting Point | ASTM D789 | °F | 310 |
| Continuous Service Temperature, Air | °F | 250 | |
| Deflection Temperature at 1.8Mpa (264psi) | ASTM D648 | °F | 280 |
| Deflection Temperature at 1.8Mpa (66psi) | ASTM D648 | °F | 295 |
| Flammability, UL94 | 1/8 inch | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | ASTM D150 | 1MHz | 3.2 |
| Dielectric strength | ASTM D149 | V/mil | 380 |
| Surface resistivity | ASTM D257 | Ohm/cm | >1013 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| FDA | No | ||
| NSF | No | ||
| USDA | No |
