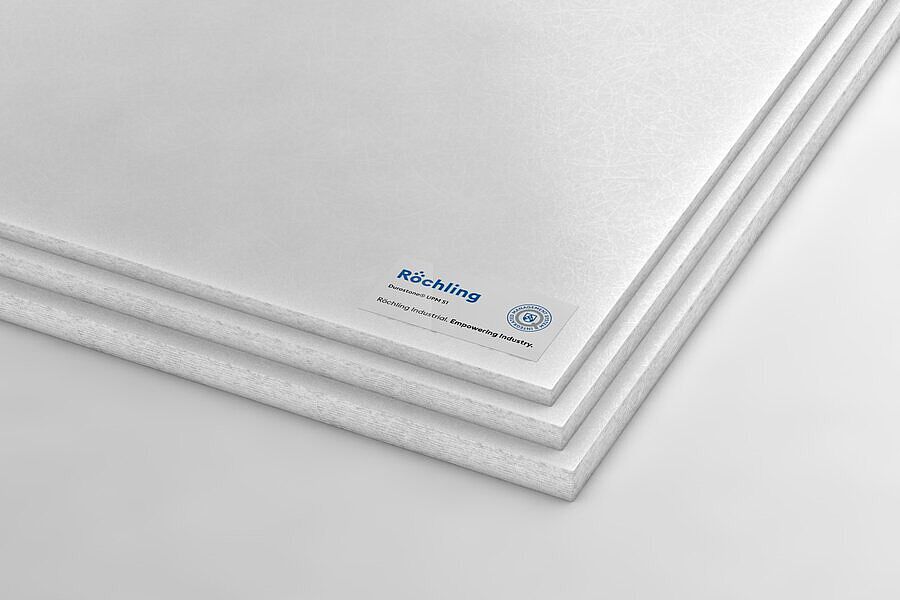

Durostone® UPM S1
GFK-UP
Characteristics
- SMC high-pressure laminate
- Special polyester (UP) resin matrix reinforced with an e-glass roving mat
- High mechanical strength
- High dielectric strength
- Flame retardant
Industries
Semiconductor High and low temperature
Technical Specifications Durostone® UPM S1
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ISO 1183 | g / cm3 | 2,0 |
| Flexural strength ┴ | ISO 178 | MPa | 200 |
| Modulus of elasticity in flexion ┴ | ISO 178 | MPa | 15000 |
| Compressive strength ┴ | ISO 604 | MPa | 350 |
| Compressive strength II | ISO 604 | MPa | 180 |
| Tensile strength II | ISO 527 | MPa | 120 |
| Impact strength II (Charpy) | ISO 179 | kJ / m2 | 100 |
| Delamination force II | DIN 53463 | N | 2600 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Flammability | UL 94 | / | V0 / 3mm |
| Smoke density & toxicity, class | NF F 16-101 | / | F0 |
| Fire test, class | NF P 92-501 | / | M1 |
| Coefficient of linear expansion ┴ | TMA (Mettler) | 10-6 x K-1 | 40 - 60 |
| Coefficient of linear expansion II | TMA (Mettler) | 10-6 x K-1 | 10 - 20 |
| Temperature index | IEC 60216 | T.I. | 155 |
| Insulation class | IEC 60085 | / | F |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Water absorption (4mm thickness) | ISO 62 | % | 0,2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Electric strength 90°C under oil ┴ | IEC 60243 | kV / mm | 13 |
| Electric strength 90°C under oil II | IEC 60243 | kV/25mm | 75 |
| Relative permittivity (50 Hz) | IEC 60250 | εr | ≈ 4,5 |
| Dielectric loss factor (50 Hz) | IEC 60250 | tan δ | ≈ 0,01 |
| Specific surface resistance | IEC 60093 | Ω | 1013 |
| Specific volume resistance | IEC 60093 | Ω x cm | 1013 |
| Comparative tracking index | IEC 60112 | CTI | 600 M |
