DuroProtect® 1000
GFK-UP

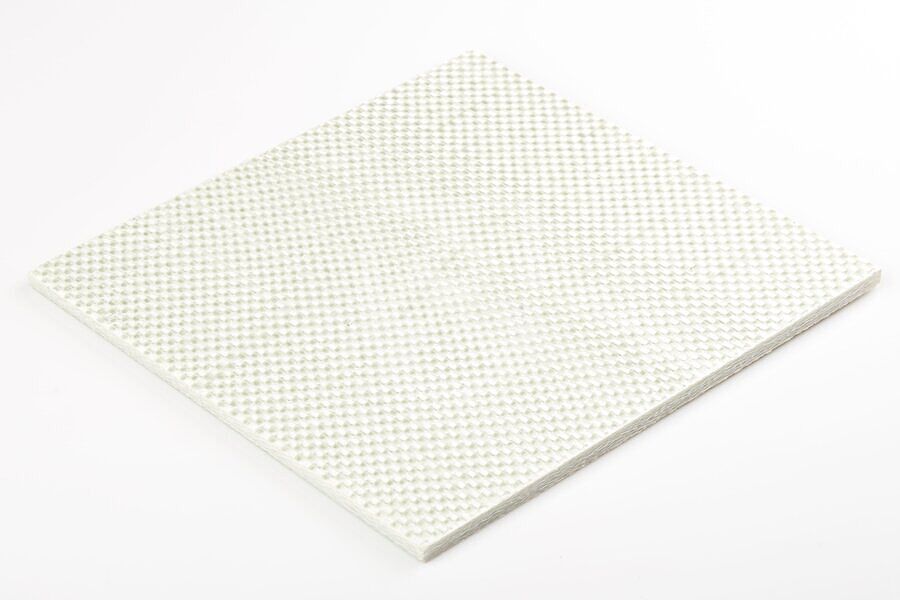

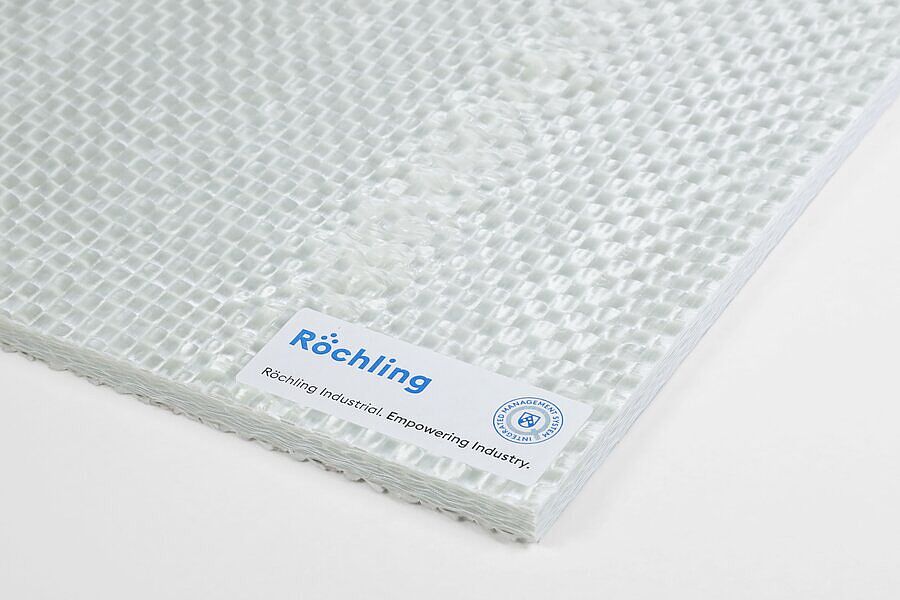

DuroProtect® 1000 is a fiberglass-reinforced composite manufactured to serve as a ballistic protection material. Constructed from layered, reinforced structural polyester laminate, DuroProtect® 1000 panels are designed for high-performance defense, engineered to progressively delaminate upon impact, distorting and flatt ening incoming projectiles while dispersing their energy to reduce penetration.
DuroProtect® 1000 can be added to virtually any new build, or retrofi t to most existing structures for a critical layer of protection. Whether for commercial, residential, or military applications, DuroProtect® 1000 delivers protection that safeguards what matt ers most from ballistic threats.
About DuroProtect® 1000
- Bullet-resistant material
- Corrosion-resistant
- UL-752 Certified Levels 1-7 and 8 BR
- Flame and fire-rated
- Made in the U.S.
For use in:
- Commercial
- Residential
- Military
Learn more about DuroProtect® and common areas of application here.
Industries
Application Examples
Technical Specifications DuroProtect® 1000
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Part Number | 1717 | ||
| Standard Color | Off White | ||
| UL Recognition File Number | BP10588 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Flexural Strength, lengthwise | ASTM D 638 | psi | 16,800 |
| Flexural Modulus, lengthwise | ASTM D 638 | psi X 106 | 2.7 |
| Compressive Strength | ASTM D 695 | psi | 70,000 |
| Tensile Modulus | ASTM D 638 | psi X 106 | 3.75 |
| IZOD Impact Strength (notched) | ASTM D 256 | ft. lb./in. | 52 |
| Tensile Strength, lengthwise | ASTM D 638 | psi | 45,000 |
| Tensile Strength, crosswise | ASTM D 638 | psi | 40,000 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Coefficient of Thermal Expansion | ASTM D 696 | (in./in.°C) x 10-5 | 2.0 |
| Thermal Conductivity | ASTM C 177 | BTUIn/HrFt2 °F | 2.0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| UL Subject 94 | UL 94 | V0* |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Water Absorption | ASTM D 570 | % by wt. | 1.4 |
| Specific Gravity | ASTM D 792 | 2.0 | |
| Barcol Hardness | ASTM D 2583 | 50 |
