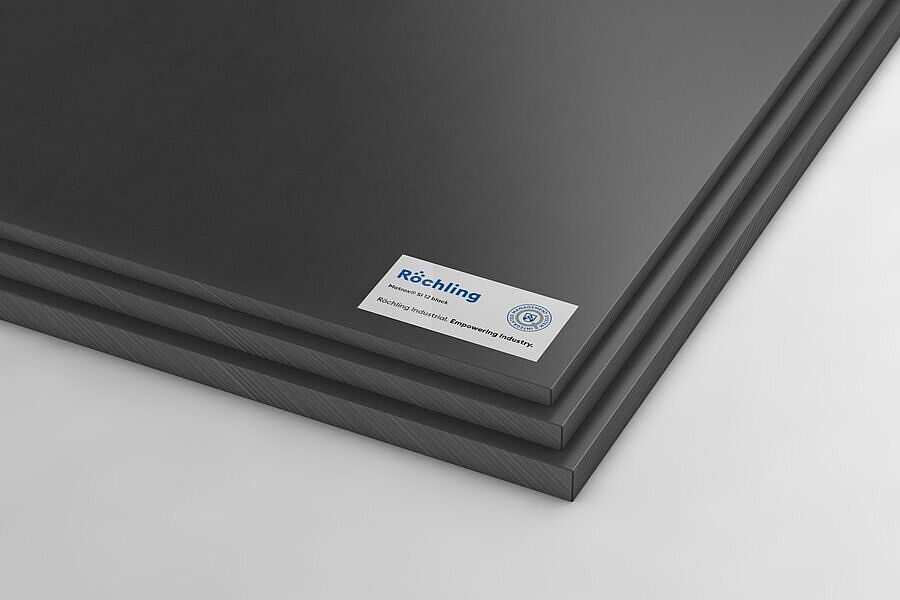

Matrox® SI 12 black

PE — PE-UHMW - PE 1000

Matrox^® is outstanding for its extremely low coefficient of friction and high wear resistance and so optimally meets requirements for the lining of silos and bunkers.

black, similar RAL 9004

sheet

Characteristics

Extremely low coefficient of friction
Very good abrasion and wear resistance
Good impact strength

Industries

Bulk Material Handling

Application Examples

Bunker and silo linings

In bunkers and silos large drop heights and the hard impact of the bulk goods cause extreme wear on the lining. The hopper-shaped outlet leads to core and mass flow problems. Safety requirements or the need to handle food, for instance, place further demands on the selection of the appropriate lining materials.

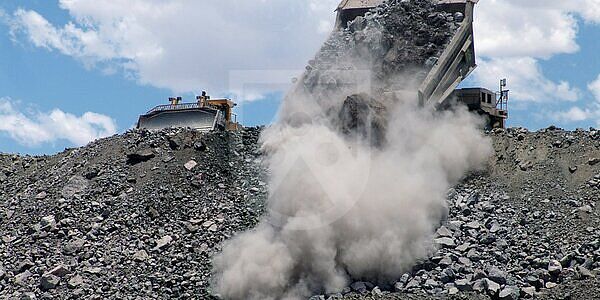

Linings for mine vehicles

Wherever bulk goods are transported, stored or further processed, wear and caking cause standstills in the work process. The flow of materials stops and wear destroys the body of the dumper. Our material Matrox^®combines the best surface friction with maximum abrasion resistance to improve the flow rating of your bulk goods and prevent abrasion even in the harshest conditions.

Highly wear-resistant linings

We have developed a lining system for supply silos of biogas facilities specifically for the biogas sector: Our Matrox^®-linings permanently prevent corrosion and wear. The material offers high chemicals resilience, outstanding wear resilience and excellent sliding properties that promote material flow.

Wagon linings

The universal use of freight wagons for a wide variety of bulk goods demands a balance between protecting against wear and minimizing friction. In principle we recommend our Matrox^® SI 12 for hopper, saddle or standard type wagons. Particular bulk goods may create a requirement for special linings in certain circumstances. We would be happy to advise.

Matrox® wagon linings

The use of freight wagons for a wide variety of bulk materials demands a balance between protecting against wear and minimising friction. For hopper, saddle or standard type wagons, we recommend our Matrox^® material. Matrox^® combines the best surface friction with the highest abrasion resistance and thus promotes the optimal material flow of your bulk goods.

Variants

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	366185	Matrox® SI 12 black pressed	sheet	sheet	black, similar RAL 9004	6.000 x 2.500 x 13 mm	6,000 mm	2,500 mm	13 mm
No stock item (MOQ)	438047	Matrox® SI 12 black pressed	sheet	sheet	black, similar RAL 9004	3.000 x 2.000 x 50 mm	3,000 mm	2,000 mm	50 mm
No stock item (MOQ)	438451	Matrox® SI 12 black pressed	sheet	sheet	black, similar RAL 9004	6.000 x 2.000 x 50 mm	6,000 mm	2,000 mm	50 mm
No stock item (MOQ)	475548	Matrox® SI 12 black pressed	sheet	sheet	black, similar RAL 9004	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	475600	Matrox® SI 12 black pressed	sheet	sheet	black, similar RAL 9004	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm

Technical Specifications Matrox® SI 12 black

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,94
Water absorption	DIN EN ISO 62	%	<0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	≥4

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>19
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>700
Notched impact strength	DIN EN ISO 11542-2	kJ / m²	>70
Shore hardness	DIN EN ISO 868	scale D	>63
Wear resistance	Sand-slurry		125
Sand Slurry	1018 Steel=10		∼ 120

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-100 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0004
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40
