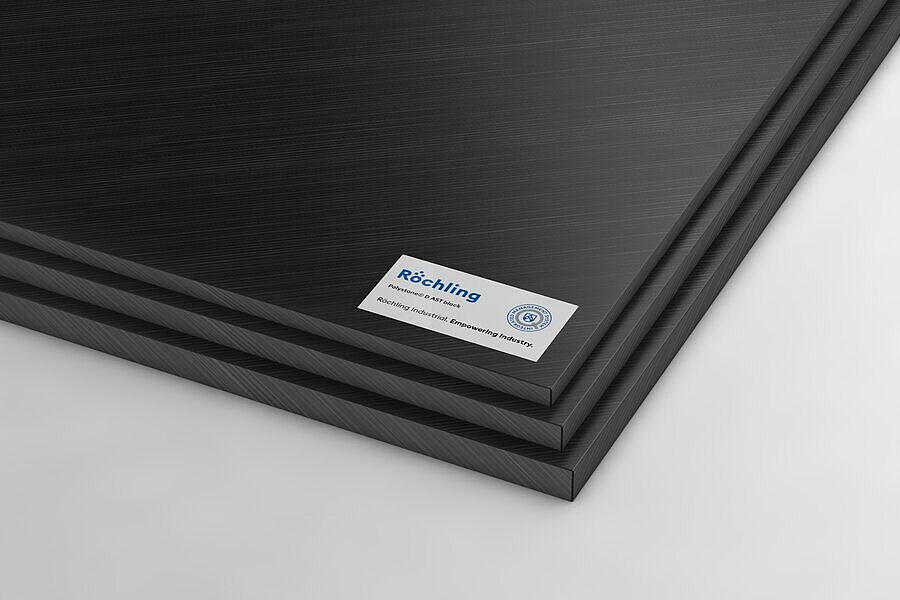

Polystone® D AST black
PE — PE-HD - PE 500
Polystone® D is a high-molecular polyethylene (PE-HMW/PE 500) which is outstanding for its good mechanical properties such as scratch- and cut resistance and excellent acid resistance. The material is used in various branches of industry such as the foodstuffs and bottling industry or in medical technology.
Polystone® D AST black is a material with permanently antistatic setting and a specially balanced property profile. The electrostatic surface charge is reduced, dust is not attracted and no electrostatic discharge occurs.
black, similar RAL 9005
sheet
Characteristics
- Good sliding properties
- Good mechanical properties
- Good wear resistance
- Antistatic
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 229153 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 2.000 x 1.000 x 10 mm | 2,000 mm | 1,000 mm | 10 mm | ||
| No stock item (MOQ) | 229154 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 2.000 x 1.000 x 15 mm | 2,000 mm | 1,000 mm | 15 mm | ||
| No stock item (MOQ) | 229155 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 2.000 x 1.000 x 20 mm | 2,000 mm | 1,000 mm | 20 mm | ||
| No stock item (MOQ) | 239710 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 2.000 x 1.000 x 25 mm | 2,000 mm | 1,000 mm | 25 mm | ||
| No stock item (MOQ) | 249085 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 2.000 x 1.000 x 30 mm | 2,000 mm | 1,000 mm | 30 mm | ||
| No stock item (MOQ) | 277485 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 6.000 x 2.000 x 10 mm | 6,000 mm | 2,000 mm | 10 mm | ||
| No stock item (MOQ) | 277486 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 6.000 x 2.000 x 15 mm | 6,000 mm | 2,000 mm | 15 mm | ||
| No stock item (MOQ) | 298756 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 6.000 x 2.000 x 25 mm | 6,000 mm | 2,000 mm | 25 mm | ||
| No stock item (MOQ) | 346889 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 6.000 x 2.500 x 30 mm | 6,000 mm | 2,500 mm | 30 mm | ||
| No stock item (MOQ) | 409657 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 2.000 x 1.000 x 55 mm | 2,000 mm | 1,000 mm | 55 mm | ||
| No stock item (MOQ) | 419457 | Polystone® D AST black pressed | sheet | sheet | black, similar RAL 9005 | 6.000 x 1.000 x 60 mm | 6,000 mm | 1,000 mm | 60 mm |
Technical Specifications Polystone® D AST black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,96 |
| Water absorption | DIN EN ISO 62 | % | <0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >26 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1200 |
| Shore hardness | DIN EN ISO 868 | scale D | 65 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -100 … 80 |
| Service temperature, short term (max.) | Average | °C | 80 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 79 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | <109 |
| Surface resistivity | DIN EN 62631-3-2 | Ohm | <109 |
