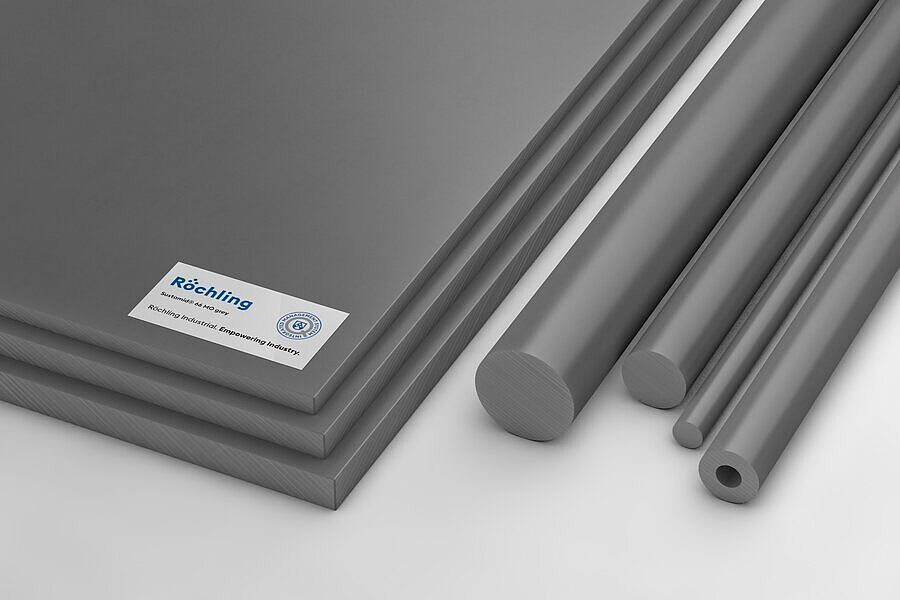

Sustamid® 66 MO grey

PA — PA 66

anthracite

sheetrod

Characteristics

High hardness and rigidity
high absorption of moisture of up to 2.7 % in standard atmosphere
High abrasion resistance
Good sliding properties

Industries

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	102796	Sustamid® 66 MO grey calendered	sheet	sheet	anthracite	6,35 x 1220 x 2440 mm	2,440 mm	1,220 mm	6.35 mm
No stock item (MOQ)	102799	Sustamid® 66 MO grey calendered	sheet	sheet	anthracite	9,53 x 1220 x 2440 mm	2,440 mm	1,220 mm	9.53 mm
No stock item (MOQ)	715061	Sustamid® 66 MO grey calendered	sheet	sheet	anthracite	3,18 x 1220 x 2440 mm	2,440 mm	1,220 mm	3.18 mm
No stock item (MOQ)	715084	Sustamid® 66 MO grey calendered	sheet	sheet	anthracite	4,76 x 1220 x 2440 mm	2,440 mm	1,220 mm	4.76 mm
No stock item (MOQ)	102047	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	16 x 620 x 1000 mm	1,000 mm	620 mm	16 mm
No stock item (MOQ)	102048	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	20 x 620 x 1000 mm	1,000 mm	620 mm	20 mm
No stock item (no MOQ)	102054	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	12 x 620 x 3000 mm	3,000 mm	620 mm	12 mm
No stock item (MOQ)	112133	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 10 x 3000 mm	3,000 mm		10 mm
No stock item (MOQ)	112142	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 20 x 3000 mm	3,000 mm		20 mm
No stock item (MOQ)	112144	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 22 x 3000 mm	3,000 mm		22 mm
No stock item (MOQ)	112166	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 45 x 3000 mm	3,000 mm		45 mm
No stock item (MOQ)	112167	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 50 x 3000 mm	3,000 mm		50 mm
No stock item (MOQ)	601947	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	25 x 620 x 1000 mm	1,000 mm	620 mm	25 mm
No stock item (MOQ)	604619	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 40 x 3000 mm	3,000 mm		40 mm
No stock item (MOQ)	626919	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	12 x 620 x 2000 mm	2,000 mm	620 mm	12 mm
No stock item (MOQ)	650903	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	40 x 620 x 3000 mm	3,000 mm	620 mm	40 mm
No stock item (MOQ)	674869	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	10 x 620 x 1000 mm	1,000 mm	620 mm	10 mm
No stock item (MOQ)	800075	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	35 x 620 x 3000 mm	3,000 mm	620 mm	35 mm
No stock item (MOQ)	800190	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	16 x 620 x 3000 mm	3,000 mm	620 mm	16 mm
No stock item (MOQ)	800191	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	20 x 620 x 3000 mm	3,000 mm	620 mm	20 mm
No stock item (MOQ)	800192	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	10 x 620 x 3000 mm	3,000 mm	620 mm	10 mm
No stock item (MOQ)	800528	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 18 x 3000 mm	3,000 mm		18 mm
No stock item (MOQ)	800637	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 30 x 3000 mm	3,000 mm		30 mm
No stock item (MOQ)	800967	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	803789	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	12 x 620 x 1000 mm	1,000 mm	620 mm	12 mm
No stock item (MOQ)	803792	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	40 x 620 x 1000 mm	1,000 mm	620 mm	40 mm
No stock item (MOQ)	809947	Sustamid® 66 MO grey extruded	rod	rod	anthracite	Ø 22 x 1000 mm	1,000 mm		22 mm
No stock item (MOQ)	929094	Sustamid® 66 MO grey extruded	sheet	sheet	anthracite	35 x 620 x 1000 mm	1,000 mm	620 mm	35 mm

Technical Specifications Sustamid® 66 MO grey calendered

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,15
Water absorption	DIN EN ISO 62	%	2,8
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB / V2

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	90
Elongation at break	DIN EN ISO 527	%	20
Tensile modulus of elasticity	DIN EN ISO 527	MPa	3400
Notched impact strength	DIN EN ISO 179	kJ / m²	2
Shore hardness	DIN EN ISO 868	scale D	83

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	260
Thermal conductivity	DIN 52612-1	W / (m * K)	0,23
Thermal capacity	DIN 52612	kJ / (kg * K)	1,70
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	80
Service temperature, long term	Average	°C	-30 … 95
Service temperature, short term (max.)	Average	°C	170
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	100

Technical Specifications Sustamid® 66 MO grey extruded

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,15
Water absorption	DIN EN ISO 62	%	2,8
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB / V2

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	90
Elongation at break	DIN EN ISO 527	%	20
Tensile modulus of elasticity	DIN EN ISO 527	MPa	3400
Notched impact strength	DIN EN ISO 179	kJ / m²	2
Shore hardness	DIN EN ISO 868	scale D	83

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	260
Thermal conductivity	DIN 52612-1	W / (m * K)	0,23
Thermal capacity	DIN 52612	kJ / (kg * K)	1,70
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	80
Service temperature, long term	Average	°C	-30 … 95
Service temperature, short term (max.)	Average	°C	170
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	100
