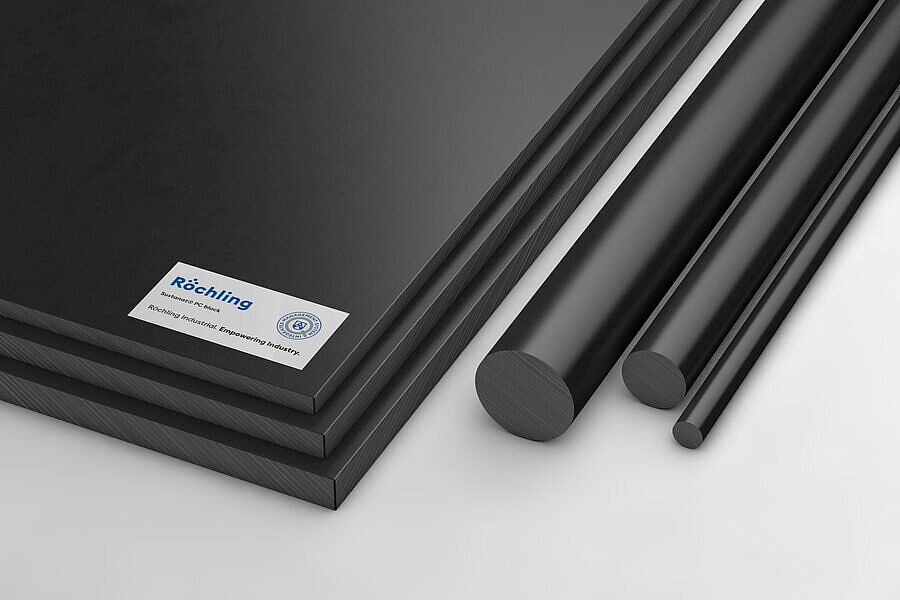

Sustanat® PC black
PC
noir
jonc
Characteristics
- Low moisture absorption
- High stiffness
- High hardness
- High heat deflection temperature
- good formability
- good electrical insulating properties
- Good impact strength
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 125037 | Sustanat® PC black extruded | jonc | jonc | noir | Ø 100 x 3000 mm | 3 000 mm | 100 mm | |||
| No stock item (MOQ) | 806501 | Sustanat® PC black extruded | jonc | jonc | noir | Ø 100 x 1000 mm | 1 000 mm | 100 mm |
Technical Specifications Sustanat® PC black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Densité | DIN EN ISO 1183-1 | g / cm3 | 1,20 |
| Water absorption | DIN EN ISO 62 | % | 0,2 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 65 |
| Elongation at break | DIN EN ISO 527 | % | 80 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2300 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 20 |
| Shore hardness | DIN EN ISO 868 | scale D | 82 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | - |
| Température de transistion vitreuse | ISO 11357-3 | °C | 150 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,21 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,20 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 70 |
| Service temperature, long term | Average | °C | -40 … 115 |
| Service temperature, short term (max.) | Average | °C | 140 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 135 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3 | |
| Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,001 | |
| Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | 1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ohm | 1015 |
| Comparative tracking index | IEC 60112 | 275 | |
| Dielectric strength | IEC 60243 | kV / mm | 30 |
