New: antistatic sliding material LubX® AST black

Antistatic sliding material: With its antistatic properties, LubX® AST black improves the economic efficiency of your transport processes and allows controlled dissipation of electrostatic charges

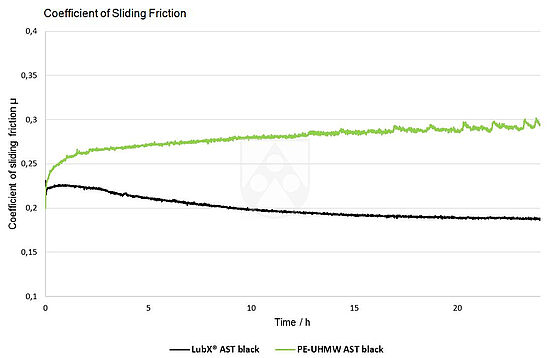

In comparison to standard antistatic materials for machine construction, LubX® AST black, with a sliding friction coefficient of µ: 0.19, offers more than 30% better sliding properties. Sliding friction coefficient (dry friction). Validated on Röchling tribology equipment in conditions typical of real-life applications. Speed: 0.5 m/s, surface pressure: 0.5 MPa, duration of testing: 24h

The controlled dissipation of electrostatic charges is increasingly important in conveying technology. Conveyor systems for sensitive goods, such as electronic components, have to be constructed from materials that avoid static build-up by means of controlled dissipation. Previously, however, materials with antistatic properties had reduced sliding properties.

Due to the high demand, we have now equipped our proven sliding material LubX® with antistatic properties and developed the new antistatic sliding material LubX® AST black. LubX® AST black combines excellent tribological properties with controlled electrostatic dissipation and is specifically designed for machines in conveying systems that have to be operated at high speeds. In comparison to standard antistatic materials for machine construction, LubX® AST black, with a sliding friction coefficient of µ: 0.19, offers more than 30% better sliding properties. In combination with permanent antistatic properties, LubX® AST black improves the economic efficiency of your transport processes and allows controlled dissipation.

Properties:

  • Surface resistance < 109
  • Improved sliding properties
  • Good dry running properties
  • Resistance to wear

Advantages

  • Protection against static charges
  • Reduced soiling resulting from static charges, no attraction of dirt particles
  • Short running-in period
  • Reduced heat generation
  • Long service life

Product range:

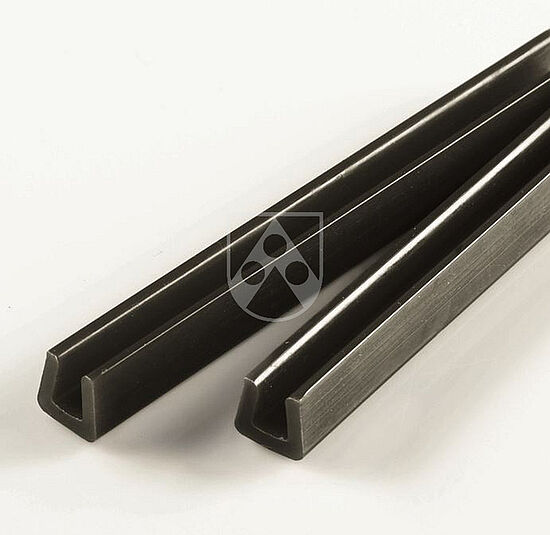

  • Extruded profiles
  • Sheets up to a size of 6,000 x 2,500 mm
  • Round rods up to a diameter of 130 mm
  • Machining on CNC machining centres according to customer specifications

Contact: We would be happy to advise you on the properties and possible applications of LubX® AST black. Just write to: lubx(at)roechling-plastics.com
