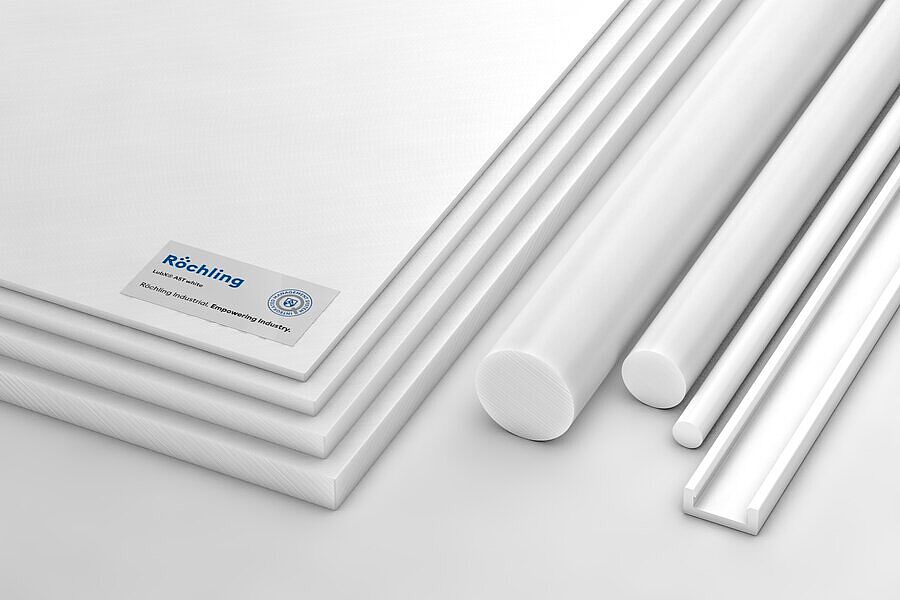

LubX® AST white
PE — PE-UHMW - PE 1000
white, similar RAL 9010cream, similar RAL 9001
sheet
Characteristics
- Antistatic
- Good sliding properties
- Excellent dry-running properties
- Good wear resistance
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 402795 | LubX® AST white pressed | sheet | sheet | white, similar RAL 9010 | 3000 x 2000 x 25 mm | 3,000 mm | 2,000 mm | 25 mm | ||
| No stock item (MOQ) | 403077 | LubX® AST white pressed | sheet | sheet | white, similar RAL 9010 | 6000 x 2000 x 25 mm | 6,000 mm | 2,000 mm | 25 mm | ||
| No stock item (MOQ) | 406588 | LubX® AST white pressed | sheet | sheet | cream, similar RAL 9001 | 6000 x 2500 x 12 mm | 6,000 mm | 2,500 mm | 12 mm | ||
| No stock item (MOQ) | 407384 | LubX® AST white pressed | sheet | sheet | white, similar RAL 9010 | 2.000 x 1.000 x 12 mm | 2,000 mm | 1,000 mm | 12 mm | ||
| No stock item (MOQ) | 415993 | LubX® AST white pressed | sheet | sheet | white, similar RAL 9010 | 2.000 x 1.000 x 10 mm | 2,000 mm | 1,000 mm | 10 mm | ||
| No stock item (MOQ) | 416302 | LubX® AST white pressed | sheet | sheet | white, similar RAL 9010 | 6.000 x 2.000 x 10 mm | 6,000 mm | 2,000 mm | 10 mm | ||
| No stock item (MOQ) | 427562 | LubX® AST white pressed | sheet | sheet | white, similar RAL 9010 | 2.000 x 1.000 x 8 mm | 2,000 mm | 1,000 mm | 8 mm | ||
| No stock item (MOQ) | 427565 | LubX® AST white pressed | sheet | sheet | white, similar RAL 9010 | 6.000 x 2.000 x 8 mm | 6,000 mm | 2,000 mm | 8 mm |
Technical Specifications LubX® AST white
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 0,95 |
| Water absorption | DIN EN ISO 62 | % | <0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Non-toxicity | + | ||
| Moulding Compound PE | DIN ISO 1872-1 | UHMW-PE-QCD 35-3-4 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 15 |
| Elongation at yield stress | DIN EN ISO 527 | % | 23 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 510 |
| Impact strength | DIN EN ISO 179 | kJ / m2 | 50 |
| Shore hardness | DIN EN ISO 868 | scale D | 60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 133 – 135 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 - 230 (*) |
| Service temperature, long term | Average | °C | -150 … 80 (*) |
| Service temperature, short term (max.) | Average | °C | 130 (*) |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | ≤109 |
| Surface resistivity | DIN EN 62631-3-2 | Ohm | ≤109 |
