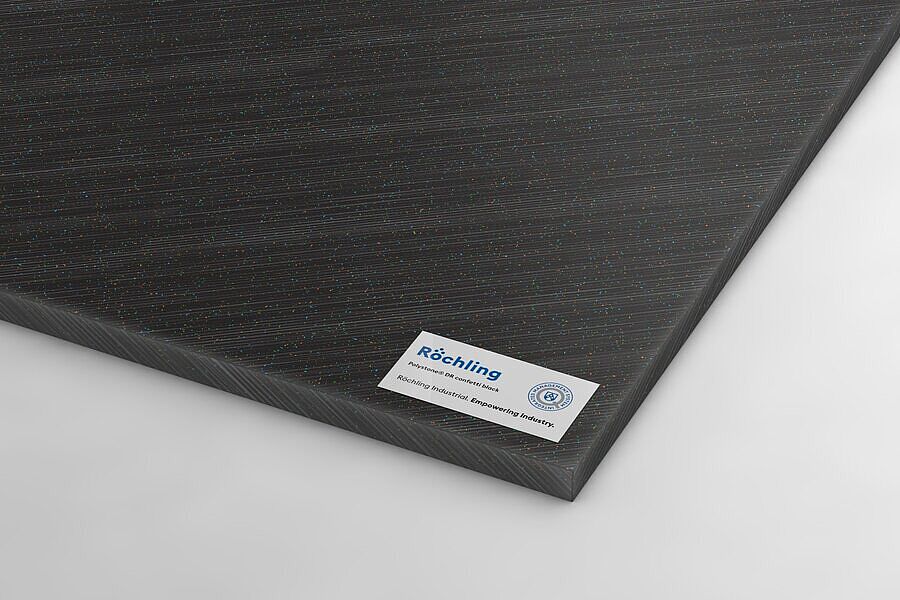

Polystone® DR confetti black
PE — PE-HD - PE 500
Polystone® DR is a Polystone® D material with repro content.
Characteristics
- Good sliding properties
- Good mechanical properties
Industries
Technical Specifications Polystone® DR confetti black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,94 |
| Water absorption | DIN EN ISO 62 | % | <0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >19 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >700 |
| Shore hardness | DIN EN ISO 868 | scale D | >60 |
| Compressive strength | ISO 3597-3 | N/mm² | 3 - 6 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,41 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Service temperature, long term | Average | °C | -20 … 80 |
