Polystone® D grey

PE — PE-HD - PE 500

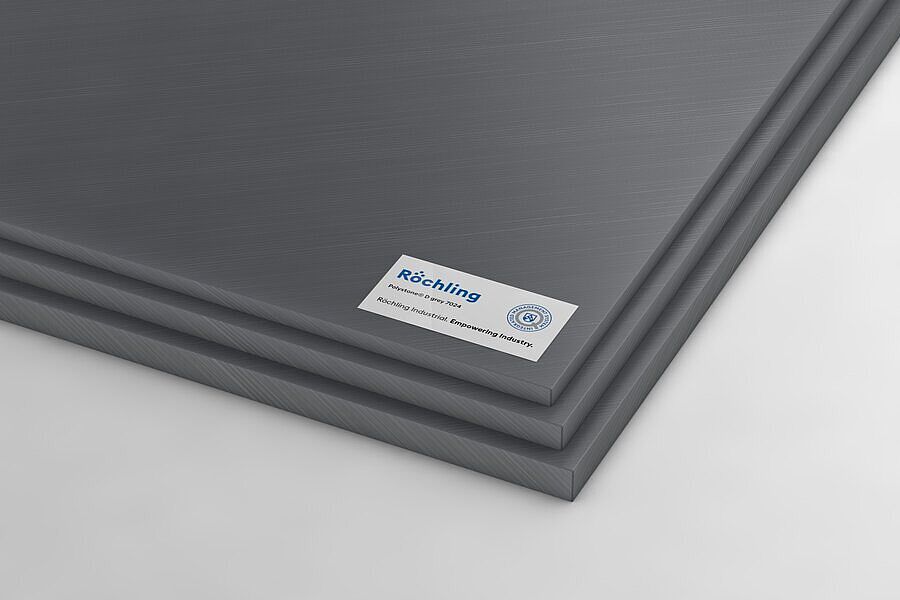

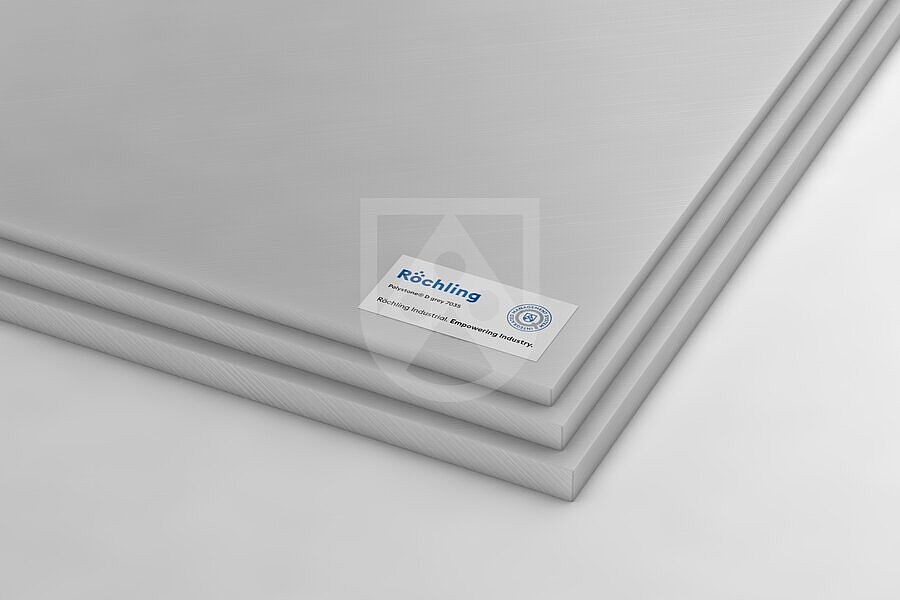

Polystone^® D is a high-molecular polyethylene (PE-HMW/PE 500) which is outstanding for its good mechanical properties such as scratch- and cut resistance and excellent acid resistance. The material is used in various branches of industry such as the foodstuffs and bottling industry or in medical technology.

graphite grey, similar RAL 7024agate grey, similar RAL 7038light grey, similar RAL 7035window grey, similar RAL 7040

All colors

sheet

Characteristics

Good mechanical properties
Physiologically safe
Good wear resistance
Good cutting resistance
High scratch resistance
Good sliding properties

Industries

Application Examples

Curved pool grating

Curved pool grating made of Polystone^® D.

Straight pool grating

Straight pool grating installed in Harbourne Pool, Birmingham, UK.

Swimming pool gratings for overflow channels

Channel gratings made from Polystone^® D and machined specifically to suit the shape of your tank. They meet DIN 51097 class C requirements, are available in many colours and boast high resistance to fracture and corrosion, giving them a long life.

Seats and benches

Seats and benches made of Polystone^® D and machined to your particular requirements offer high resistance to chlorine, are scratch-resistant and have a very long life. They are also available in many different colours, lending your swimming baths a look all of its own.

ROV components

Remote Offshore Vehicles (ROVs) are continuous being designed to operate in ever increasing depths. To aid this, we supply numerous corrosion resistant, key components used to assemble an ROV. This includes the naturally buoyant Polystone^® P and Polystone^®D used for the side frames. While electronics boxes made from Sustarin^® C have replaced metallic components, thanks to the materials lower weight and corrosion resistance. With the same corrosion resistance, low weight and excellent impact resistance leading to the use of Sustamid^® 6G for thruster nozzles and ROV buckets.

Grills, manhole covers and frames

Our grills, manhole covers and frames are made from Polystone^® D. Great for high traffic areas as they are strong and durable, they are also corrosion free so suitable for wet or dry areas. As they are lightweight they are not problematic to lift for access.

Playpens and toddler slides

Playpens and toddler slides made of Polystone^® D are safe, hygienic and easy to clean, and hard-wearing.

Pool steps and access ramps

Custom made for your application Polystone^® D pool steps and access ramps are slip resistant, durable and available in single or dual colourways.

Slide rails

Conveyor systems used in fish processing are designed with slide rails made of Polystone^® D. The material is suitable for direct contact with food, is easy to clean and, thanks to its excellent sliding ability, enhances the efficiency of conveyors.

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	210652	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	217235	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	217428	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	2.000 x 1.000 x 15 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	218502	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	2.000 x 1.000 x 17 mm	2,000 mm	1,000 mm	17 mm
No stock item (MOQ)	218503	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	218505	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	2.000 x 1.000 x 74 mm	2,000 mm	1,000 mm	74 mm
No stock item (MOQ)	218506	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	2.000 x 1.000 x 94 mm	2,000 mm	1,000 mm	94 mm
No stock item (MOQ)	235955	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	6.000 x 2.000 x 17 mm	6,000 mm	2,000 mm	17 mm
No stock item (MOQ)	237419	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	2.000 x 1.000 x 22 mm	2,000 mm	1,000 mm	22 mm
No stock item (MOQ)	248095	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	4.000 x 2.000 x 17 mm	4,000 mm	2,000 mm	17 mm
No stock item (MOQ)	248639	Polystone® D grey pressed	sheet	sheet	window grey, similar RAL 7040	2.000 x 1.000 x 40 mm	2,000 mm	1,000 mm	40 mm
No stock item (MOQ)	249612	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	2.000 x 1.000 x 15 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	264824	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	2.000 x 1.000 x 10 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	267497	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	2.000 x 1.000 x 15 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	276743	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	276753	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	6.000 x 2.000 x 15 mm	6,000 mm	2,000 mm	15 mm
No stock item (MOQ)	277187	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	277254	Polystone® D grey pressed	sheet	sheet	iron grey, similar RAL 7011	6.000 x 2.500 x 12 mm	6,000 mm	2,500 mm	12 mm
No stock item (MOQ)	277348	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	6.000 x 2.000 x 22 mm	6,000 mm	2,000 mm	22 mm
No stock item (MOQ)	277585	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	277959	Polystone® D grey pressed	sheet	sheet	window grey, similar RAL 7040	6.000 x 2.500 x 40 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	278157	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	6.000 x 2.000 x 10 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	278228	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	6.000 x 2.000 x 15 mm	6,000 mm	2,000 mm	15 mm
No stock item (MOQ)	282077	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	282106	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	288886	Polystone® D grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	6.000 x 2.000 x 8 mm	6,000 mm	2,000 mm	8 mm
No stock item (MOQ)	290825	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	295955	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	6.000 x 2.000 x 74 mm	6,000 mm	2,000 mm	74 mm
No stock item (MOQ)	309731	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	314054	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	314077	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	6.000 x 2.000 x 94 mm	6,000 mm	2,000 mm	94 mm
No stock item (MOQ)	314195	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	2.000 x 1.000 x 10 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	318310	Polystone® D grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	2.000 x 1.000 x 8 mm	2,000 mm	1,000 mm	8 mm
No stock item (MOQ)	352427	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	355984	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	2.000 x 1.000 x 45 mm	2,000 mm	1,000 mm	45 mm
No stock item (MOQ)	355990	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	6.000 x 2.000 x 45 mm	6,000 mm	2,000 mm	45 mm
No stock item (MOQ)	369827	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	6.000 x 2.000 x 30 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	375024	Polystone® D grey pressed	sheet	sheet	umbra grey, similar RAL 7022	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	402278	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	2.000 x 1.000 x 25 mm	2,000 mm	1,000 mm	25 mm
No stock item (MOQ)	402951	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	6.000 x 2.000 x 25 mm	6,000 mm	2,000 mm	25 mm
No stock item (MOQ)	407709	Polystone® D grey pressed	sheet	sheet	umbra grey, similar RAL 7022	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	415648	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	415675	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	415945	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	6.000 x 2.000 x 30 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	428239	Polystone® D grey pressed	sheet	sheet	window grey, similar RAL 7040	6.000 x 2.000 x 40 mm	6,000 mm	2,000 mm	40 mm
No stock item (MOQ)	430470	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	2.000 x 1.500 x 30 mm	2,000 mm	1,500 mm	30 mm
No stock item (MOQ)	433349	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	2.000 x 1.000 x 10 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	433373	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	6.000 x 2.000 x 10 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	438062	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	3.000 x 1.000 x 123 mm	3,000 mm	1,000 mm	123 mm
No stock item (MOQ)	438561	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	6.000 x 2.000 x 123 mm	6,000 mm	2,000 mm	123 mm
No stock item (MOQ)	440288	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	440303	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	447838	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	3.000 (-0/+100) x 1.250 (+/-30) x 30 mm	3,000 mm	1,250 mm	30 mm
No stock item (MOQ)	449422	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	449446	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	449451	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	6.000 x 2.500 x 30 mm	6,000 mm	2,500 mm	30 mm
No stock item (MOQ)	452070	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	3.000 (-0/+100) x 1.250 (+/-30) x 40 mm	3,000 mm	1,250 mm	40 mm
No stock item (MOQ)	452397	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	6.000 x 2.500 x 40 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	453982	Polystone® D grey pressed	sheet	sheet	window grey, similar RAL 7040	6.000 x 2.500 x 40 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	464417	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	464455	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	469190	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	2.000 x 2.000 x 20 mm	2,000 mm	2,000 mm	20 mm
No stock item (MOQ)	469584	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	2.000 x 1.000 x 10 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	469585	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	2.000 x 1.000 x 15 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	469648	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	6.000 x 2.000 x 10 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	470371	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	6.000 x 2.000 x 40 mm	6,000 mm	2,000 mm	40 mm
No stock item (MOQ)	471129	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	6.000 x 2.000 x 22 mm	6,000 mm	2,000 mm	22 mm
No stock item (MOQ)	476519	Polystone® D grey pressed	sheet	sheet	anthracite grey, similar RAL 7016	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	476545	Polystone® D grey pressed	sheet	sheet	anthracite grey, similar RAL 7016	6.000 x 2.000 x 30 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	481709	Polystone® D grey pressed	sheet	sheet	traffic grey B, similar RAL 7043	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	481710	Polystone® D grey pressed	sheet	sheet	traffic grey B, similar RAL 7043	3.000 (-0/+100) x 1.250 (+/-30) x 30 mm	3,000 mm	1,250 mm	30 mm
No stock item (MOQ)	481769	Polystone® D grey pressed	sheet	sheet	traffic grey B, similar RAL 7043	6.000 x 2.000 x 30 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	481772	Polystone® D grey pressed	sheet	sheet	traffic grey B, similar RAL 7043	6.000 x 2.500 x 30 mm	6,000 mm	2,500 mm	30 mm
No stock item (MOQ)	443540	Polystone® D UV-stabilized grey pressed	sheet	sheet	grey	3.000 (-0/+100) x 1.250 (+/-30) x 40 mm	3,000 mm	1,250 mm	40 mm
No stock item (MOQ)	466948	Polystone® D UV-stabilized grey pressed	sheet	sheet	graphite grey, similar RAL 7024	2.000 x 1.000 x 100 mm	2,000 mm	1,000 mm	100 mm
No stock item (MOQ)	467769	Polystone® D UV-stabilized grey pressed	sheet	sheet	slate grey, similar RAL 7015	6.000 x 2.500 x 14 mm	6,000 mm	2,500 mm	14 mm
No stock item (MOQ)	211355	Polystone® D non-twisting grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	2.000 x 1.000 x 40 mm	2,000 mm	1,000 mm	40 mm
No stock item (MOQ)	211416	Polystone® D non-twisting grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	2.500 x 1.000 x 40 mm	2,500 mm	1,000 mm	40 mm
No stock item (MOQ)	211417	Polystone® D non-twisting grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	2.200 x 1.000 x 40 mm	2,200 mm	1,000 mm	40 mm
Stock item (no MOQ)	217309	Polystone® D non-twisting grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	3.000 x 2.000 x 15 mm	3,000 mm	2,000 mm	15 mm

Technical Specifications Polystone® D grey

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,95
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>27
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>1200
Shore hardness	DIN EN ISO 868	scale D	65

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-100 … 80
Service temperature, short term (max.)	Average	°C	80
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0002
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40

Downloads

Technical Data Sheet Polystone® D grey

EC Compliance Polystone® D grey

FDA Compliance Polystone® D grey
