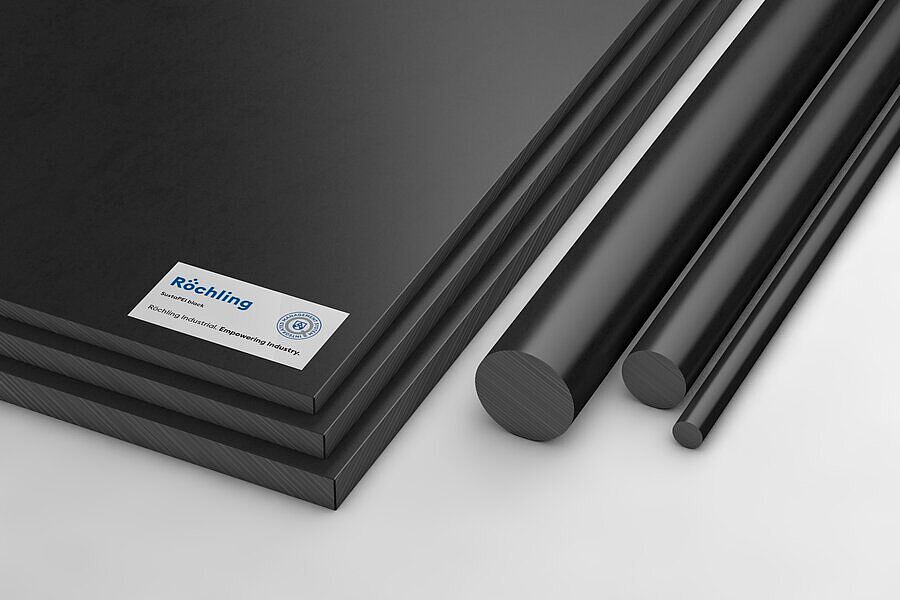

SustaPEI black

PEI

black

rodsheet

Characteristics

High stiffness even at high temperatures
Very low smoke development
Good resistance against high energy radiation

Industries

Application Examples

Subsea connectors

As subsea equipment becomes more complicated, it is imperative that connectors both electrical & communication are machined and produced using material of the highest quality. SustaPEEK^®, SustaPEI^® and Sustarin^® C are the optimum solution with good electrical resistance, low moisture absorption, dimensional stability and impact resistance for Dry-Mate and Wet-Met systems.

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	614977	SustaPEI black extruded	rod	rod	black	Ø 12 x 1000 mm	1,000 mm		12 mm
No stock item (MOQ)	635394	SustaPEI black extruded	sheet	sheet	black	30 x 620 x 1000 mm	1,000 mm	620 mm	30 mm
No stock item (MOQ)	657681	SustaPEI black extruded	sheet	sheet	black	20 x 620 x 3000 mm	3,000 mm	620 mm	20 mm
No stock item (MOQ)	809389	SustaPEI black extruded	rod	rod	black	Ø 15 x 3000 mm	3,000 mm		15 mm
No stock item (MOQ)	809531	SustaPEI black extruded	rod	rod	black	Ø 15 x 1000 mm	1,000 mm		15 mm
No stock item (MOQ)	928263	SustaPEI black extruded	sheet	sheet	black	20 x 620 x 1000 mm	1,000 mm	620 mm	20 mm
No stock item (MOQ)	928577	SustaPEI black extruded	sheet	sheet	black	8 x 620 x 1000 mm	1,000 mm	620 mm	8 mm
No stock item (MOQ)	928578	SustaPEI black extruded	sheet	sheet	black	8 x 620 x 3000 mm	3,000 mm	620 mm	8 mm
No stock item (MOQ)	928579	SustaPEI black extruded	sheet	sheet	black	10 x 620 x 1000 mm	1,000 mm	620 mm	10 mm
No stock item (MOQ)	929548	SustaPEI black extruded	sheet	sheet	black	10 x 500 x 1000 mm	1,000 mm	500 mm	10 mm
No stock item (MOQ)	929645	SustaPEI black extruded	sheet	sheet	black	8 x 500 x 1000 mm	1,000 mm	500 mm	8 mm
No stock item (MOQ)	933652	SustaPEI black extruded	rod	rod	black	Ø 12 x 3000 mm	3,000 mm		12 mm
No stock item (MOQ)	934294	SustaPEI black extruded	rod	rod	black	Ø 20 x 3000 mm	3,000 mm		20 mm
No stock item (MOQ)	934385	SustaPEI black extruded	sheet	sheet	black	16 x 620 x 1000 mm	1,000 mm	620 mm	16 mm
No stock item (MOQ)	934576	SustaPEI black extruded	rod	rod	black	Ø 20 x 1000 mm	1,000 mm		20 mm

Technical Specifications SustaPEI black

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,27
Water absorption	DIN EN ISO 62	%	0,5
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	110
Elongation at break	DIN EN ISO 527	%	12
Tensile modulus of elasticity	DIN EN ISO 527	MPa	3100
Notched impact strength	DIN EN ISO 179	kJ / m²	4
Shore hardness	DIN EN ISO 868	scale D	86

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	-
Glass transition temperature	ISO 11357-3	°C	217
Thermal conductivity	DIN 52612-1	W / (m * K)	0,24
Thermal capacity	DIN 52612	kJ / (kg * K)	1,10
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	45
Service temperature, long term	Average	°C	-50 … 170
Service temperature, short term (max.)	Average	°C	210
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	200

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,2
Dielectric dissipation factor (50 Hz)	IEC 60250		0,0015
Volume resistivity	DIN EN 62631-3-1	Ohm * cm	10¹⁵
Surface resistivity	DIN EN 62631-3-2	Ohm	10¹⁵
Comparative tracking index	IEC 60112		150
Dielectric strength	IEC 60243	kV / mm	30
