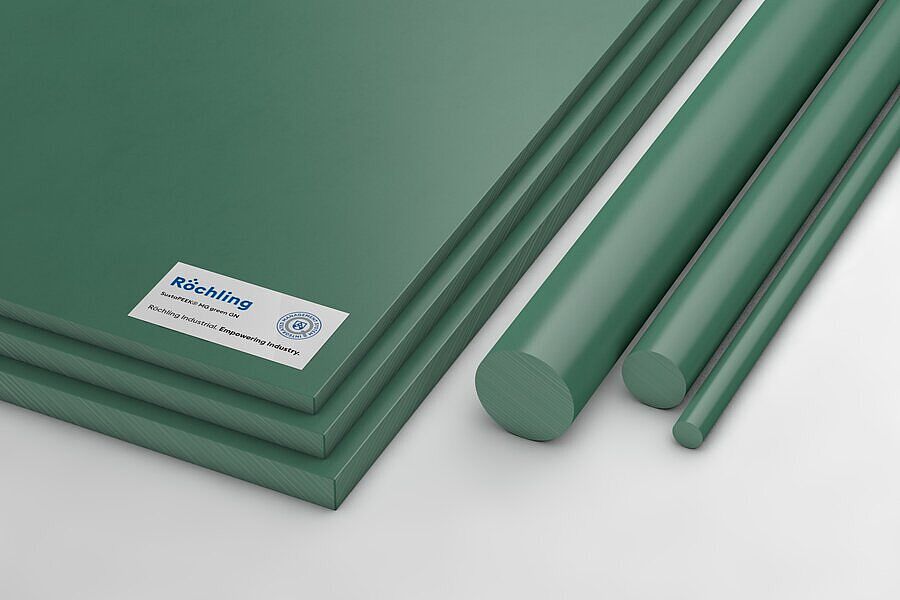

SustaPEEK MG green GN


Our premium material especially for medical devices

SustaPEEK MG was developed for the demanding requirements of the healthcare industry in particular medical devices. As a material of highest purity with exceptional resistance to sterilisation, it is e.g. ideal for surgical instruments. Thanks to its very high strength and rigidity, SustaPEEK MG ensures reliable performance in all applications. It retains its shape and property profile even under extreme conditions. With its excellent temperature stability of up to 250 °C in continuous use, it offers reliable performance.



  • High purity
  • Very good sterilisation resistance
  • very high strength and rigidity
  • ISO 10993-5 tested on semi-finished product
  • high-temperature stable up to 250°C in continuous operation
  • Chemical resistance


Application Examples

Breast biopsy unit

The breast biopsy unit is precision machined to meet tight tolerances according to the customer's drawings. It offers excellent cleaning and sterilisation procedures as well as biocompatibility in accordance with DIN EN ISO 10993-5 and is supplied as an assembly group made of SustaPEEK MG material.

Handle for surgical instruments

Our challenge was to find a material that can be sterilised, offers a high-quality feel and surface quality, and at the same time can be manufactured with tight tolerances. SustaPEEK MG was chosen due to its outstanding properties. It offers good stability during production, which is crucial for manufacturing complex components and maintaining tight tolerances. It is also heat dissipative and has good thermal properties and excellent chemical resistance.

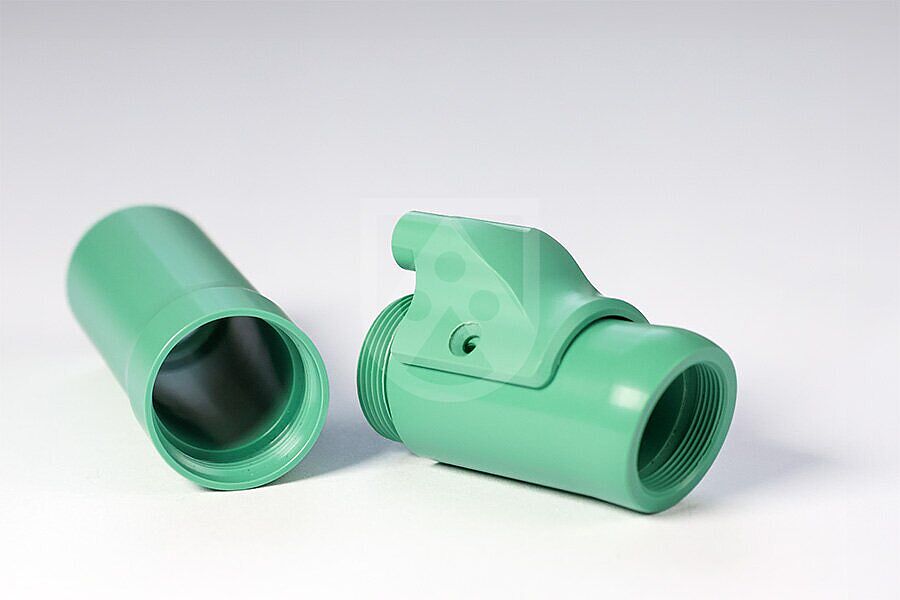

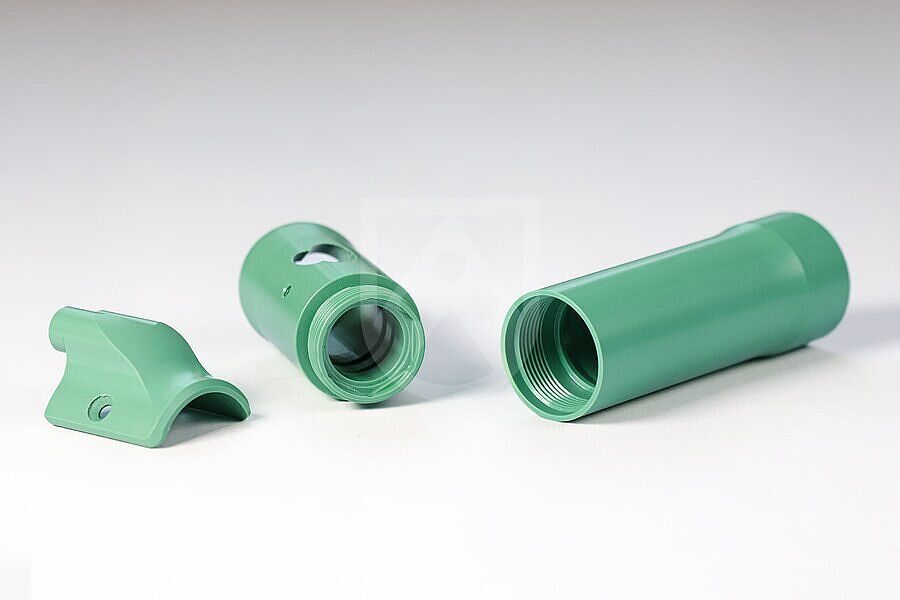

Handle of an ultrasonic probe

Handle of an ultrasonic probe machined from SustaPEEK MG.

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.

Armin Reuner - Industry Manager Healthcare - Mail: AReuner@roechling.com

No stock item (MOQ)
779946SustaPEEK MG green extruded rod rod Ø 35 x 3000 mm 3,000 mm 35 mm
No stock item (MOQ)
780873SustaPEEK MG green extruded rod rod Ø 35 x 1000 mm 1,000 mm 35 mm

Technical Specifications SustaPEEK MG green GN

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,34
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa114
Elongation at breakDIN EN ISO 527%13,7
Tensile modulus of elasticityDIN EN ISO 527MPa4200
Notched impact strengthISO 179-1/1eAkJ / m23,6
Shore hardnessDIN EN ISO 868scale D87
Elastic modulus of compressionDIN EN ISO 604MPa3400
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C341
