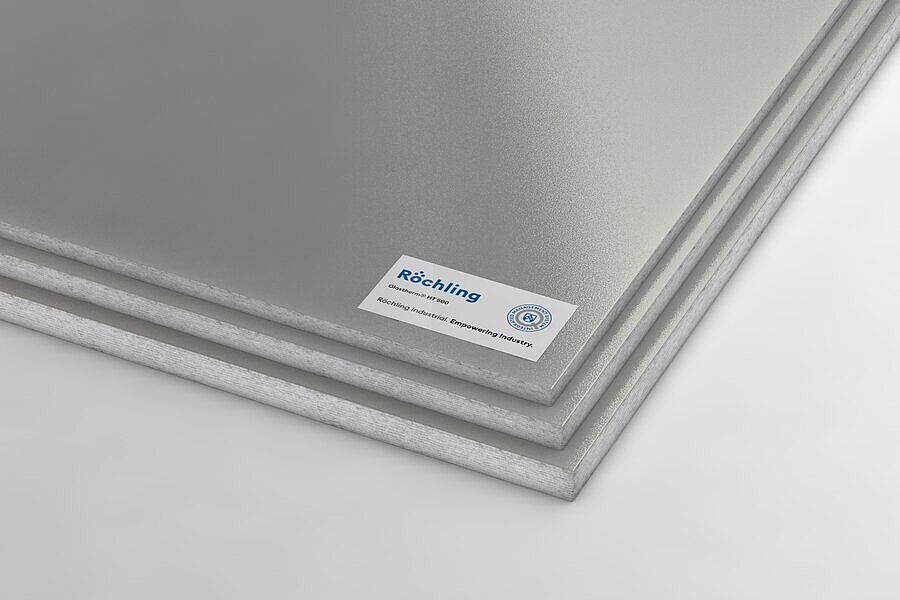

Glastherm® HT 500
Other
Glastherm® HT 500 boasts an extremely high level of heat resistance, making it suitable for processes with a continuous working temperature of up to 500 °C (932 °F). The material also has an excellent load capacity in high temperatures and a very good level of resistance to thermal shock. Glastherm® HT 500 is incombustible, free of asbestos and can be easily cut and adapted with standard metal tools.
- Maximum continuous operation temperature: 500 °C (932 °F)
- Compressive strength: 250 MPa (at 200 °C)
- Good thermal insulation
sheet
Industries
Semiconductor High and low temperature
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 300415 | Glastherm® HT 500 pressed | sheet | sheet | 1.200 x 1.000 x 20 (+/-1) mm | 1,200 mm | 1,000 mm | 20 mm | |||
| No stock item (MOQ) | 300416 | Glastherm® HT 500 pressed | sheet | sheet | 1.200 x 1.000 x 8 (+0,8/-0,4) mm | 1,200 mm | 1,000 mm | 8 mm | |||
| No stock item (MOQ) | 328720 | Glastherm® HT 500 pressed | sheet | sheet | 1.200 x 1.000 x 15 (+/-1,05) mm | 1,200 mm | 1,000 mm | 15 mm | |||
| No stock item (MOQ) | 385702 | Glastherm® HT 500 pressed | sheet | sheet | 1.200 x 1.000 x 12 (+1,2/-0,6) mm | 1,200 mm | 1,000 mm | 12 mm | |||
| No stock item (MOQ) | 405693 | Glastherm® HT 500 pressed | sheet | sheet | 1.220 x 1.016 x 10 (+/-0,4) mm | 1,220 mm | 1,016 mm | 10 mm | |||
| No stock item (MOQ) | 427789 | Glastherm® HT 500 pressed | sheet | sheet | 1.200 x 1.000 x 5 (+0,6/-0,3) mm | 1,200 mm | 1,000 mm | 5 mm | |||
| No stock item (MOQ) | 427790 | Glastherm® HT 500 pressed | sheet | sheet | 2.400 x 1.000 x 5 mm | 2,400 mm | 1,000 mm | 5 mm | |||
| No stock item (MOQ) | 449674 | Glastherm® HT 500 pressed | sheet | sheet | 2.400 x 1.000 x 6 (+0,72/-0,36) mm | 2,400 mm | 1,000 mm | 6 mm | |||
| No stock item (MOQ) | 449677 | Glastherm® HT 500 pressed | sheet | sheet | 2.420 x 1.020 x 10 (+1/-0,5) mm | 2,420 mm | 1,020 mm | 10 mm | |||
| No stock item (MOQ) | 449678 | Glastherm® HT 500 pressed | sheet | sheet | 2.000 x 1.000 x 25 mm (+2,5/-1,25) mm | 2,000 mm | 1,000 mm | 25 mm | |||
| No stock item (MOQ) | 453411 | Glastherm® HT 500 pressed | sheet | sheet | 2.400 x 1.000 x 15 (+1,5/-0,75) mm | 2,400 mm | 1,000 mm | 15 mm | |||
| No stock item (MOQ) | 456004 | Glastherm® HT 500 pressed | sheet | sheet | 1.200 x 1.000 x 10 (-0,5/+1) mm | 1,200 mm | 1,000 mm | 10 mm | |||
| No stock item (MOQ) | 465134 | Glastherm® HT 500 pressed | sheet | sheet | 1.200 x 1.000 x 2 (-0,12/+0,24) mm | 1,200 mm | 1,000 mm | 2 mm | |||
| No stock item (MOQ) | 465135 | Glastherm® HT 500 pressed | sheet | sheet | 1.200 x 1.000 x 20 (-1/+2) mm | 1,200 mm | 1,000 mm | 20 mm |
Technical Specifications Glastherm® HT 500
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ISO 1183 | g / cm3 | 2,15 |
| Flexural strength ┴ | ISO 178 | MPa | 165 |
| Compressive strength 1)┴ | ISO 604 | MPa | 400 |
| Compressive strength 1)┴ +200°C | ISO 604 | MPa | 250 |
| Tensile strength II | ISO 527 | MPa | 150 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Flammability | UL 94 | / | V0 |
| Thermal conductivity 2)┴ | W / (m * K) | ≈ 0,25 | |
| Coefficient of linear expansion II | TMA (Mettler) | 10-6 x K-1 | ≈ 10 |
| Max. continuous operating temperature | °C | 500 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Water absorption (method 1) | ISO 62 | % | 1 |
