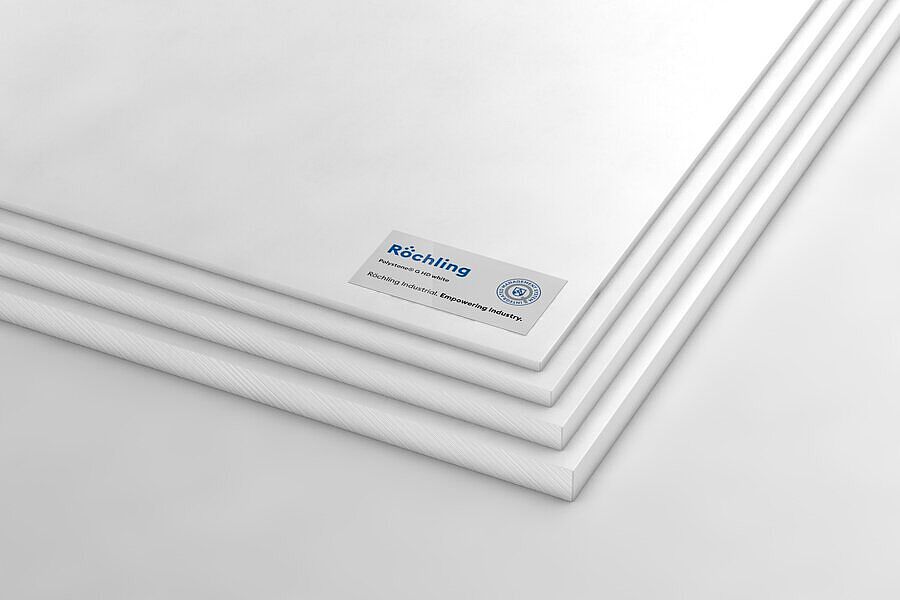

Polystone® G HD white

PE — PE-HD - PE 300

Polystone® G est un polyéthylène haute densité (PE-HD/PE 300). Il s’agit d’un matériau facile à usiner, adapté à de nombreuses applications notamment dans la construction d’appareils et réservoirs destinés à la chimie.

blanc, similaire RAL 9010blanc signalisation, similaire RAL 9016
plaquefil à souder
QR-Code

Characteristics

  • Very good welding and processing properties
  • Chemical resistance

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
296246Polystone® G HD white extruded plaque plaque blanc, similaire RAL 90102.000 x 1.000(-0) x 20 mm 2 000 mm 1 000 mm 20 mm
No stock item (MOQ)
325154Polystone® G HD white extruded plaque plaque blanc, similaire RAL 90104.000 x 2.000 x 12 mm 4 000 mm 2 000 mm 12 mm
No stock item (MOQ)
325498Polystone® G HD white extruded plaque plaque blanc signalisation, similaire RAL 90163.000 x 1.500 x 14 (+/-0,55) mm 3 000 mm 1 500 mm 14 mm
No stock item (MOQ)
336086Polystone® G HD white extruded plaque plaque blanc, similaire RAL 90104.000 x 1.000 x 6 mm 4 000 mm 1 000 mm 6 mm
Stock item (no MOQ)
405611Polystone® G HD white extruded plaque plaque blanc signalisation, similaire RAL 90163.020 x 2.000 (-1/+3) x 20 mm 3 020 mm 2 000 mm 20 mm
No stock item (MOQ)
411943Polystone® G HD white extruded fil à souder fil à souder blanc, similaire RAL 9010B=4 (+/-0,3) x 3 (-0,4/+0) mm 4 mm 3 mm
No stock item (MOQ)
415653Polystone® G HD white extruded plaque plaque blanc, similaire RAL 90103.000 x 2.000 x 8 mm 3 000 mm 2 000 mm 8 mm
No stock item (MOQ)
426368Polystone® G HD white extruded fil à souder fil à souder blanc, similaire RAL 9010Ø 5 (-0,4/+0,2) mm 5 mm
No stock item (MOQ)
426369Polystone® G HD white extruded fil à souder fil à souder blanc, similaire RAL 9010Ø 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
436483Polystone® G HD white extruded fil à souder fil à souder blanc, similaire RAL 9010B=5 (+/-0,3) x 3,5 (-0,4/+0) mm 5 mm 3,5 mm
No stock item (MOQ)
439965Polystone® G HD white extruded fil à souder fil à souder blanc, similaire RAL 9010B=5,7 (-0,5/+0,1) x 3,8 (-0,4/+0) mm 5,7 mm 3,8 mm
No stock item (MOQ)
449367Polystone® G HD white extruded fil à souder fil à souder blanc, similaire RAL 9010B=5,1 (-0,6/+0) x 3,5 (+/-0,25) mm 5,1 mm 3,5 mm
No stock item (MOQ)
470239Polystone® G HD white extruded plaque plaque blanc, similaire RAL 90103.000 x 1.500 x 3 mm 3 000 mm 1 500 mm 3 mm
No stock item (MOQ)
481089Polystone® G HD white extruded plaque plaque blanc, similaire RAL 90104.000 x 2.000 x 20 mm 4 000 mm 2 000 mm 20 mm

Technical Specifications Polystone® G HD white

Test MethodUnitGuideline Value
DensitéDIN EN ISO 1183-1g / cm3>0,95
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Flammability (Thickness 3 - 10 mm)DIN 4102B2
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa>22
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa>1000
Notched impact strengthDIN EN ISO 179kJ / m2>10
Shore hardnessDIN EN ISO 868scale D>60
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C130 ... 135
Thermal conductivityDIN 52612-1W / (m * K)0,40
Thermal capacityDIN 52612kJ / (kg * K)1,90
Coefficient of linear thermal expansionDIN 5375210-6 / K150 ... 230
Service temperature, long termAverage°C-50 … 80
Service temperature, short term (max.)Average°C100
Vicat softening temperatureDIN EN ISO 306, Vicat B°C67
Test MethodUnitGuideline Value
Dielectric constantIEC 602502,4
Dielectric dissipation factor (106 Hz)IEC 602500,0004
Volume resistivityDIN EN 62631-3-1Ω * cm>1014
Surface resistivityDIN EN 62631-3-2>1014
Comparative tracking indexIEC 60112600
Dielectric strengthIEC 60243kV / mm>40
