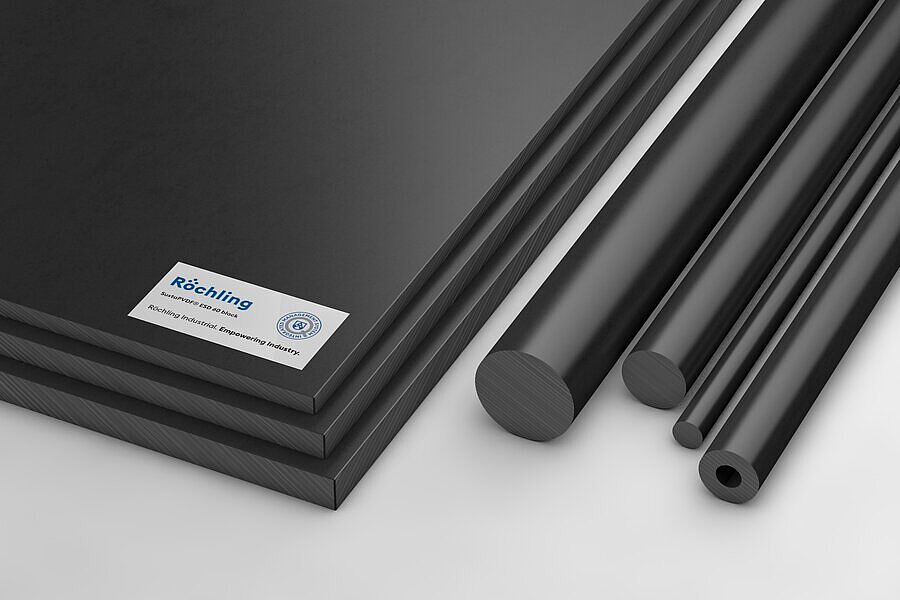

SustaPVDF ESD 60 black
PVDF
noir
jonc
Characteristics
- Electrically conductive
- Chemical resistance
- Good UV resistance
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 928458 | SustaPVDF ESD 60 black extruded | jonc | jonc | noir | Ø 50 x 3000 mm | 3 000 mm | 50 mm |
Technical Specifications SustaPVDF ESD 60 black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Densité | DIN EN ISO 1183-1 | g / cm3 | 1,79 |
| Water absorption | DIN EN ISO 62 | % | 0,0 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 58 |
| Elongation at break | DIN EN ISO 527 | % | 10 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 7 |
| Shore hardness | DIN EN ISO 868 | scale D | 79 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 178 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 140 |
| Service temperature, long term | Average | °C | -20 … 140 |
| Service temperature, short term (max.) | Average | °C | 150 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | 104 |
| Surface resistivity | DIN EN 62631-3-2 | Ohm | 104 |
