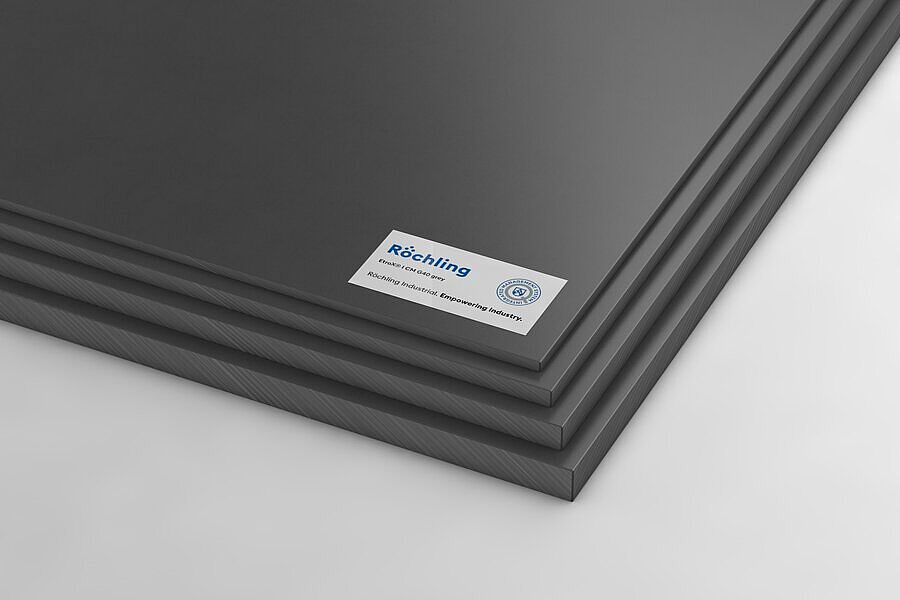

EtroX® I CM G40 grey
PI
anthracite
plaque
Characteristics
- high dimensional stability under heat
- Heat resistant
- Low creep tendency
- Low moisture absorption
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 761048 | EtroX® I CM G40 grey pressed | plaque | plaque | anthracite | 16 x 395 x 395 mm | 395 mm | 395 mm | 16 mm | ||
| No stock item (MOQ) | 772248 | EtroX® I CM G40 grey pressed | plaque | plaque | anthracite | 20 x 395 x 395 mm | 395 mm | 395 mm | 20 mm | ||
| No stock item (MOQ) | 774754 | EtroX® I CM G40 grey pressed | plaque | plaque | anthracite | 12 x 395 x 395 mm | 395 mm | 395 mm | 12 mm |
Technical Specifications EtroX® I CM G40 grey
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Densité | DIN EN ISO 1183-1 | g / cm3 | 1,58 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Elongation at break | DIN EN ISO 527 | % | 2 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 5000 |
| Tensile strength | DIN EN ISO 527 | MPa | 50 |
| Shore hardness | DIN EN ISO 868 | scale D | 80 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 200 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Temp. of deflection under load, 1.80 MPa | ISO 75-1/-2 | °C | 325 |
| Temp. of deflection under load, 0.45 MPa | ISO 75-1/-2 | °C | 358 |
