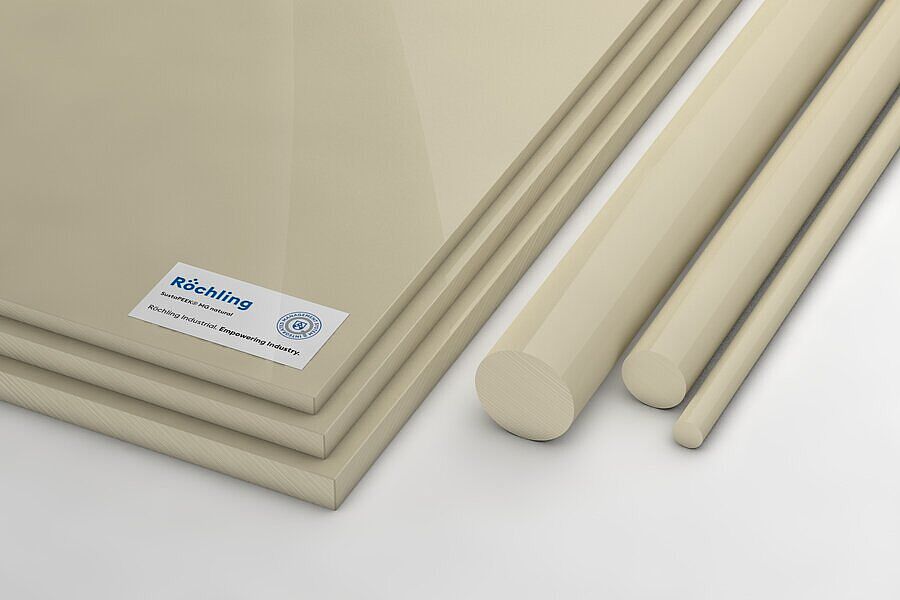

SustaPEEK MG natural

PEEK

Our premium material SustaPEEK MG was developed for the demanding requirements of the healthcare industry. As a material of highest purity with exceptional resistance to sterilisation, it is e.g. ideal for surgical instruments. Thanks to its very high strength and rigidity, SustaPEEK MG ensures reliable performance in all applications. It retains its shape and property profile even under extreme conditions. With its excellent temperature stability of up to 250 °C in continuous use, it offers reliable performance.

naturel
plaquejonc
QR-Code

Characteristics

  • High purity
  • Very good sterilisation resistance
  • ISO 10993-5 tested on semi-finished product
  • very high strength and rigidity
  • high-temperature stable up to 250°C in continuous operation
  • Chemical resistance

Industries

Application Examples

+

Unité de biopsie mammaire

L'unité de biopsie mammaire est usinée avec précision pour répondre à des tolérances étroites conformément aux dessins du client. Elle offre d'excellentes procédures de nettoyage et de stérilisation, ainsi qu'une biocompatibilité conforme à la norme DIN EN ISO 10993-5. Elle est livrée sous forme de groupe de montage, fabriqué en SustaPEEK MG.

+

Manche pour instruments chirurgicaux

Le défi : Stérilisable, sensation de haute qualité et qualité de surface élevée, usiné avec des tolérances strictes SustaPEEK® MG a été choisi en raison de ses propriétés spéciales : Bonne stabilité requise pour la fabrication (composants complexes et tolérances strictes) Dissipatif à la chaleur Bonnes propriétés thermiques Bonne résistance chimique

+

Poignée pour sonde à ultrasons

Poignée pour sonde à ultrasons réalisée en SustaPEEK® MG.

Variants

Show product in Webshop
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		600688SustaPEEK MG natural extruded plaque plaque naturel10 x 620 x 1000 mm 1 000 mm 620 mm 10 mm
No stock item (MOQ)		601306SustaPEEK MG natural extruded jonc jonc naturelØ 100 x 1000 mm 1 000 mm 100 mm
No stock item (MOQ)		601944SustaPEEK MG natural extruded plaque plaque naturel20 x 620 x 1000 mm 1 000 mm 620 mm 20 mm
No stock item (MOQ)		605977SustaPEEK MG natural extruded jonc jonc naturelØ 55 x 1000 mm 1 000 mm 55 mm
No stock item (MOQ)		615247SustaPEEK MG natural extruded plaque plaque naturel5 x 620 x 1000 mm 1 000 mm 620 mm 5 mm
No stock item (MOQ)		629918SustaPEEK MG natural extruded jonc jonc naturelØ 200 x 1000 mm 1 000 mm 200 mm
No stock item (MOQ)		650387SustaPEEK MG natural extruded jonc jonc naturelØ 36 x 2000 mm 2 000 mm 36 mm
No stock item (MOQ)		660888SustaPEEK MG natural extruded jonc jonc naturelØ 60 x 1000 mm 1 000 mm 60 mm
Stock item (no MOQ)		673721SustaPEEK MG natural extruded plaque plaque naturel8 x 620 x 3000 mm 3 000 mm 620 mm 8 mm
No stock item (MOQ)		673723SustaPEEK MG natural extruded plaque plaque naturel8 x 620 x 1000 mm 1 000 mm 620 mm 8 mm
No stock item (MOQ)		673788SustaPEEK MG natural extruded plaque plaque naturel12 x 620 x 3000 mm 3 000 mm 620 mm 12 mm
No stock item (MOQ)		673789SustaPEEK MG natural extruded plaque plaque naturel12 x 620 x 1000 mm 1 000 mm 620 mm 12 mm
No stock item (MOQ)		760138SustaPEEK MG natural extruded jonc jonc naturelØ 110 x 1000 mm 1 000 mm 110 mm
No stock item (MOQ)		760139SustaPEEK MG natural extruded jonc jonc naturelØ 110 x 3000 mm 3 000 mm 110 mm
No stock item (MOQ)		765343SustaPEEK MG natural extruded plaque plaque naturel16 x 620 x 2000 mm 2 000 mm 620 mm 16 mm
Stock item (no MOQ)		806297SustaPEEK MG natural extruded jonc jonc naturelØ 32 x 3000 mm 3 000 mm 32 mm
No stock item (MOQ)		806416SustaPEEK MG natural extruded plaque plaque naturel20 x 620 x 3000 mm 3 000 mm 620 mm 20 mm
No stock item (MOQ)		806417SustaPEEK MG natural extruded plaque plaque naturel16 x 620 x 3000 mm 3 000 mm 620 mm 16 mm
No stock item (MOQ)		806419SustaPEEK MG natural extruded plaque plaque naturel16 x 620 x 1000 mm 1 000 mm 620 mm 16 mm
No stock item (MOQ)		806502SustaPEEK MG natural extruded jonc jonc naturelØ 10 x 3000 mm 3 000 mm 10 mm
No stock item (MOQ)		806503SustaPEEK MG natural extruded jonc jonc naturelØ 10 x 1000 mm 1 000 mm 10 mm
Stock item (no MOQ)		806506SustaPEEK MG natural extruded jonc jonc naturelØ 40 x 3000 mm 3 000 mm 40 mm
No stock item (MOQ)		806507SustaPEEK MG natural extruded jonc jonc naturelØ 40 x 1000 mm 1 000 mm 40 mm
Stock item (no MOQ)		806596SustaPEEK MG natural extruded jonc jonc naturelØ 16 x 3000 mm 3 000 mm 16 mm
No stock item (MOQ)		806599SustaPEEK MG natural extruded plaque plaque naturel10 x 620 x 3000 mm 3 000 mm 620 mm 10 mm
Stock item (no MOQ)		806606SustaPEEK MG natural extruded jonc jonc naturelØ 20 x 3000 mm 3 000 mm 20 mm
No stock item (MOQ)		806607SustaPEEK MG natural extruded jonc jonc naturelØ 20 x 1000 mm 1 000 mm 20 mm
No stock item (MOQ)		806608SustaPEEK MG natural extruded jonc jonc naturelØ 25 x 1000 mm 1 000 mm 25 mm
Stock item (no MOQ)		806609SustaPEEK MG natural extruded jonc jonc naturelØ 25 x 3000 mm 3 000 mm 25 mm
Stock item (no MOQ)		806610SustaPEEK MG natural extruded jonc jonc naturelØ 30 x 3000 mm 3 000 mm 30 mm
No stock item (MOQ)		806611SustaPEEK MG natural extruded jonc jonc naturelØ 30 x 1000 mm 1 000 mm 30 mm
Stock item (no MOQ)		806635SustaPEEK MG natural extruded plaque plaque naturel6 x 620 x 3000 mm 3 000 mm 620 mm 6 mm
Stock item (no MOQ)		806637SustaPEEK MG natural extruded plaque plaque naturel30 x 620 x 3000 mm 3 000 mm 620 mm 30 mm
Stock item (no MOQ)		806642SustaPEEK MG natural extruded jonc jonc naturelØ 50 x 3000 mm 3 000 mm 50 mm
Stock item (no MOQ)		806643SustaPEEK MG natural extruded jonc jonc naturelØ 60 x 3000 mm 3 000 mm 60 mm
No stock item (MOQ)		806688SustaPEEK MG natural extruded jonc jonc naturelØ 8 x 3000 mm 3 000 mm 8 mm
No stock item (MOQ)		806689SustaPEEK MG natural extruded jonc jonc naturelØ 12 x 3000 mm 3 000 mm 12 mm
No stock item (MOQ)		806697SustaPEEK MG natural extruded plaque plaque naturel25 x 620 x 1000 mm 1 000 mm 620 mm 25 mm
No stock item (MOQ)		806698SustaPEEK MG natural extruded plaque plaque naturel30 x 620 x 1000 mm 1 000 mm 620 mm 30 mm
No stock item (MOQ)		806699SustaPEEK MG natural extruded plaque plaque naturel6 x 620 x 1000 mm 1 000 mm 620 mm 6 mm
No stock item (MOQ)		806924SustaPEEK MG natural extruded jonc jonc naturelØ 6 x 3000 mm 3 000 mm 6 mm
No stock item (MOQ)		806925SustaPEEK MG natural extruded jonc jonc naturelØ 45 x 3000 mm 3 000 mm 45 mm
No stock item (MOQ)		806926SustaPEEK MG natural extruded jonc jonc naturelØ 70 x 3000 mm 3 000 mm 70 mm
Stock item (no MOQ)		806927SustaPEEK MG natural extruded jonc jonc naturelØ 80 x 3000 mm 3 000 mm 80 mm
No stock item (MOQ)		807276SustaPEEK MG natural extruded jonc jonc naturelØ 50 x 1000 mm 1 000 mm 50 mm
No stock item (MOQ)		807608SustaPEEK MG natural extruded jonc jonc naturelØ 45 x 1000 mm 1 000 mm 45 mm
No stock item (MOQ)		808145SustaPEEK MG natural extruded jonc jonc naturelØ 12 x 1000 mm 1 000 mm 12 mm
No stock item (MOQ)		808190SustaPEEK MG natural extruded jonc jonc naturelØ 36 x 3000 mm 3 000 mm 36 mm
No stock item (MOQ)		808513SustaPEEK MG natural extruded jonc jonc naturelØ 70 x 1000 mm 1 000 mm 70 mm
No stock item (MOQ)		808686SustaPEEK MG natural extruded jonc jonc naturelØ 6 x 1000 mm 1 000 mm 6 mm
No stock item (MOQ)		809019SustaPEEK MG natural extruded jonc jonc naturelØ 16 x 1000 mm 1 000 mm 16 mm
No stock item (MOQ)		809020SustaPEEK MG natural extruded jonc jonc naturelØ 32 x 1000 mm 1 000 mm 32 mm
No stock item (MOQ)		809170SustaPEEK MG natural extruded plaque plaque naturel5 x 620 x 3000 mm 3 000 mm 620 mm 5 mm
No stock item (MOQ)		810172SustaPEEK MG natural extruded jonc jonc naturelØ 120 x 1000 mm 1 000 mm 120 mm
No stock item (MOQ)		810173SustaPEEK MG natural extruded jonc jonc naturelØ 120 x 3000 mm 3 000 mm 120 mm
No stock item (MOQ)		921774SustaPEEK MG natural extruded jonc jonc naturelØ 80 x 1000 mm 1 000 mm 80 mm
No stock item (MOQ)		924805SustaPEEK MG natural extruded jonc jonc naturelØ 8 x 1000 mm 1 000 mm 8 mm
Stock item (no MOQ)		926450SustaPEEK MG natural extruded jonc jonc naturelØ 100 x 3000 mm 3 000 mm 100 mm
No stock item (MOQ)		931215SustaPEEK MG natural extruded jonc jonc naturelØ 36 x 1000 mm 1 000 mm 36 mm
Stock item (no MOQ)		931249SustaPEEK MG natural extruded plaque plaque naturel40 x 620 x 3000 mm 3 000 mm 620 mm 40 mm
No stock item (MOQ)		931373SustaPEEK MG natural extruded plaque plaque naturel40 x 620 x 1000 mm 1 000 mm 620 mm 40 mm

Technical Specifications SustaPEEK MG natural

Test MethodUnitGuideline Value
DensitéDIN EN ISO 1183-1g / cm31,31
Water absorptionDIN EN ISO 62%0,2
Flammability (Thickness 3 mm / 6 mm)UL 94V0 / V0
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa110
Elongation at breakDIN EN ISO 527%20
Tensile modulus of elasticityDIN EN ISO 527MPa4000
Shore hardnessDIN EN ISO 868scale D88
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C343
Thermal conductivityDIN 52612-1W / (m * K)0,25
Thermal capacityDIN 52612kJ / (kg * K)1,34
Coefficient of linear thermal expansionDIN 5375210-6 / K50
Service temperature, long termAverage°C-60 … 250
Service temperature, short term (max.)Average°C310
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C152
Test MethodUnitGuideline Value
Dielectric constantIEC 602503,2
Dielectric dissipation factor (50 Hz)IEC 602500,001
Volume resistivityDIN EN 62631-3-1Ohm * cm4,9 * 1016
Surface resistivityDIN EN 62631-3-2Ohm1018
Dielectric strengthIEC 60243kV / mm20
