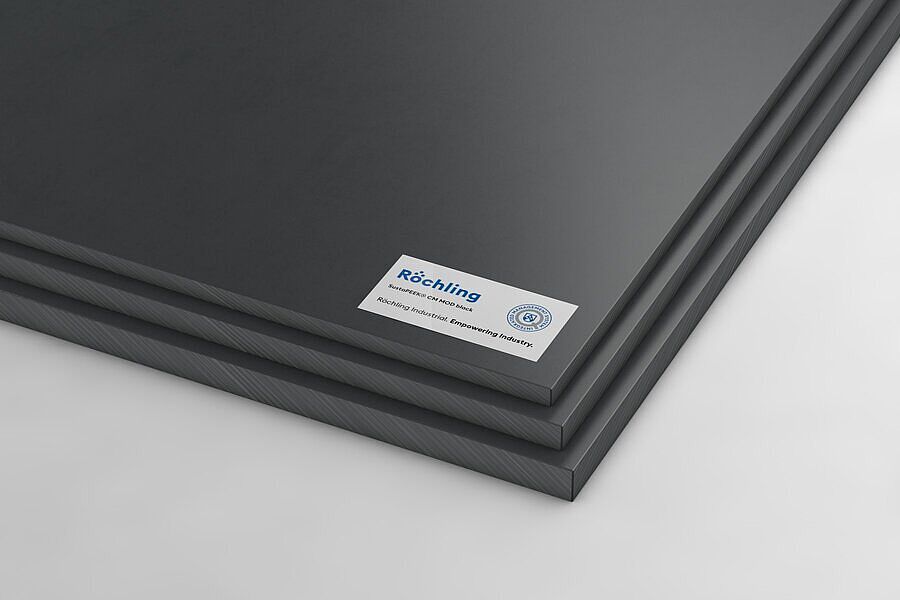

SustaPEEK CM MOD black
PEEK
noir
plaque
Characteristics
- Good sliding properties
- Good wear properties
- High rigidity
- Flame retardant
- Self-extinguishing
- Low smoke density
- Good resistance against high energy radiation
- Low creep tendency
- High continuous service temperature
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 718957 | SustaPEEK CM MOD black pressed | plaque | plaque | noir | 9 x 1020 x 1020 mm | 1 020 mm | 1 020 mm | 9 mm | ||
| No stock item (MOQ) | 720706 | SustaPEEK CM MOD black pressed | plaque | plaque | noir | 8 x 1020 x 1020 mm | 1 020 mm | 1 020 mm | 8 mm | ||
| No stock item (MOQ) | 720708 | SustaPEEK CM MOD black pressed | plaque | plaque | noir | 7 x 1020 x 1020 mm | 1 020 mm | 1 020 mm | 7 mm | ||
| No stock item (MOQ) | 720709 | SustaPEEK CM MOD black pressed | plaque | plaque | noir | 6 x 1020 x 1020 mm | 1 020 mm | 1 020 mm | 6 mm | ||
| No stock item (MOQ) | 721072 | SustaPEEK CM MOD black pressed | plaque | plaque | noir | 30 x 395 x 395 mm | 395 mm | 395 mm | 30 mm | ||
| No stock item (MOQ) | 853612 | SustaPEEK CM MOD black pressed | plaque | plaque | noir | 22 x 395 x 395 mm | 395 mm | 395 mm | 22 mm |
Technical Specifications SustaPEEK CM MOD black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Densité | DIN EN ISO 1183-1 | g / cm3 | 1,47 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Elongation at break | DIN EN ISO 527 | % | 1,1 |
| Tensile strength | DIN EN ISO 527 | MPa | 50 |
| Impact strength | DIN EN ISO 179 | kJ / m2 | 6 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 2 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 231 |
| Shore hardness | DIN EN ISO 868 / 15 sek | scale D | 82 |
| Compressive strength | DIN EN ISO 604 | MPa | 3800 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 342 |
