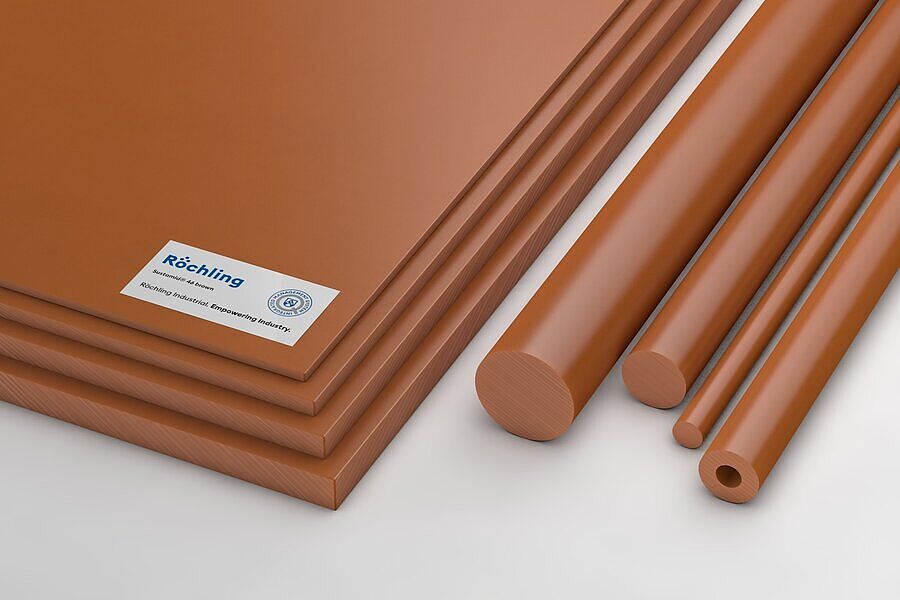

Sustamid® 46 brown

PA — PA 46

brun
plaque
QR-Code

Characteristics

  • High continuous service temperature
  • High heat deflection temperature
  • high absorption of moisture of up to 3.5 % in standard atmosphere
  • High abrasion resistance
  • high stiffness and tensile strength also at high service temperatures
  • outstanding notched-bar impact strength
  • Good machinability
  • good adhesive properties
  • good weldability
  • Good sliding properties
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
922249Sustamid® 46 brown extruded plaque plaque brun12 x 620 x 1000 mm 1 000 mm 620 mm 12 mm
No stock item (MOQ)
922250Sustamid® 46 brown extruded plaque plaque brun16 x 620 x 1000 mm 1 000 mm 620 mm 16 mm

Technical Specifications Sustamid® 46 brown

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,18
Water absorptionDIN EN ISO 62%3,7
Flammability (Thickness 3 mm / 6 mm)UL 94HB / HB
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa95
Elongation at breakDIN EN ISO 527%30
Tensile modulus of elasticityDIN EN ISO 527MPa3100
Notched impact strengthDIN EN ISO 179kJ / m26
Shore hardnessDIN EN ISO 868scale D84
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C295
Thermal conductivityDIN 52612-1W / (m * K)0,3
Coefficient of linear thermal expansionDIN 5375210-6 / K80
Service temperature, long termAverage°C-40 … 135
Service temperature, short term (max.)Average°C200
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C160
Test MethodUnitGuideline Value
Dielectric constantIEC 602503,8
Dielectric dissipation factor (50 Hz)IEC 602500,13
Volume resistivityDIN EN 62631-3-1Ohm * cm1015
Surface resistivityDIN EN 62631-3-2Ohm1016
Comparative tracking indexIEC 60112400
Dielectric strengthIEC 60243kV / mm22
