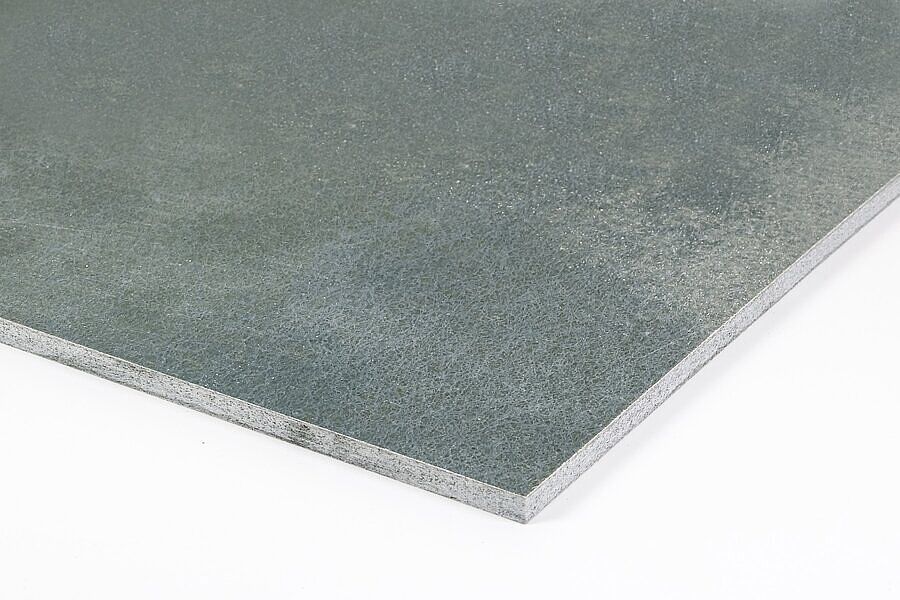

Durostone® CAG 762
GFK-EP
Characteristics
- Excellent machining properties enabling the manufacture of complex design solder pallets.
- Excellent mechanical properties and surface resistivity according to ESD applications with optical detection
- Fibre-reinforced composite material developed for applications in the field of wave soldering (max. continuous operating temperature 260 °C)
Industries
Technical Specifications Durostone® CAG 762
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Densité | DIN EN ISO 1183-1 | g / cm3 | 1,85 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Flexural strength ┴ RT | ISO 178 | MPa | 360 |
| Flexural strength ┴ +150°C | ISO 178 | MPa | 180 |
| Modulus of elasticity in flexion ┴ RT | ISO 178 | MPa | 18000 |
| Modulus of elasticity in flexion ┴ +150°C | ISO 178 | MPa | 9000 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN 52612 | W/m K | 0,25 |
| Max. continuous operating temperature | °C | 300 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Water absorption | ISO 62 | % | <0,20 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Surface resistivity | ASTM D257 | Ohm/sq | 105 - 108 |
