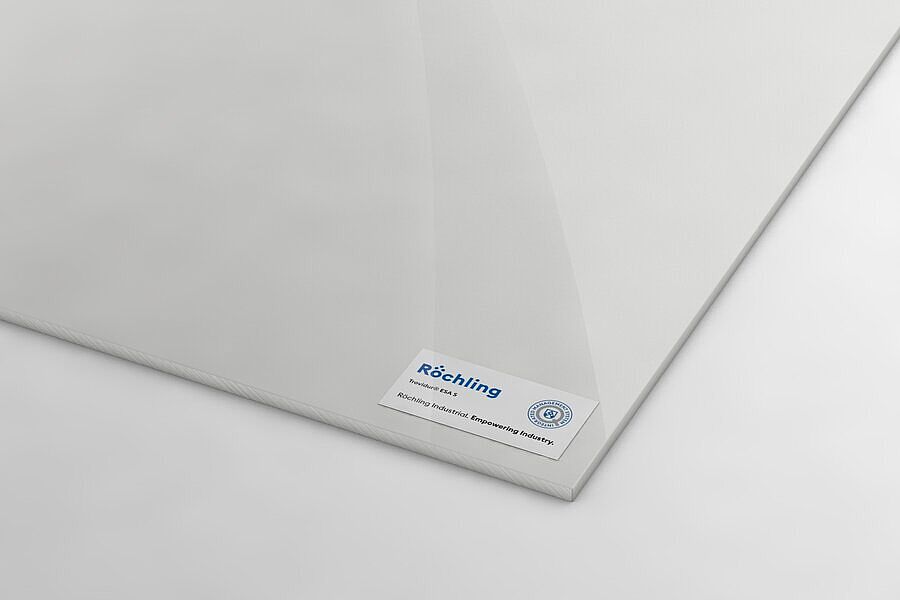

Trovidur® ESA-S

PVC-U

T-2119 white
sheet
QR-Code

Characteristics

  • Swimming pool Approval
  • Highly impact resistant
  • High UV and weather resistance
  • RoHS-compliant
  • ELV-compliant
  • WEEE-compliant
  • RLAP-compliant
  • High cold impact strength
  • Easy processing by welding, thermoforming and glueing

Application Examples

Inliners made of Trovidur® ESA-S

We offer inliners made of Trovidur® ESA-S specifically for swimming pools with a fibreglass-reinforced superstructure. Trovidur® ESA-S is a material specially designed for swimming pool construction that can be used at water temperatures of up to 60°C and has approval (KSW) for indoor, outdoor and warm swimming pools.

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
472547Trovidur® ESA-S white extruded sheet sheet T-2119 white2800 x 2050 x 3 mm 2,800 mm 2,050 mm 3 mm

Technical Specifications Trovidur® ESA-S

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,41
Water absorptionDIN EN ISO 62%0,20
Flammability (Thickness 1 ... 4 mm)DIN 4102B1
Flammability (Thickness 1 ... 4 mm)NF P 92-501M1
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa45
Elongation at breakDIN EN ISO 527%20
Tensile modulus of elasticityDIN EN ISO 527MPa2500
Notched impact strengthDIN EN ISO 179kJ / m28
Shore hardnessDIN EN ISO 868scale D80
Ball indentation hardnessDIN EN ISO 2039-1MPa110
Compressive strengthDIN EN ISO 604MPa65
Bending strengthDIN EN ISO 178MPa60
Test MethodUnitGuideline Value
Thermal conductivityDIN EN ISO 8302W / (m * K)0,16
Vicat softening temperatureDIN EN ISO 306, Vicat B°C75
Service Temperature°C-20 ... +60
Heat deflection temperatureDIN EN ISO 75°C70
Coefficient of linear thermal expansionDIN EN ISO 11359-2mm/m K 0,075
Test MethodUnitGuideline Value
Dielectric constantIEC 602503,2
Dielectric dissipation factor (106 Hz)IEC 602500,02
Volume resistivityDIN EN 62631-3-1Ω * cm>1015
Surface resistivityDIN EN 62631-3-2>1013
Dielectric strengthIEC 60243kV / mm12
Comparative tracking indexIEC 60112CTI600
