To produce a closure plug with a Luer Lock attachment that would allow for needle-free injection via an injection membrane, our customer, one of the world's leading manufacturers of medical and pharmaceutical products, needed a certified partner with plastics experience who has made a name for itself in finding creative and innovative solutions to technically demanding challenges.
The project for the high-speed production of the connection system for infusions and injections in the double-digit million range, involved the in-house production of two injection-molded parts—the housing and cap—and the procurement of an additional filter, with all parts requiring assembly.
High-volume production and assembly of three parts
Ultra-fast cycle times
Very low part prices
Tooling and Automation Expertise
We relied on injection molding based on two high-cavity molds to produce the plastic housing and cap. The hot runner system and spindle unit allow 48 components to be produced simultaneously and then removed—all within the space of a few seconds.

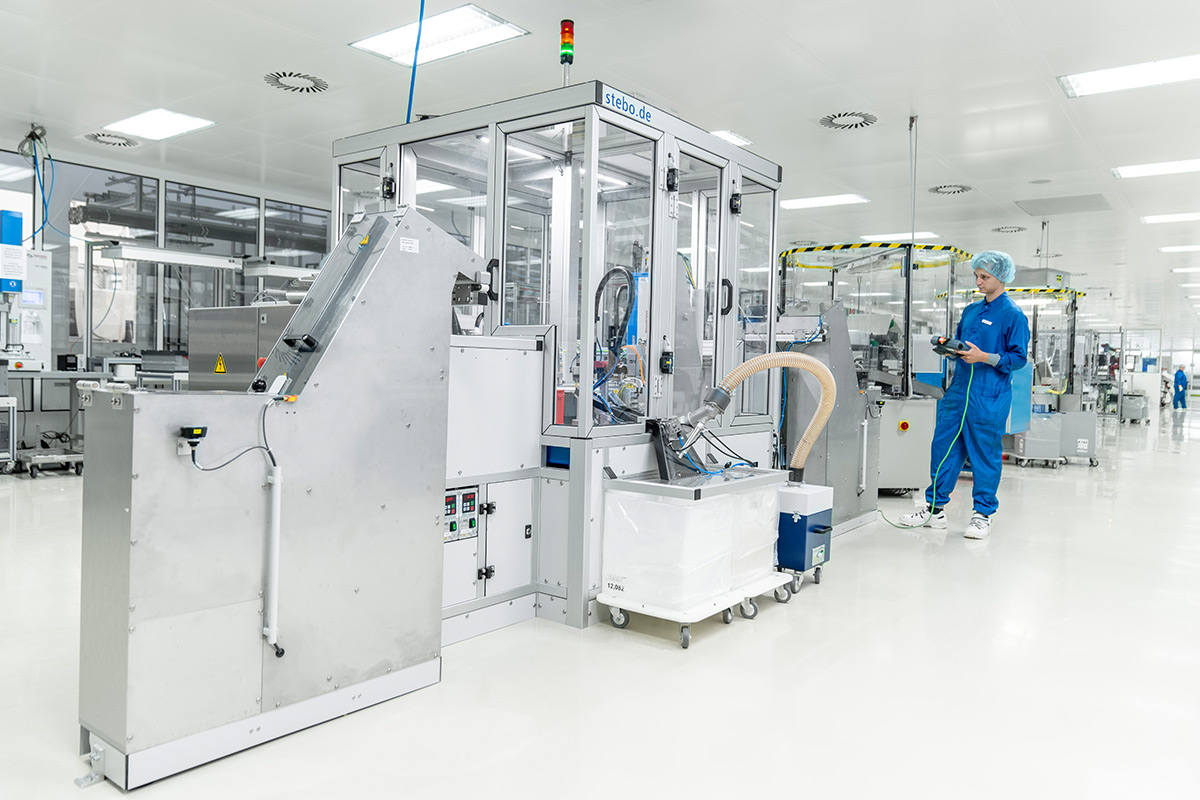

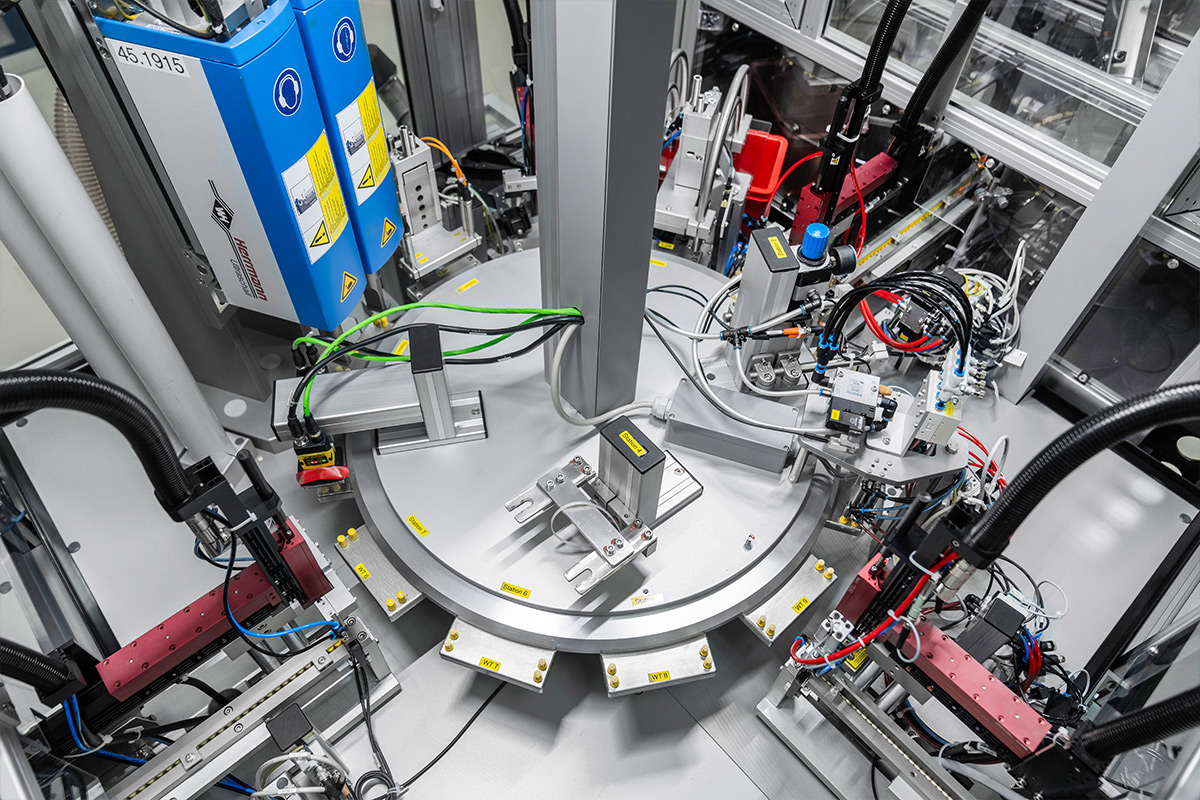

Using the decisive know-how and experience of our in-house experts, we developed, in close cooperation with a machine manufacturer and our customer, an automated assembly machine with an inclined conveyor, into which the injection molded and additional parts are fed and automatically assembled.

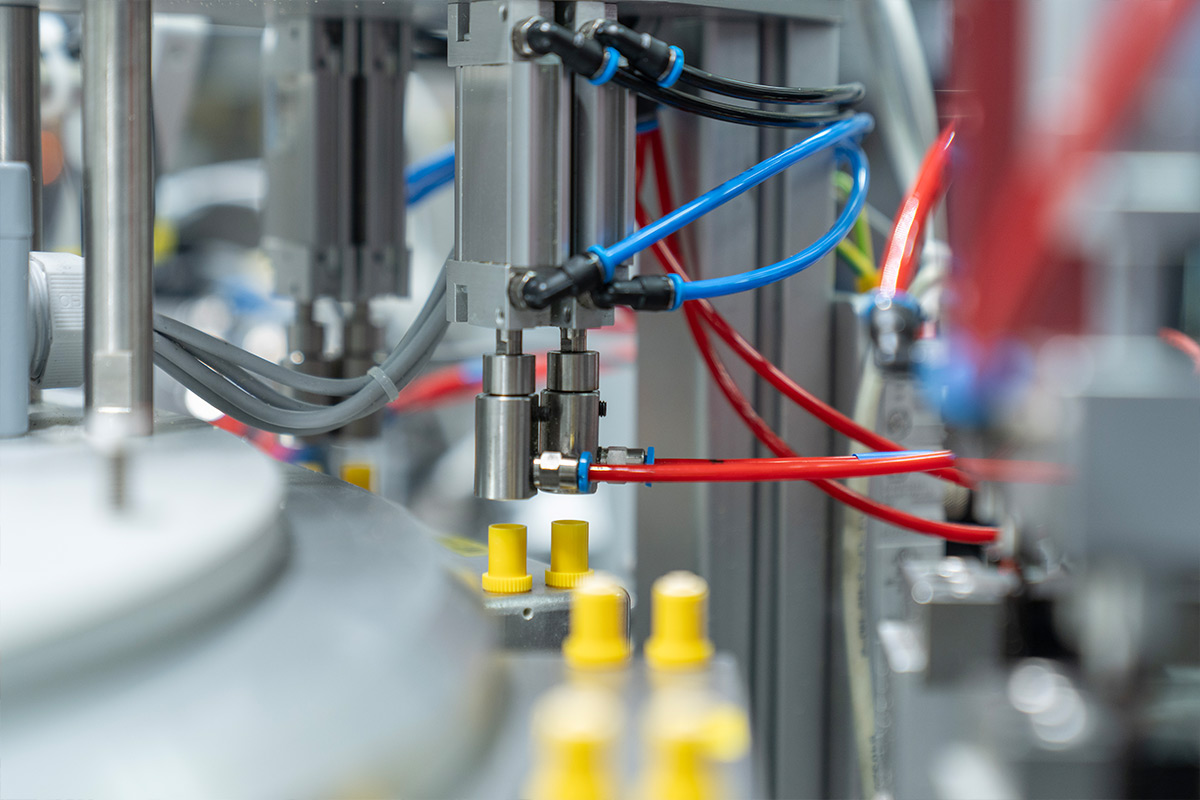

Camera and sensor controls ensure the quality of the individual steps at all times.
The housing is fed into machine, and a filter is mounted onto it
The cap is fed into machine and ultrasonically welded onto the housing
The assembly is discharged into a box after a quality check via a sensor

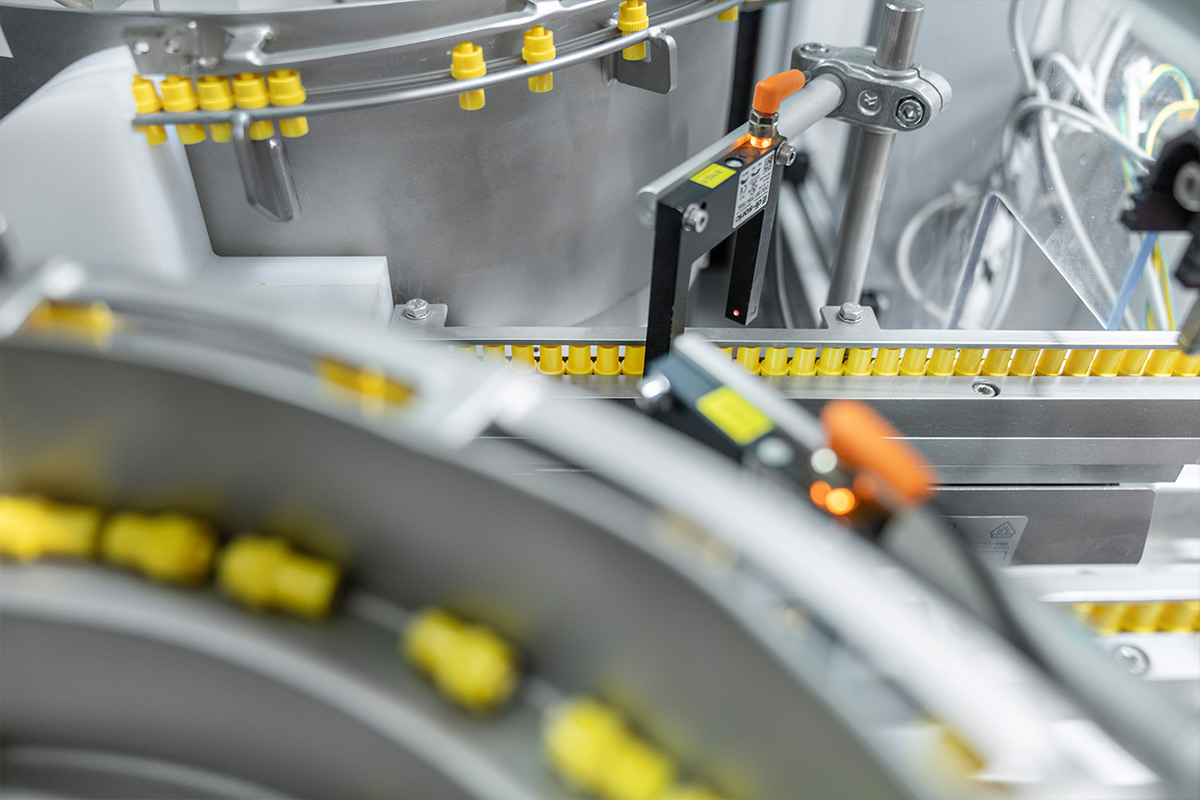

Due to the high production volumes, we encountered an issue with the conveyor pot of the automatic assembly machine. It was simply too small for the number of parts that needed to be fed into the system. As a result, the pot had to be frequently refilled manually, which was very inefficient for a project of this volume.
To solve this problem, our in-house automation team installed an inclined lift conveyor that continuously feeds parts into the assembly machine, allowing it to run self-sufficiently for up to six hours before new parts need to be added. This is an excellent example of how we combine intelligent automation solutions with classical processes to achieve a highly efficient result.
Speed Meets Quality
Our tooling and design expertise and our desire to find a smart automated assembly solution allowed us to deliver the results our customer expected from us.
The ultra-fast assembly takes place in less than three seconds and allows for very low cycle times, so we could easily handle production in the double-digit millions. The automatic assembly machine can operate in three shifts, with production running for up to six hours without manual intervention thanks to the inclined conveyor.
Assemblies are produced automatically in less than three seconds.
Self-sufficient production lasts for several hours before additional components need to be added, thereby minimizing human involvement.
100% automated quality control
