Polystone® M white

PE — PE-UHMW - PE 1000

Polystone^® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

cream, similar RAL 9001signal white, similar RAL 9003white, similar RAL 9010

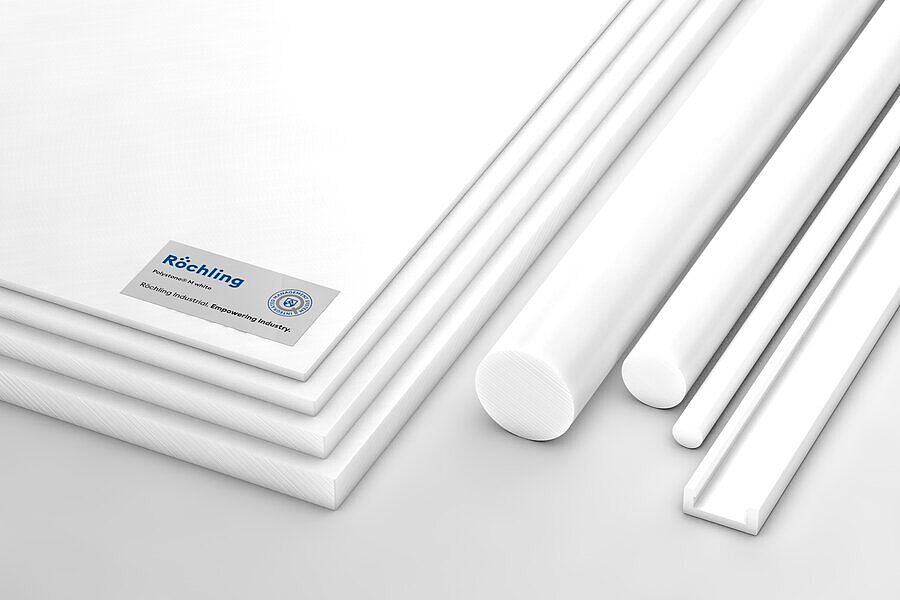

profilerodsheet

Characteristics

Low coefficient of friction
Very good abrasion and wear resistance
Good impact strength

Industries

Mechanical Engineering Industry

Application Examples

Sliding sheets for the supply area

In the accessible supply area of a biogas facility - the push floor - Polystone^® sliding sheets of ultra-high-molecular polyethylene are used. The Polystone^® sliding sheets take up transport chains and are characterised by outstanding sliding and abrasion properties. They are also robust, acid-resistant and wear-proof.

Chain guide profile for chain guides

Their low slide friction coefficients enable extruded and milled profiles made of Polystone^® M for chain guides to reduce the drive energy required in chain conveyors while at the same time improving process stability. Polystone^® M also has permanent self-lubrication properties.

Fenders

Mounted on fender systems, sliding sheets made of our material Polystone^® M protect quay bulkheads and ships during mooring and harbour manoeuvring and during idle periods. The ready-to-mount sheets are characterized by high abrasion and wear resistance and are resistant to corrosion, UV radiation and weathering.

Handrail profiles for boards

We offer extruded and milled handrail profiles made of Polystone^® M to fit boards.

Variants

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness	Height
Stock item (no MOQ)	320943	Polystone® M white extruded	C-profile	C-profile (R265)	cream, similar RAL 9001	6.000 x 90 x 14,5 mm	6,000 mm	90 mm	3.5 mm	14.5 mm
No stock item (MOQ)	410105	Polystone® M white extruded	Special profile	Special profile (R682)	signal white, similar RAL 9003	50.000 x 14,9 x 8,3 mm	50,000 mm	14.9 mm	8.3 mm
No stock item (MOQ)	446693	Polystone® M white extruded	rod	rod	signal white, similar RAL 9003	Ø 70 x 1.000 mm	1,000 mm		70 mm
No stock item (MOQ)	446695	Polystone® M white extruded	rod	rod	signal white, similar RAL 9003	Ø 70 x 2.000 mm	2,000 mm		70 mm
No stock item (MOQ)	453344	Polystone® M white extruded	Special profile	Special profile (R727)	white, similar RAL 9010	2.400 x 47,7 +/-0,5 x 28,8 +1/-0 mm	2,400 mm	47.7 mm	28.8 mm
No stock item (MOQ)	463388	Polystone® M white extruded	Special profile	Special profile (R385)	white, similar RAL 9010	2.000 x 50 x 52 mm	2,000 mm	50 mm	52 mm
No stock item (MOQ)	465433	Polystone® M white extruded	Special profile	Special profile (R682)	white, similar RAL 9010	50.000 x 14,9 x 8,3 mm	50,000 mm	14.9 mm	8.3 mm
No stock item (MOQ)	471550	Polystone® M white extruded	rod	rod	signal white, similar RAL 9003	Ø 30 x 2.000 mm	2,000 mm		30 mm
No stock item (MOQ)	373744	Polystone® M UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	373760	Polystone® M UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.000 x 30 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	406903	Polystone® M UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.000 x 50 mm	6,000 mm	2,000 mm	50 mm
No stock item (MOQ)	447240	Polystone® M UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.000 x 27,5 (-0,5/+0) mm	6,000 mm	2,000 mm	27.5 mm
No stock item (MOQ)	447730	Polystone® M UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	2.000 x 1.000 x 27,5 (-0,5/+0) mm	2,000 mm	1,000 mm	27.5 mm
No stock item (MOQ)	461289	Polystone® M UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	2.000 x 1.000 x 25 mm	2,000 mm	1,000 mm	25 mm
No stock item (MOQ)	461320	Polystone® M UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.000 x 25 mm	6,000 mm	2,000 mm	25 mm

Technical Specifications Polystone® M white extruded

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,93
Water absorption	DIN EN ISO 62	%	<0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

Mechanical properties

	Test Method	Unit	Guideline Value
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>650
Notched impact strength	DIN EN ISO 11542	kJ / m²	>100
Shore hardness	DIN EN ISO 868	scale D	>63

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	80

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0001
Volume resistivity	DIN EN 62631-3-1	Ohm * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ohm	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40
