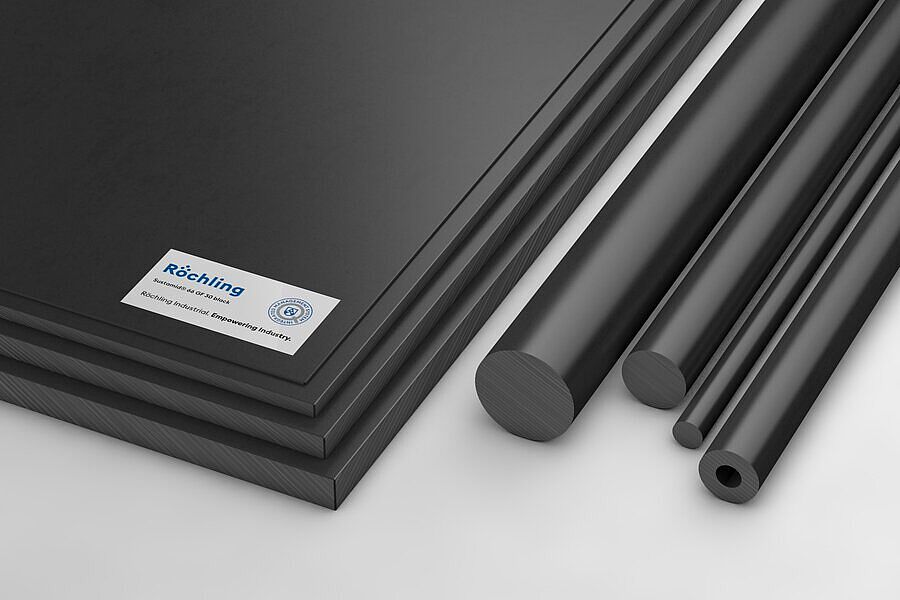

Sustamid® 66 GF 30 black
PA — PA 66
The strong glass fiber type
Sustamid® 66 GF30 (PA 66 GF30) is a high-performance engineering material based on polyamide 66, reinforced with 30% glass fibers. The glass fiber reinforcement provides high mechanical strength, good dimensional stability, and improved heat resistance. The combination of stiffness, strength, and low creep makes it ideal for components subjected to continuous mechanical and thermal stress.
black
sheetrod
Variants
Technical Specifications Sustamid® 66 GF 30 black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,32 |
| Water absorption | DIN EN ISO 62 | % | 1,7 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 85 |
| Elongation at break | DIN EN ISO 527 | % | 5 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 4500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 4 |
| Shore hardness | DIN EN ISO 868 | scale D | 86 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 260 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,24 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,50 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 50 |
| Service temperature, long term | Average | °C | -20 … 120 |
| Service temperature, short term (max.) | Average | °C | 200 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 150 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1013 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1010 |
| Comparative tracking index | IEC 60112 | 550 | |
| Dielectric constant @ 1MHz | DIN EN IEC 62631-2-1 | 3,8 | |
| Dielectric dissipation factor (1 MHz) | DIN EN IEC 62631-2-1 | 0,015 | |
| Electric strength | IEC 60243-1 | kV / mm | 25 |
